Sete Orthopedic Implants
Sete Orthopedic Implants
| Certification | ISO9001 |
|---|---|
| Type | Shoulder |
| Material | Malleable Iron |
| Surface | Plain Oiled |
| Application | Concrete Sleeper |
| Processing | Casting |
| Hardness | 130-230 |
| Tensile Strength | 500-400MPa |
| Metallographic Organization | Graphite + Ferrite + Pearlite |
| Transport Package | Carton Packing |
| Trademark | XRD |
| HS Code | 8431499000 |
| Production Capacity | 10,000,000 |

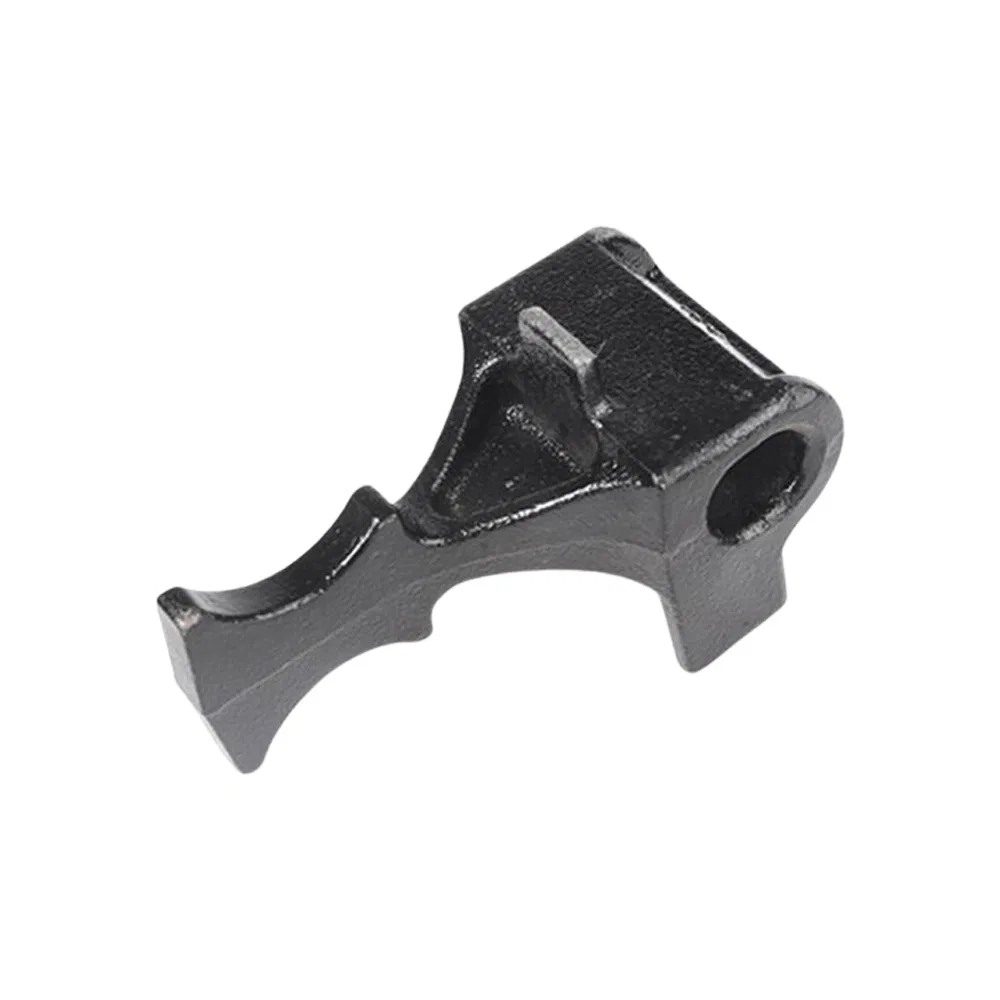

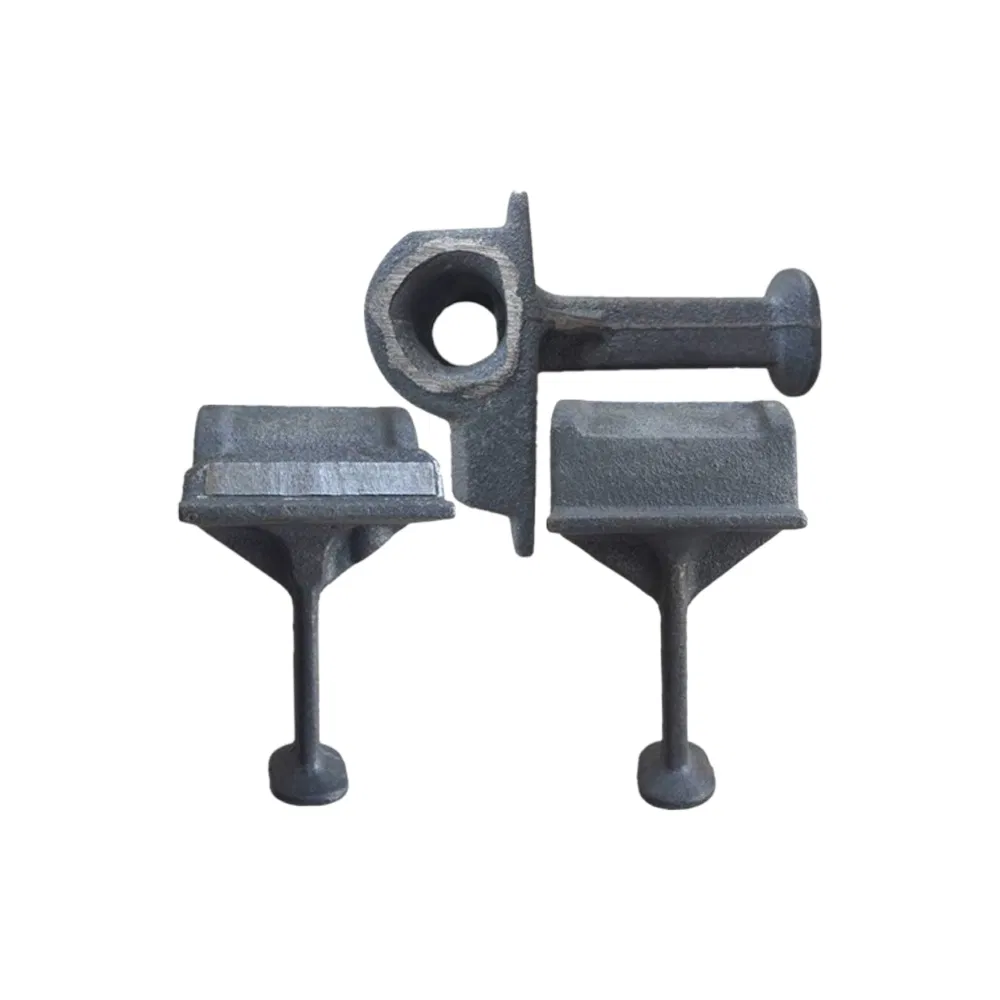

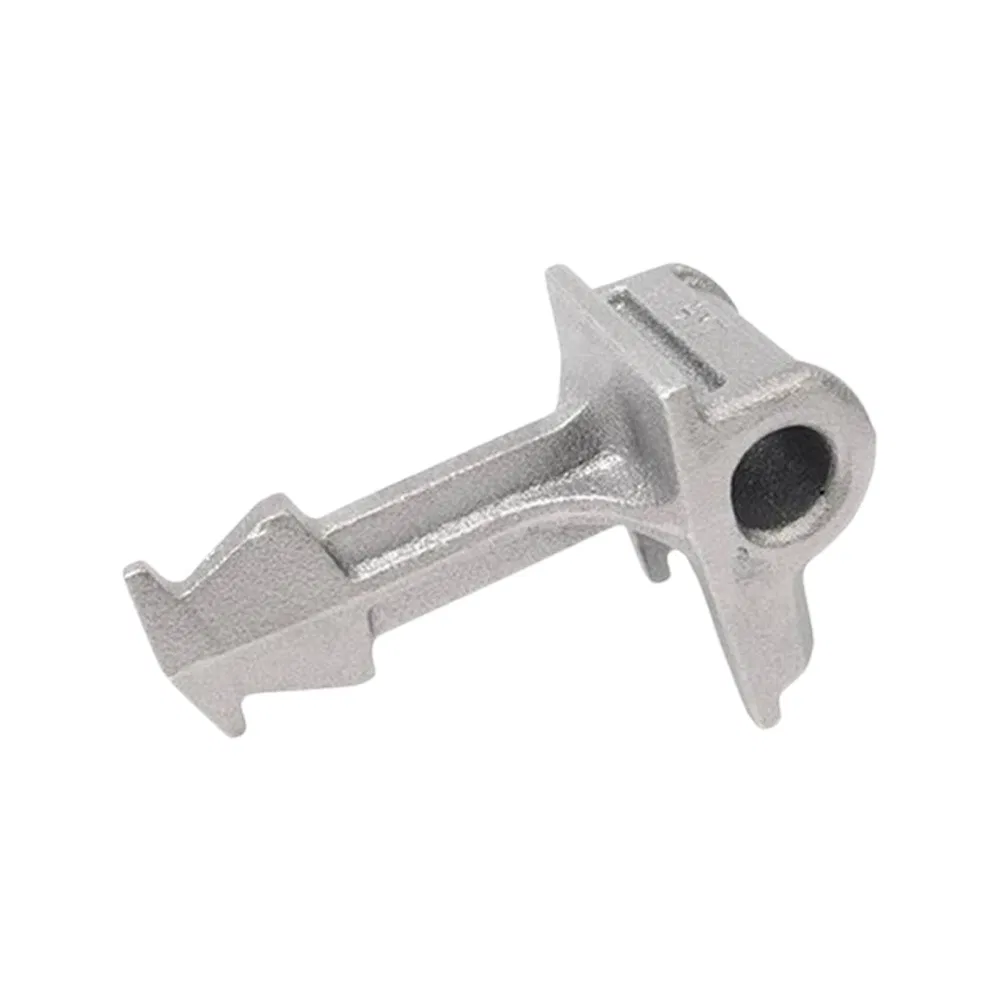

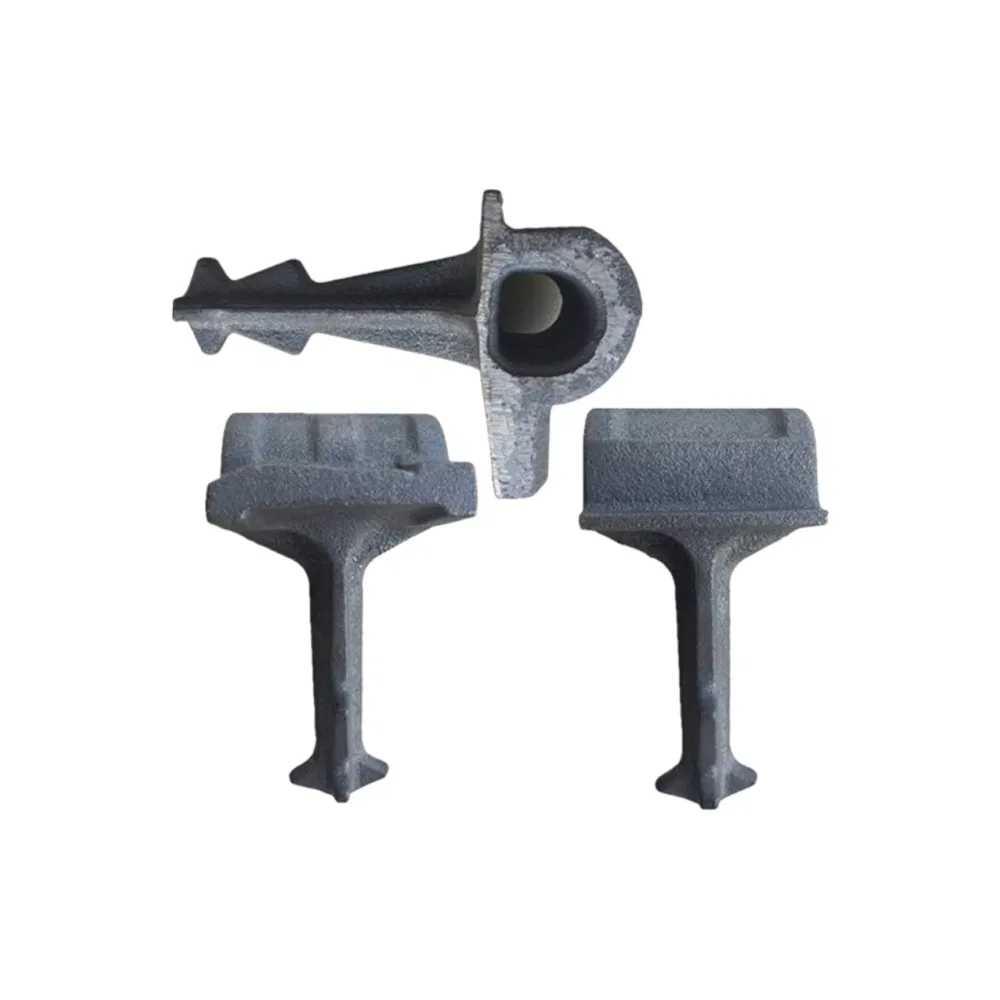

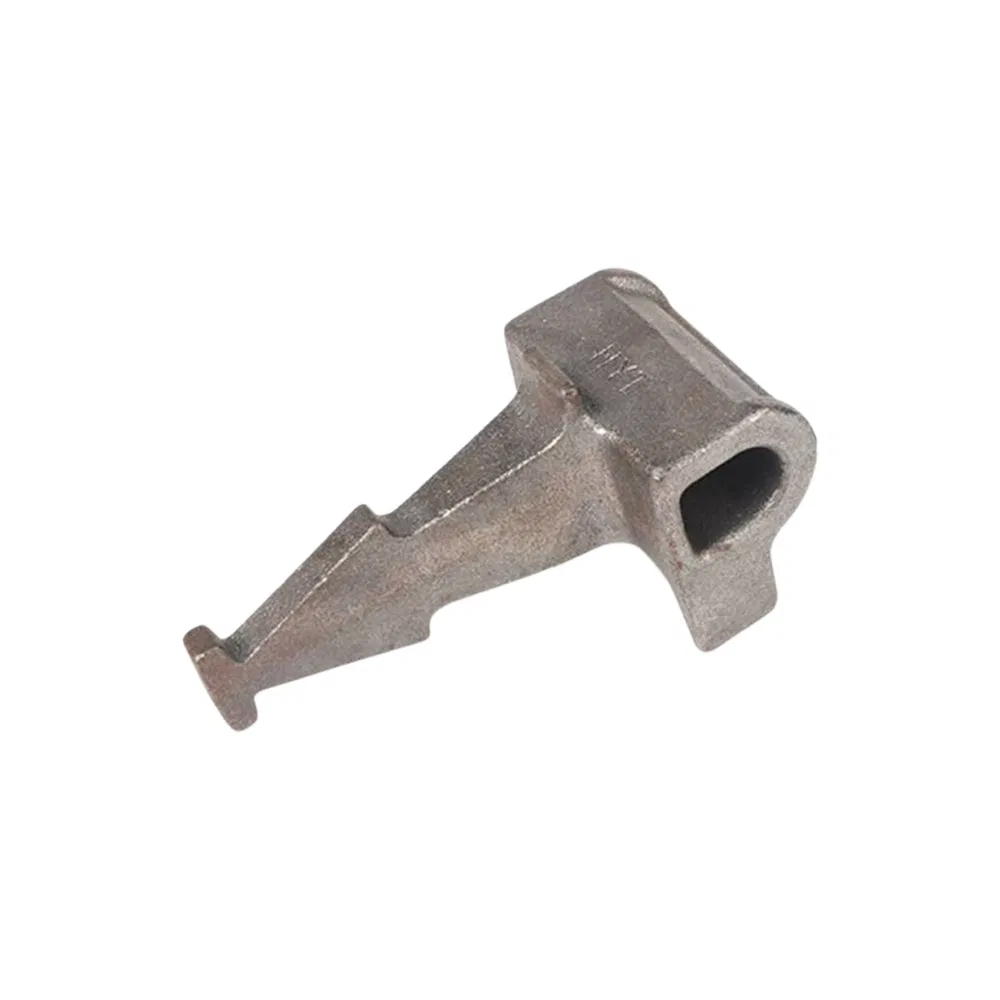

Rail shoulder is cast in the concrete rail ties to fix the elastic rail clips. There are two types of rail shoulders available, the cast-in shoulder and the weld-on rail shoulder, both of which are used for the fixing of elastic rail clips.
| Standard | GB 1348-88 | GB 1348-88 | GB 1348-89 |
|---|---|---|---|
| Chemical Composition (%) | C:3.60-3.80 Si:2.50-2.90 P:≤0.08 S:≤0.025 |
C:3.40-3.90 Mn:0.2-0.5 Si:2.70-3.00 P:≤0.07 S:≤0.03 |
C:3.50-3.60 Mn:≤0.5 Si:3.0-3.2 P:≤0.07 S:≤0.02 |
| Tensile Strength | ≥500 Mpa | ≥450 Mpa | >400 Mpa |
| Yield Strength | ≥320 Mpa | ≥310 Mpa | ≥250 Mpa |
| Elongation (%) | ≥7 | ≥10 | ≥15 |
| Hardness | 170~230HB | 160-210HB | 130~180HB |
| Organization | Ferrite + Pearlite | Graphite + Ferrite + Pearlite | Ferrite |
1. High-Quality Materials: The Rail Shoulder is manufactured from high-grade materials such as QT500-7 and QT450-10, ensuring exceptional strength and durability. Ideal for demanding railway applications.
2. Versatile Applications: Available in both cast-in and weld-on versions, compatible with UIC54, UIC60, and various weight classes like 50kg and 60kg rails.
3. Advanced Manufacturing: Precise engineering through hot forging and advanced casting ensures robust construction and consistent mechanical properties.
Key factors include Compatibility with existing track systems, adherence to International Quality Standards, Durability under specific environmental loads, and overall Cost-effectiveness.
Quality is ensured through rigorous testing procedures, sourcing from certified manufacturers, and full compliance with industry standards like GB 1348 to guarantee performance and safety.
Yes, we offer tailored OEM and ODM solutions. Our technical team can work based on your specific engineering requirements to provide customized rail shoulder designs.
Yes, comprehensive technical support and after-sales services are provided, including assistance with installation, maintenance, and troubleshooting for optimal product performance.
Yes, we provide international shipping to a wide range of global destinations. Arrangements and costs are determined based on the destination and specific order volume.
