Basic Specifications
Model NO.
External Fixation
Certification
CE, ISO13485
Material Type
Titanium Alloy & Stainless Steel
Capacity
500,000 Pieces/Year

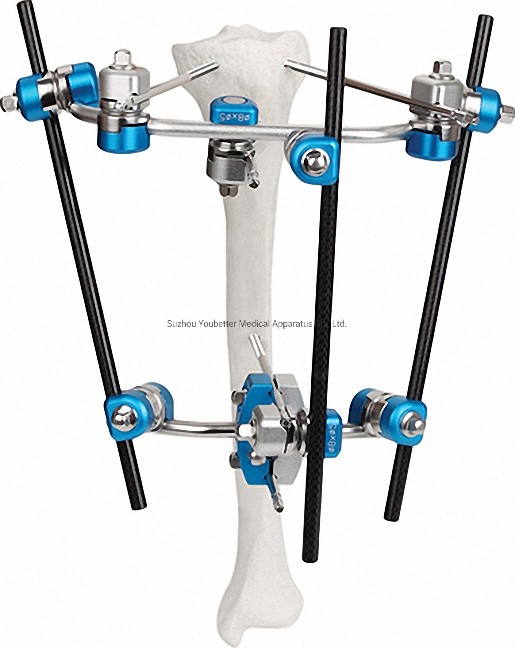

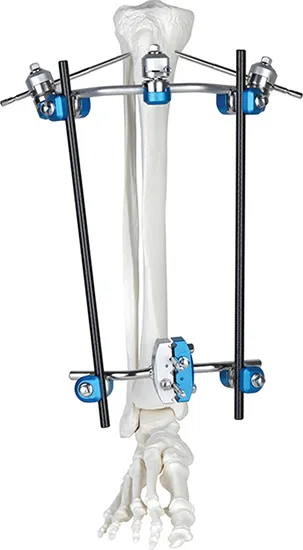

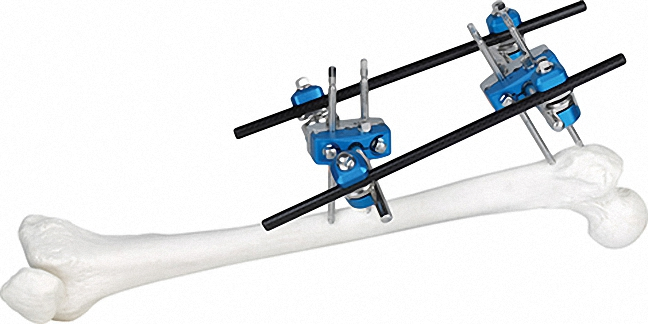

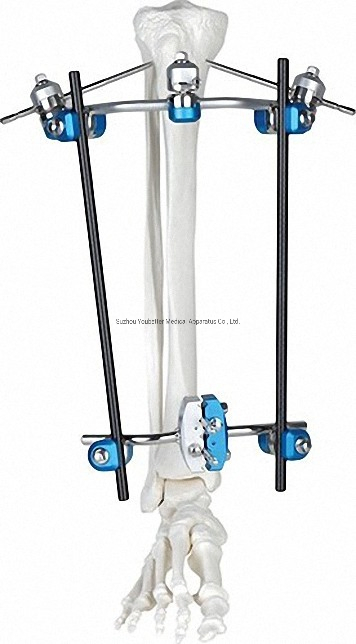

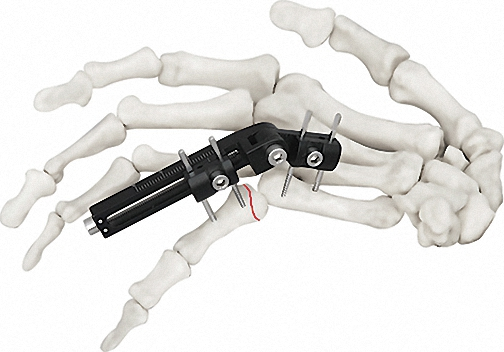

External Fixator - Modular Fixation Systems
Product Key Features
- Revolutionary technology with an intuitive, user-friendly interface.
- Independent customization of bone screws for proximal and distal fractures.
- Snap-fit design for streamlined and time-efficient surgical procedures.
- Premium Medical aluminum and carbon fiber for enhanced fracture visibility.
- Unmatched stability and flexibility for a wide range of medical requirements.
- Compact, space-saving frame for easy usability and transport.
- Designed for complex fractures and soft tissue loss management.
- Straightforward, effective, and dependable performance.

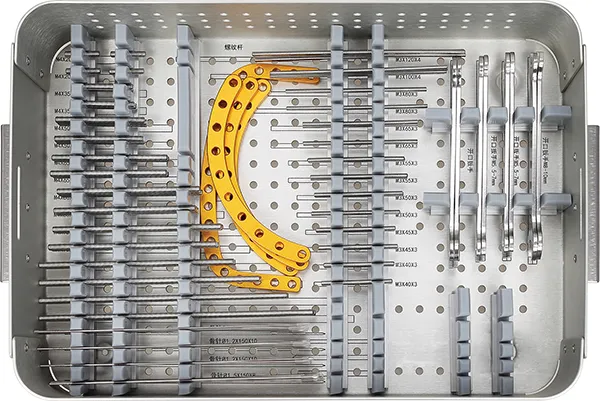

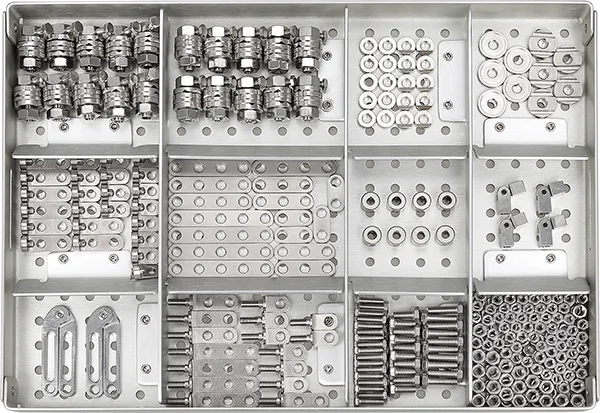

Technical Components & Parameters
| Component Name |
Specification |
Qty |
| Independent Coupling | φ6*φ14(1.5-2.0) | 10 |
| Needle Clip | φ4*φ9 (φ1.0) | 5 |
| Cone Washer | φ4*φ9 | 10 |
| Double Groove Needle Clamp | φ4*φ14(2.0-2.5) | 5 |
| Post With Threaded Post | φ4*25(2 Hole)*M4 | 8 |
| Connection Plate | φ4*50 (5 Hole) | 4 |
| Straight Connection Plate | φ4 | 4 |
| Fixator (Hinge) | M4*20mm | 4 |
| Bone Screws | 1.0*150 / 1.2*150 | 20 |
| Hex Nut | M3 / M4 | 90 |
| U Ring | 21 Hole φ4*110 L | 1 |
Specialized Fixation Solutions

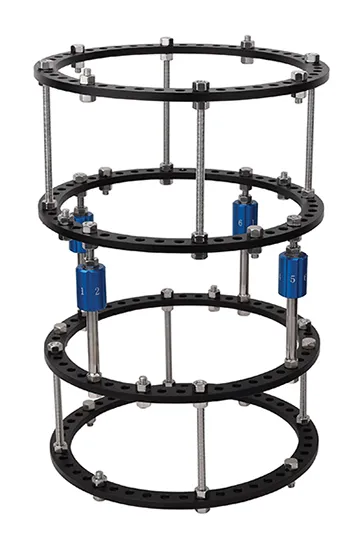

Lower Limbs Lengthening (Tibia Femur)

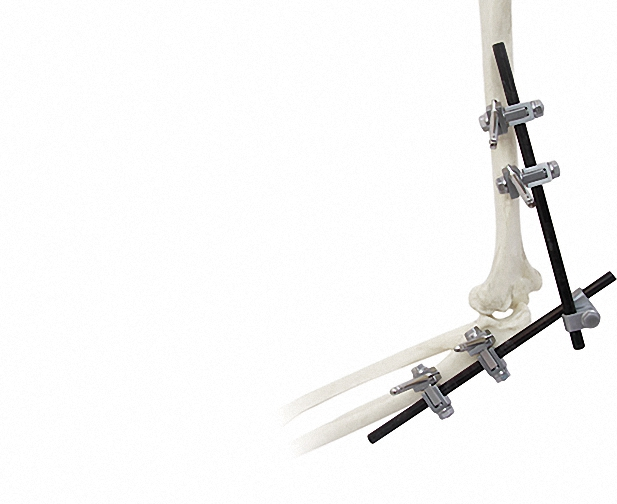

Humeral & Tibial Lateral Epicondyle

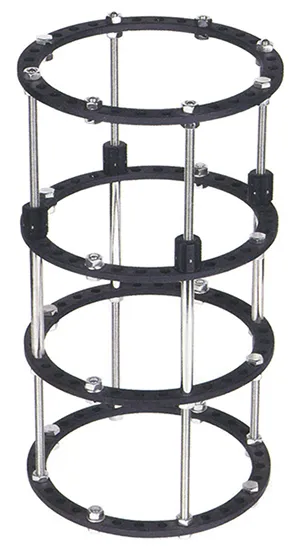

Ring Fixator for Tibia Femur

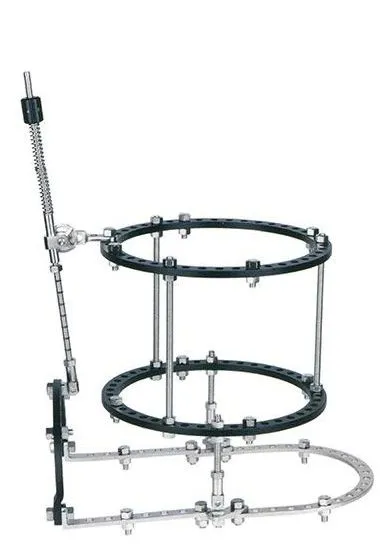

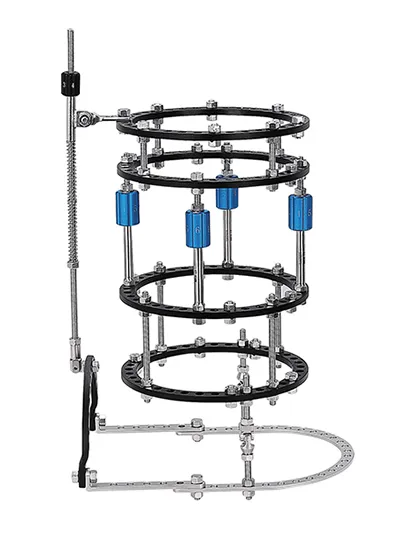

Ankle Joint Fixator (Equinus)

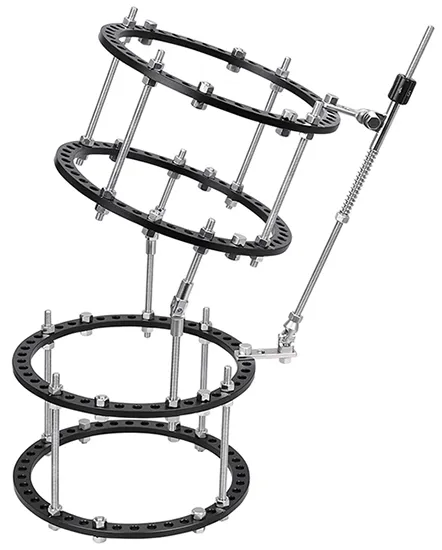

Knee Joint Fixator System

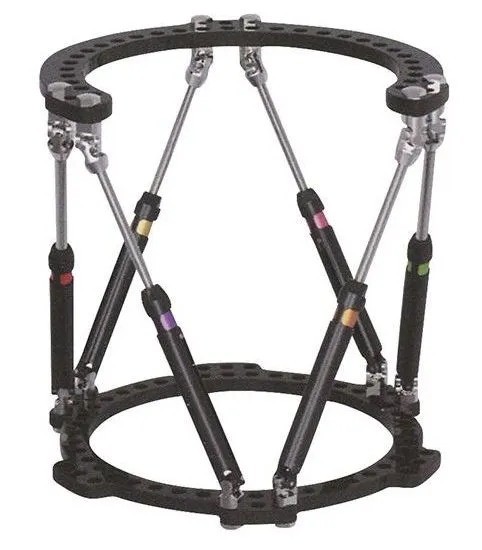

Standard Ring Fixator
Frequently Asked Questions
What are the primary materials used in these external fixators?
Our external fixators are constructed using high-grade Titanium Alloy, Stainless Steel, Medical Aluminum, and Carbon Fiber to ensure maximum stability and radiolucency.
Is the external fixation system reusable?
Yes, the system is designed to be reusable, provided it undergoes proper sterilization and maintenance according to medical standards.
How does the snap-fit design benefit the surgical process?
The snap-fit design allows for rapid assembly and adjustment during surgery, significantly reducing operative time and improving overall surgical efficiency.
Can this system handle complex distal fractures?
Absolutely. The modular design allows for independent customization of bone screws, making it highly effective for both proximal and distal complex fractures.
Does the system provide clear visibility under X-ray?
Yes, by utilizing carbon fiber and premium medical aluminum, the frame minimizes X-ray interference, allowing surgeons to monitor fracture healing with high precision.
What is the production capacity for these medical devices?
We maintain a high production capacity of approximately 500,000 pieces per year to meet global orthopedic medical demands.
