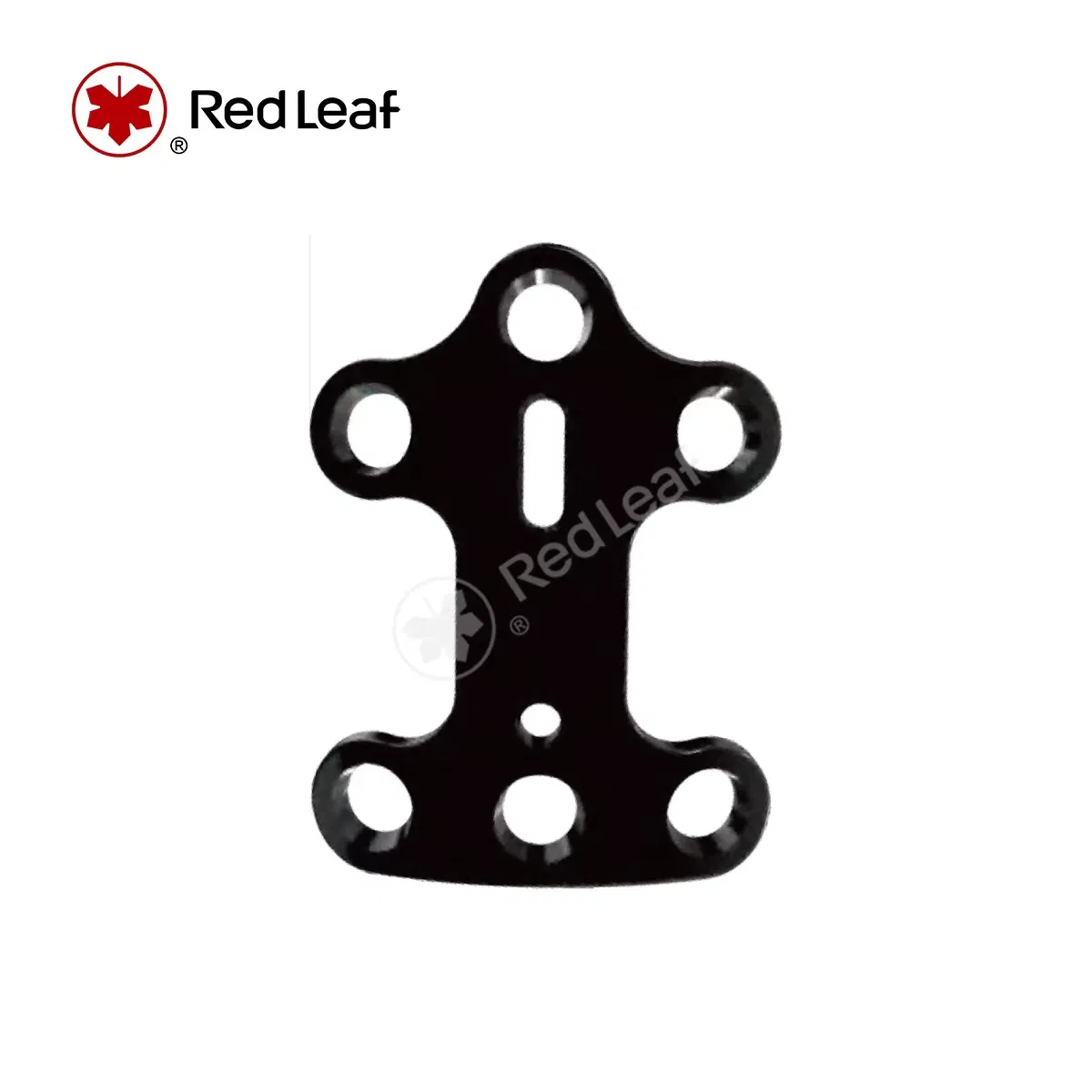

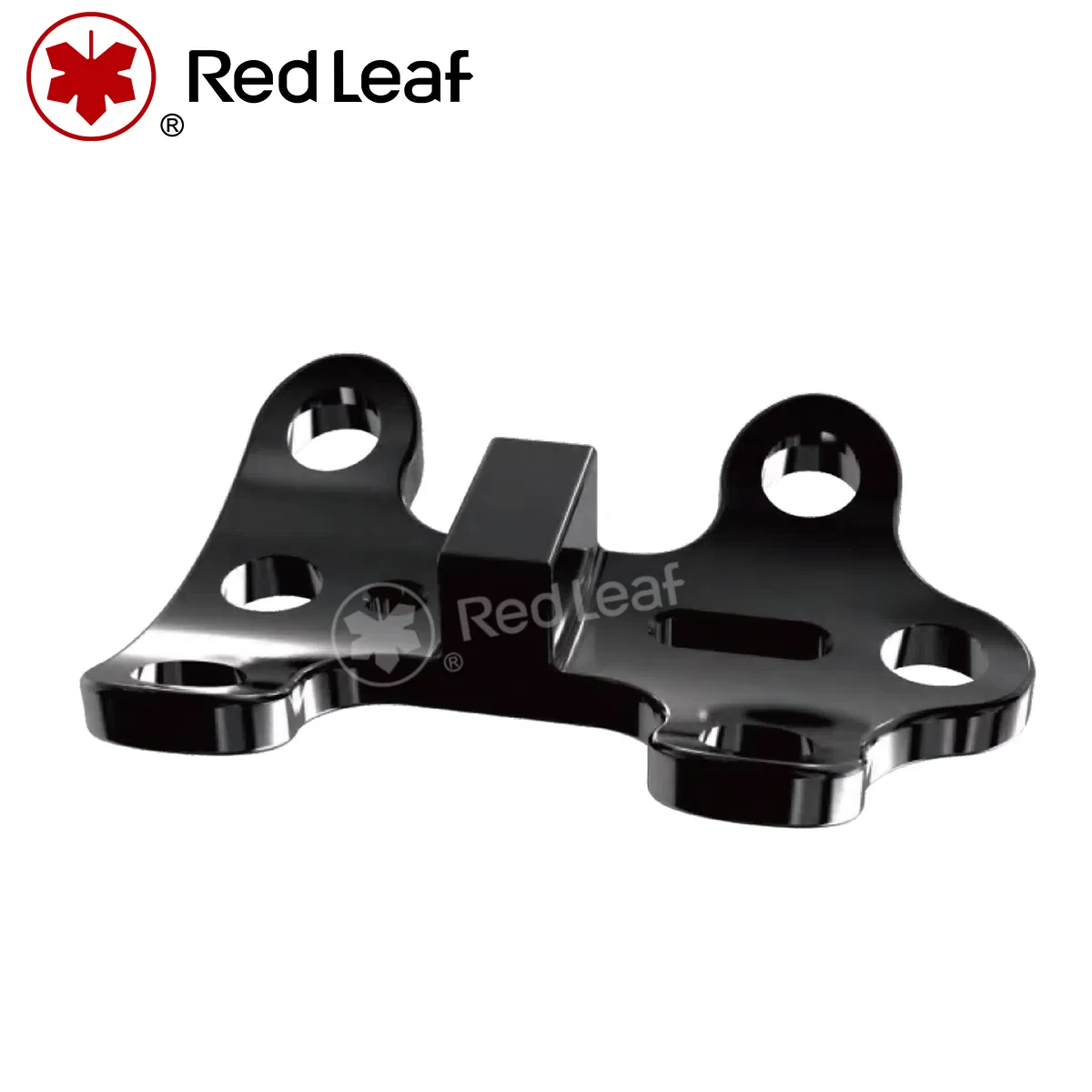

Sete Orthopedic Implants
Sete Orthopedic Implants

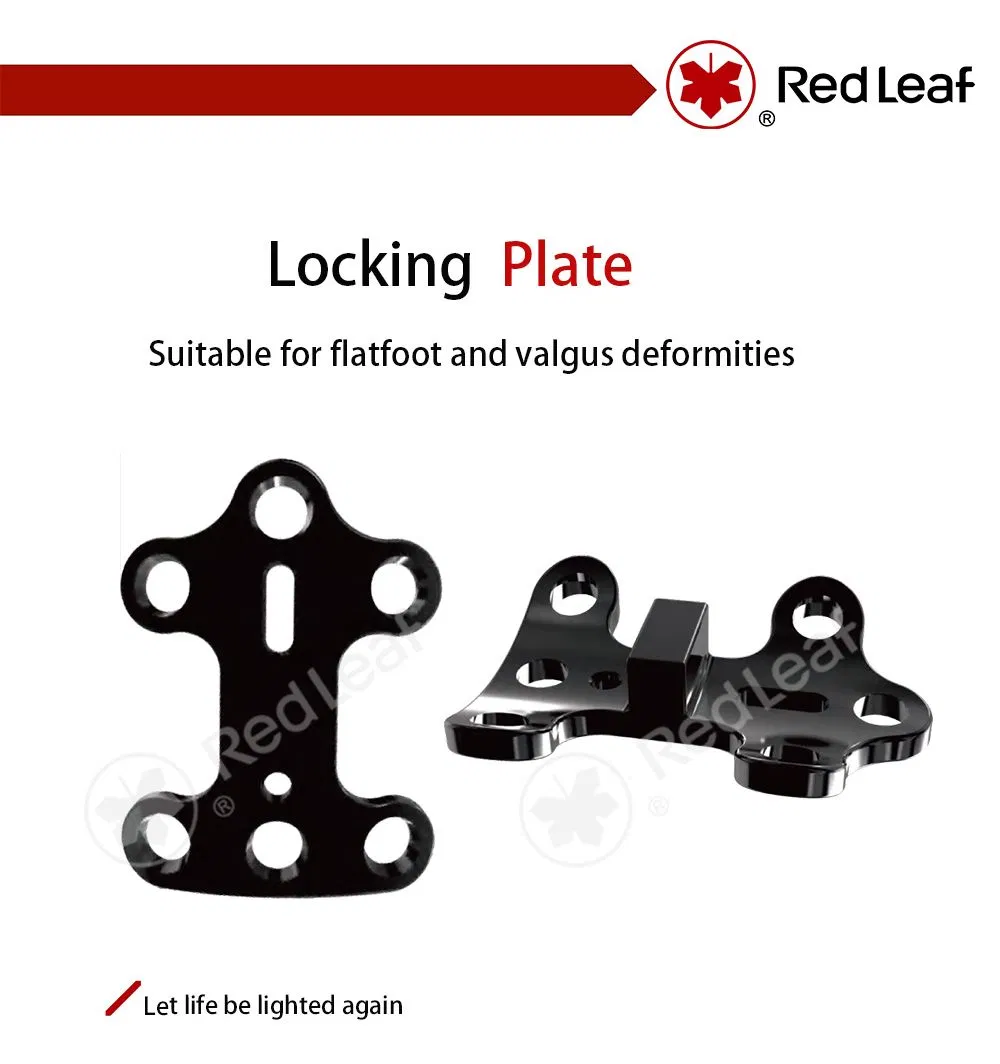

· Suitable for flatfoot and valgus deformities

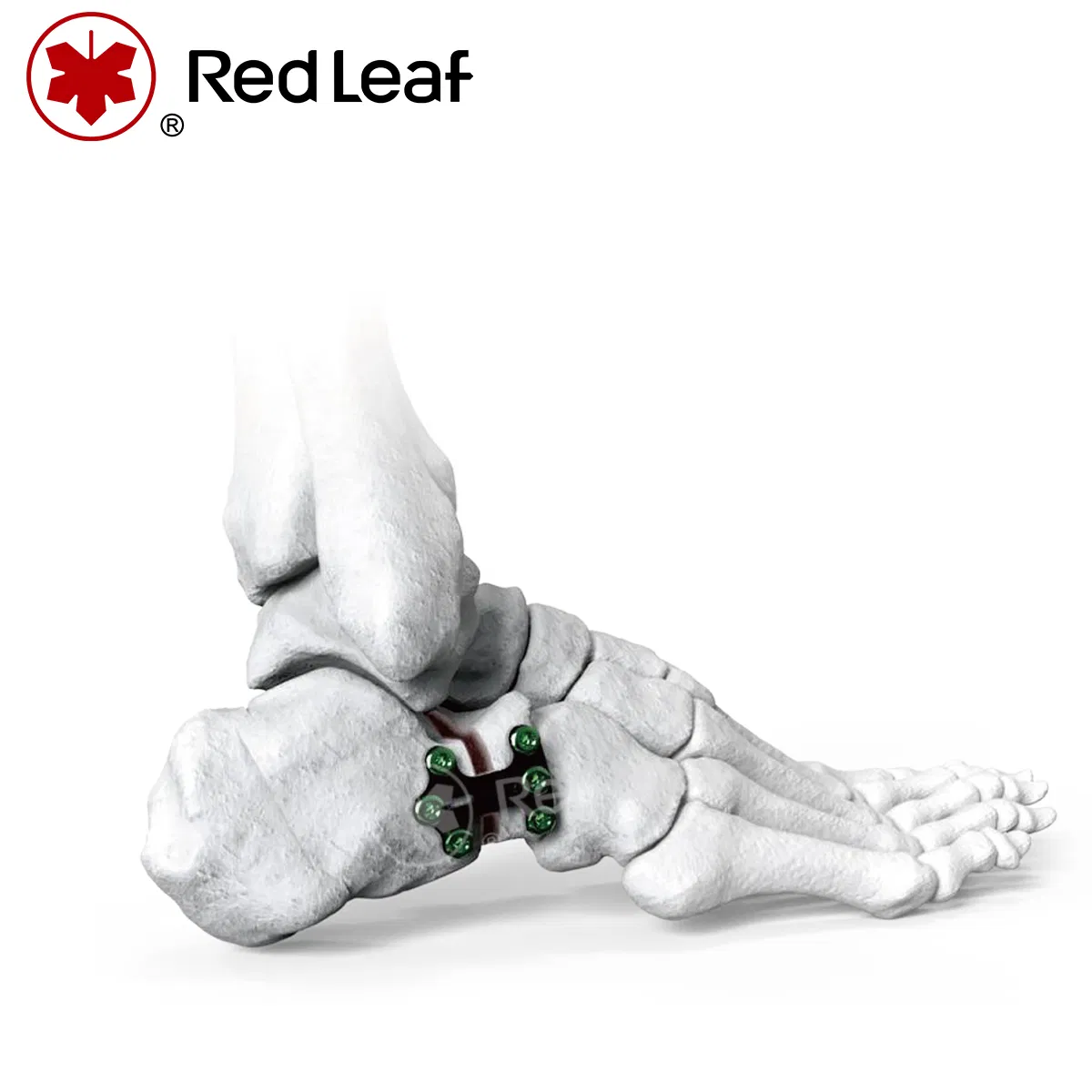

· Transverse osteotomy of calcaneal neck
· The distance between the osteotomy surface and the calcaneocuboid joint surface is 10-15mm
· Transverse osteotomy of the calcaneal neck, with the osteotomy surface 10-15mm away from the calcaneocuboid joint surface;
· After cutting the inner cortex with a swing saw, slow down the cutting speed to avoid damaging the inner soft tissue;
· Evenly spread, with parallel openings, considering bone ingrowth and preventing bone non-union
· Matching screw: 3.5 self-tapping locking screw
· Length: 6-40mm, one specification per 2mm
· Kirschner wire: 1.9mm
· Material: TC4 titanium alloy
| Specifications | Length (mm) | Width (mm) | Thickness (mm) | Step Width | Cushion Block Height |
|---|---|---|---|---|---|
| Big | 36.0 | 23.0 | 2.0 | 6/8/10 | 6/8/10 |
| Middle | 30.0 | 23.0 | 2.0 | 4/6/8 | 4/6/8 |
| Small | 26.0 | 23.0 | 2.0 | 2/4/6 | 2/4/6 |
