Rail Shoulder, Casting Shoulder and Weld-on Shoulder

1 / 1

Rail Shoulder, Casting Shoulder and Weld-on Shoulder

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info.

Model NO.

BS EN 1563

Type

Shoulder

Materials

Qt500

Transport Package

Pallet

Specification

Railway Standard

Origin

China

HS Code

730240

Production Capacity

500000 Pieces/Year

Product Description

A rail shoulder is a pre-inserted item in the concrete sleepers, no matter for single stem type or twin stem type, used to fix the elastic rail clips, mainly e-clips, within the fastening system.

We are capable of producing two types of rail shoulders for rail clips: cast in shoulder and weld-on shoulder.

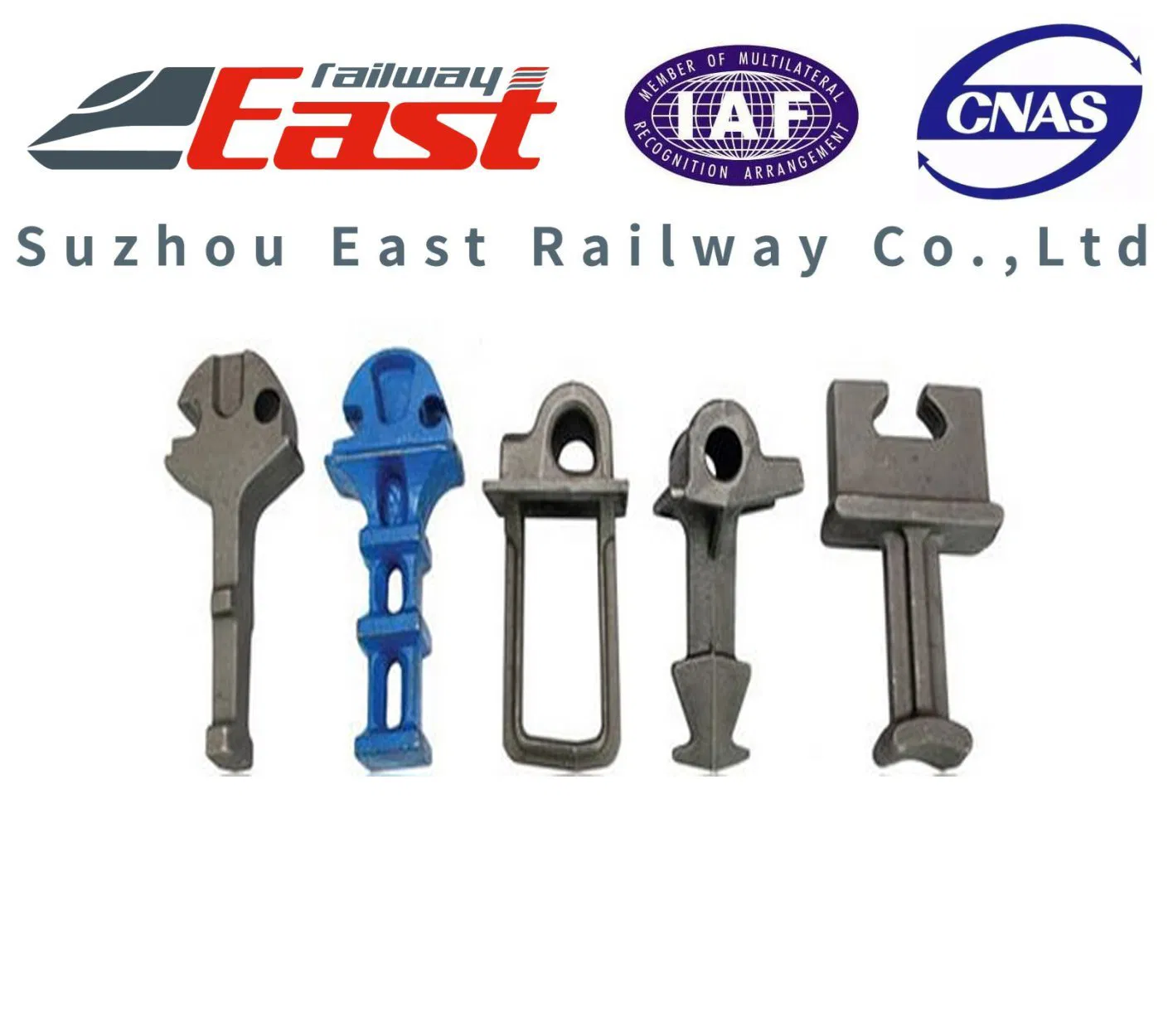

Casting Rail Shoulders

Cast in Shoulder is made by casting from iron, and such shoulder is used by being pre-embedded in the concrete sleepers and works with the elastic clip to fasten the rail.

For materials, cast in shoulder includes 3 types: M.C.I. shoulder by malleable iron and S.G.C.I. shoulder by malleable iron and S.G.C.I. shoulder by spheroid graphite iron.

Other materials available: QT600-3, QT700-2, ZG25, ZG35, ZG45 and so on.

Standard: GB/T 1348-1988, NF EN 1563(1997), ISO1038, DIN 1693, JIS G5502 (2001), KS D 4302, GOST 7293(1985) or BS EN 1563(1997).

Weld-on Shoulder

Weld-on shoulder is made by hot forging, and such shoulder is used for places where standard sleepers are unable to be easily used so the shoulders need to be welded on the flat steel base plates. In this way, it can fabricates the rail retaining units on both the steel ties and base plates, according to AREMA standard always.

Weld-on shoulders can be applied for Pandrol style clips with a range of 30lbs to 113lbs.

Special Rail Shoulder

Such kind of shoulder can be produced by hot forging as well, to be used together with rail clip bolts and special rail clips to fasten the rail, with material of low or mid carbon steels.

Overview

Freight wagons need to replace a large number of spare parts during long-term operation. As a specialist railway supplier, we can supply most of the spare parts needed for a freight wagon.

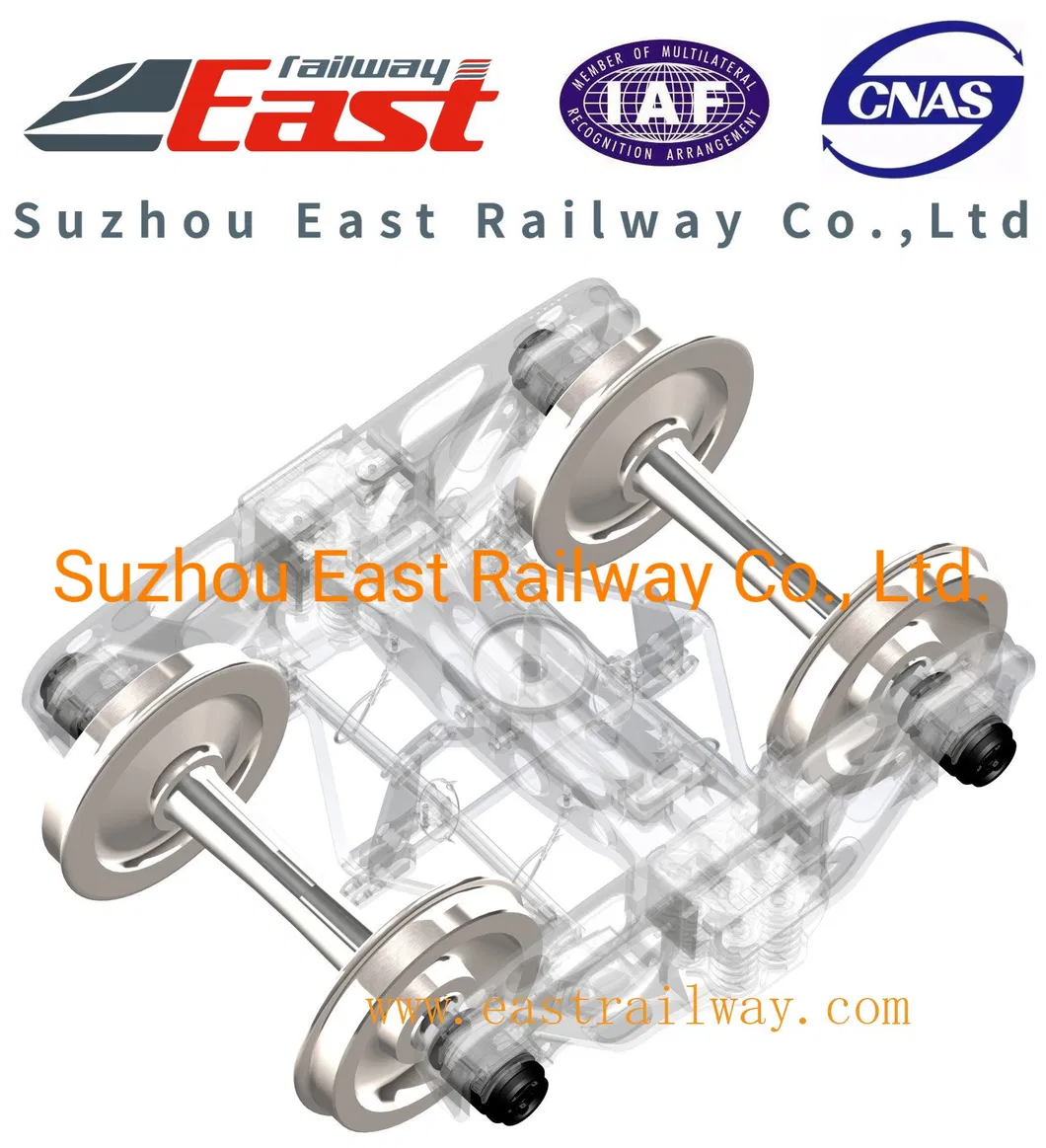

Freight Wagon Composition
Module	Parts
Bogie	Side frame
	Bolster
	Center plate
	Wedge
	Adapter
	Stopper key
	Wearing plate
	Fastener
Air brake system	-
Draft gear system	Coupler
	Knuckle
	Yoke
	Draft gear
	Draft key
	Striker
	Control rod
Car body	-
Accessories	Parts

Technical Description

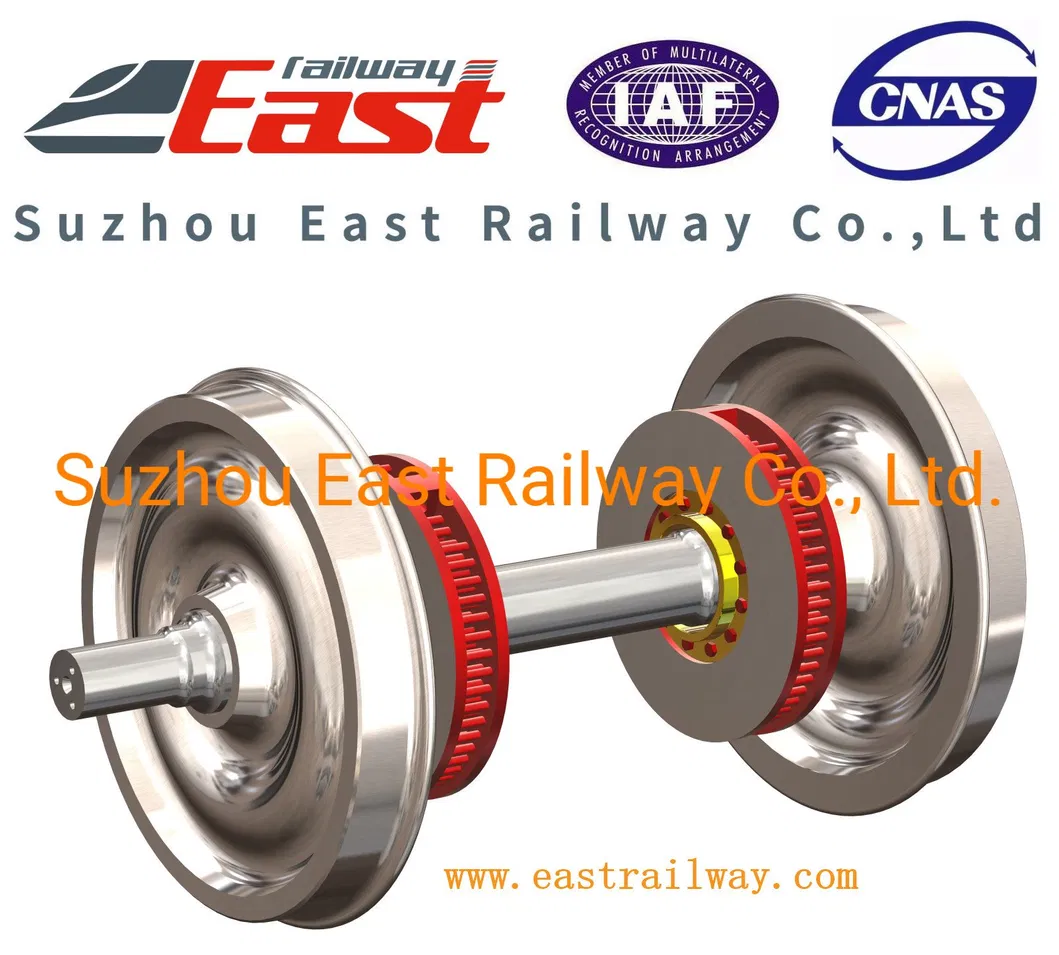

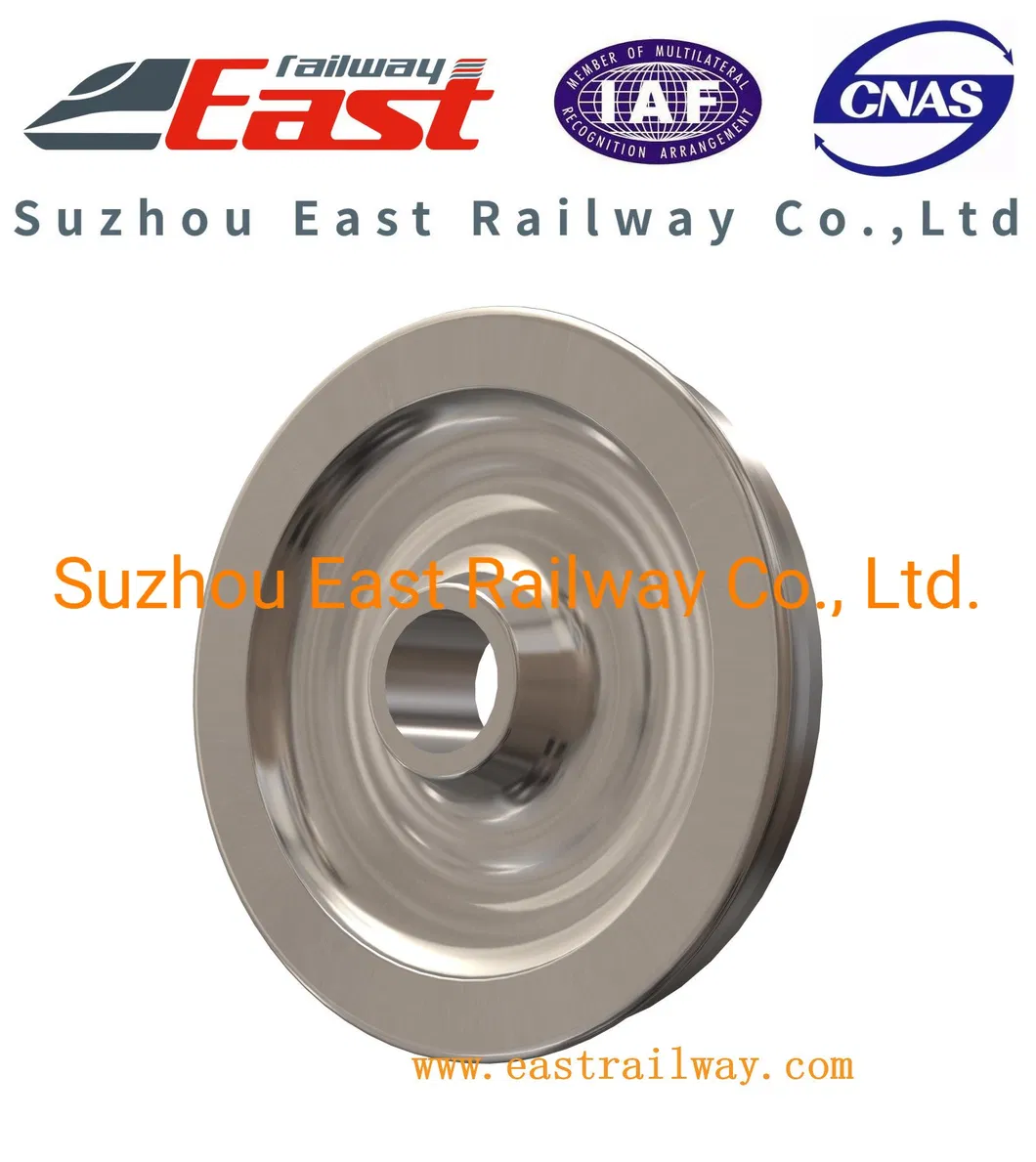

The wheel set is key component of the Railway Bogie. It is also the most common and important spare part in railway industry.

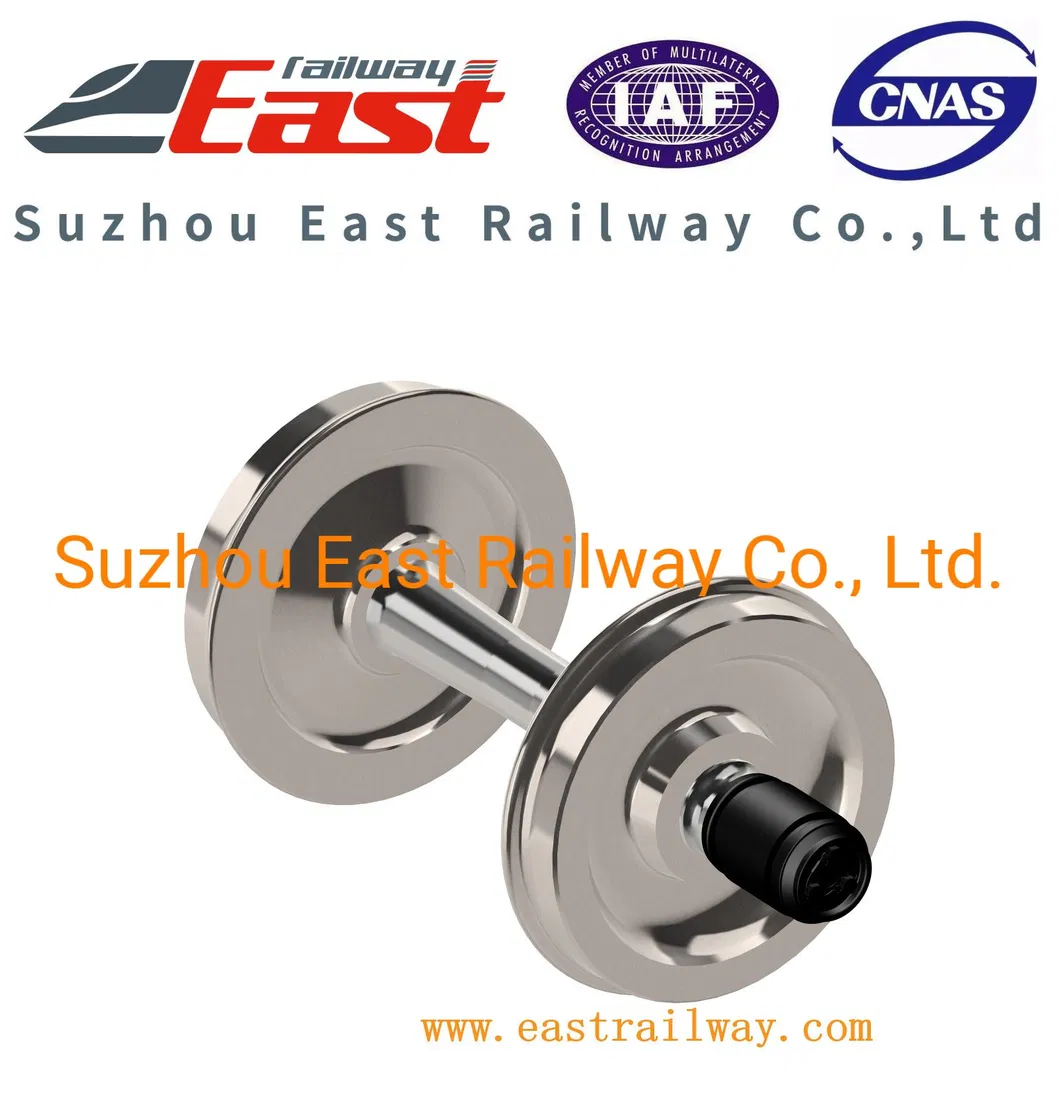

One-wheel set contains two wheels, one axle, and two bearings. Depend on different application methods other special parts including gears, brake discs, axle box etc.

They could be used on wagon, locomotive, passenger car and more. The wheel has a cast wheel or a forged wheel, the axle and bearings can be chose to the customer requirements. Vehicle and bogie performance parameters will define what wheel set configuration is required.

Relative Standards

TB/T 1718 Technical requirement of railway vehicle's wheelset installation
UIC 813 Technical specification for the supply of wheelsets for tractive and trailing stock-Tolerances and assembly
BS 5892-6 Railway rolling stock materials - Specification for wheelsets for traction and trailing stock
EN 13260 Railway applications. Wheelsets and bogies. Wheelsets. Product requirements
JIS E4504 Wheelsets for railway rolling stock - Quality requirements

About Us

Established in 2019, our company was created to both supply and design components, complete passenger carriages, freight wagons and spare parts for the ever growing world railway market.
Our technical engineers, sales personnel and management team have many combined years of extensive experience in the Railway Industry with projects based all over the world.
Our goals is to meet all of the Customers' requirements, bringing them the best products, Project management, Maintenance, System Design and Integration at the best price possible without any problems or delays.
We offer a large inventory of products from the best Manufactures in China and other world leaders in railway product manufacture.
Global shipping and project requirements with time sensitive deliveries and savings is our main aim.

Service

Frequently Asked Questions

What is the main function of a rail shoulder?

A rail shoulder is pre-embedded in concrete sleepers or welded onto base plates to securely fix elastic rail clips (such as e-clips) within the railway fastening system.

What are the different types of rail shoulders available?

We offer three main types: Cast-in shoulders (embedded in concrete), Weld-on shoulders (for flat steel base plates), and Special shoulders (used with rail clip bolts).

Which materials are used for casting rail shoulders?

Common materials include Malleable Cast Iron (M.C.I.), Spheroid Graphite Cast Iron (S.G.C.I.), and specific grades like QT600-3, QT700-2, ZG25, and ZG45.

What standards do your rail shoulders comply with?

Our products meet various international standards including GB/T 1348, NF EN 1563, ISO1038, DIN 1693, JIS G5502, and BS EN 1563.

When should a weld-on shoulder be used?

Weld-on shoulders are ideal for locations where standard concrete sleepers cannot be easily used, requiring the shoulder to be welded directly onto flat steel base plates.

What are the components of a standard railway wheel set?

A standard wheel set consists of two wheels, one axle, and two bearings. It may also include gears or brake discs depending on the specific application.
