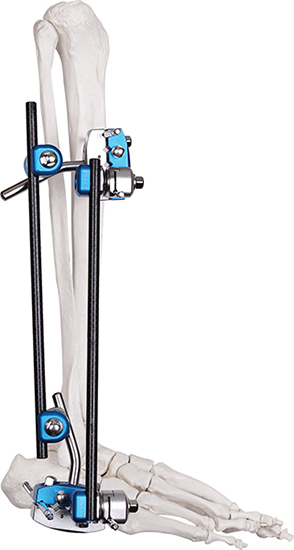

Titanium Alloy Femur Fixator for Bone Alignment

1 / 5

Titanium Alloy Femur Fixator for Bone Alignment

Customization:	Available
Application:	Orthopedic, Neurosurgery, Microsurgery
Material:	Steel

Send Inquiry

Product Description

Basic Specifications

Model NO.

External Fixation

Feature

Reusable

Certification

CE, ISO13485

Color

White & Black

Usage

Bone Fixation

Material Type

Titanium Alloy & Stainless Steel

Name

External Fixator

Transport Package

Box

Specification

50*50*50CM

Origin

China

HS Code

90211000

Production Capacity

500,000 Pieces/Year

Product Description

External Fixator-- Modular Fixation External Fixation System

Product Features

Distinguished by cutting-edge technology and user-friendly operation.
Allows independent arrangement of bone screws for both proximal and distal fractures.
Incorporates snap-fit design for streamlined, time-efficient procedures.
Enhances fracture visualization using premium Medical aluminum carbon fiber.
Delivers optimal stability and flexibility.
Engineered for a compact frame.
Designed to address complex fractures and soft tissue loss, balancing variety and convenience.
Ensures straightforward and effective use.

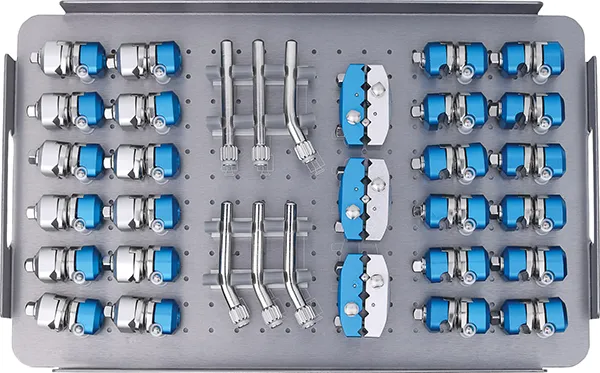

Component Name	Specification	Quantity
Pin To Rod Coupling	φ8/4-5	12
Rod To Rod Coupling	φ8/8	12
5-Hole Pin Clamp	φ8/5	3
Straight Post	φ8	2
30° Post	φ8	4
Self Drilling/Self Tapping Bone Screws	φ5*180 / 150 / 130 / 120	20 Total
Guides	φ4/5	1
Carbon Fibre Rod	φ8*350 / 300 / 250 / 200	12 Total
Semi-Circular Curved Connecting Rod	φ8*160 / 200	2

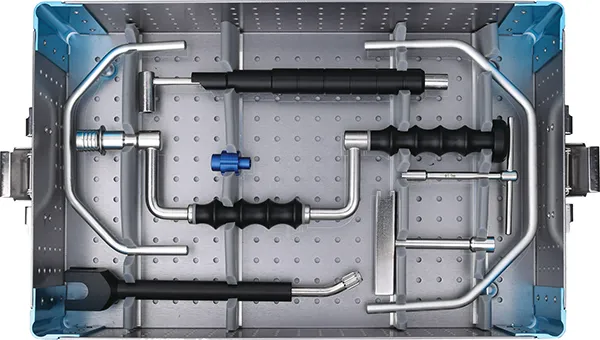

Instrument Set (Wrenches, Drill, Driver)	Various	1 Set

Clinical Applications

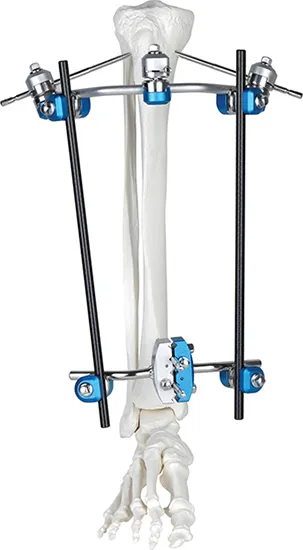

Proximal Tibia External Fixator
Rod to Rod Coupling φ8/8	4 Pcs
Pin To Rod Coupling φ8/4-5	3 Pcs
5-Hole Pin Clamp φ8/5	1 Pc
30° Post φ8	2 Pcs
Self Drilling/Self Tapping Bone Screws	5 Pcs

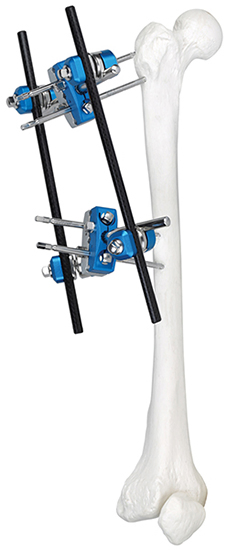

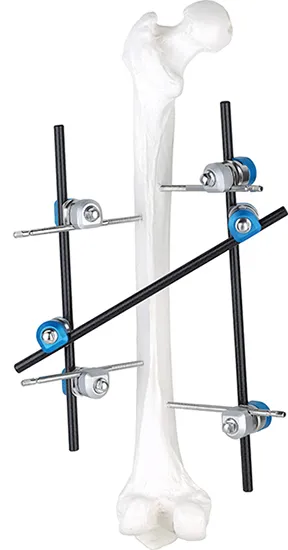

Femoral Shaft Fixator
Rod To Rod Coupling φ8/8	2 Pcs
Pin To Rod Coupling φ8/4-5	4 Pcs
Carbon Fibre Rods	3 Pcs
Bone Screws 5*150mm	4 Pcs

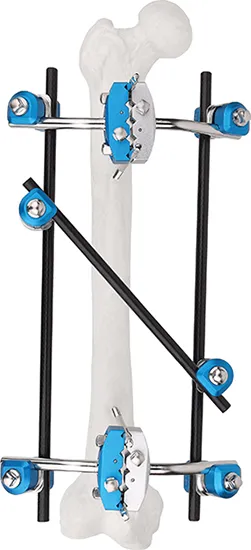

Half Ring Fixator (Standard) - Tibia Perone
Rod To Rod Coupling φ8/8	6 Pcs
5-Hole Pin Clamp φ8/5	2 Pcs
30° Post φ8	4 Pcs
Bone Screws 5*150mm	4 Pcs

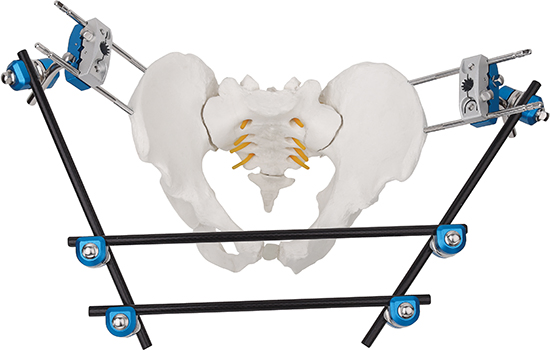

Pelvic Fixator
Rod To Rod Coupling	6 Pcs
5-Hole Pin Clamp	2 Pcs
Carbon Fibre Rods	4 Pcs
Used For	Pelvic Fractures

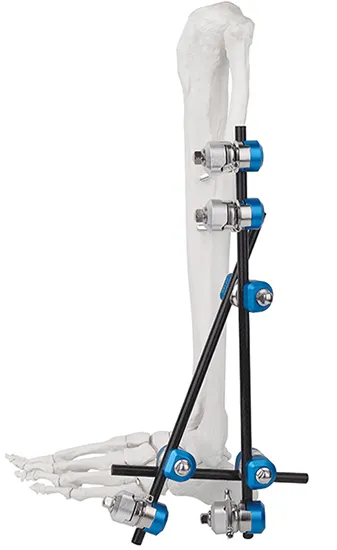

Ankle Joint Fixator
Rod To Rod Coupling φ8/8	3 Pcs
Pin To Rod Coupling φ8/4-5	4 Pcs
Bone Screws 5150mm / 4130mm	4 Pcs

Frequently Asked Questions

What materials are used in the External Fixator system?

The system is constructed from high-grade Titanium Alloy and Stainless Steel, with rods made from premium Medical aluminum carbon fiber for optimal radiolucency and strength.

Is this fixation system reusable?

Yes, the external fixation frame components are designed to be reusable after proper sterilization, following standard medical protocols.

How does the snap-fit design benefit surgical procedures?

The snap-fit design allows for quick assembly and adjustment of the frame, significantly reducing the time required for surgical procedures and simplifying the workflow.

Can bone screws be placed independently?

Absolutely. The modular design allows for the independent arrangement of bone screws, providing surgeons with the flexibility to address complex fractures in both proximal and distal regions.

What certifications does the product hold?

The External Fixation system is fully certified with CE and ISO13485 standards, ensuring it meets international quality and safety requirements for medical devices.

Are the carbon fiber rods radiolucent?

Yes, the premium carbon fiber rods are designed to enhance fracture visualization under X-ray or fluoroscopy, allowing for better monitoring of the healing process.
