Product Description

⚙️ Product Overview

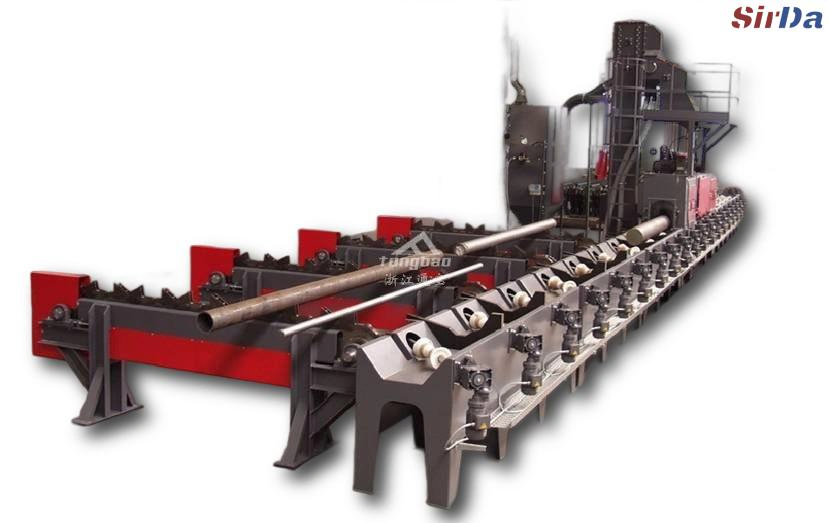

Q69 series roller conveyor type shot blasting machine is used to clean external surface of steel pipe, round bar, drilling rod etc. It can clean rust, oxide layers, paint film and intensify the surface.

Applications
  • Removing scale and rust from metal profiles and sheet metal components.
  • Surface treatment of H-beams, steel plates, profiles, angle steel, pipes, etc.
  • Sandblasting cleaning of complex welded structures (top/bottom plates, welded ribs).
  • Key sectors: Steel and shipbuilding, automotive, motorcycle, bridges, machinery.
Model NO.
Q69 Shot Blast Machine
Application
Steel Plate Pre-Treatment
Fuel
Electric
Cleanliness
High Cleanliness / SA 2.5
Automation
Automatic
Certification
CE, RoHS
Weight
5tons - 30tons
Core Components
PLC, Engine, Bearing, Gearbox, Motor
Material
Metal / Coil
Electric Parts
Siemens, Omron, Chint...
📋 Technical Specifications

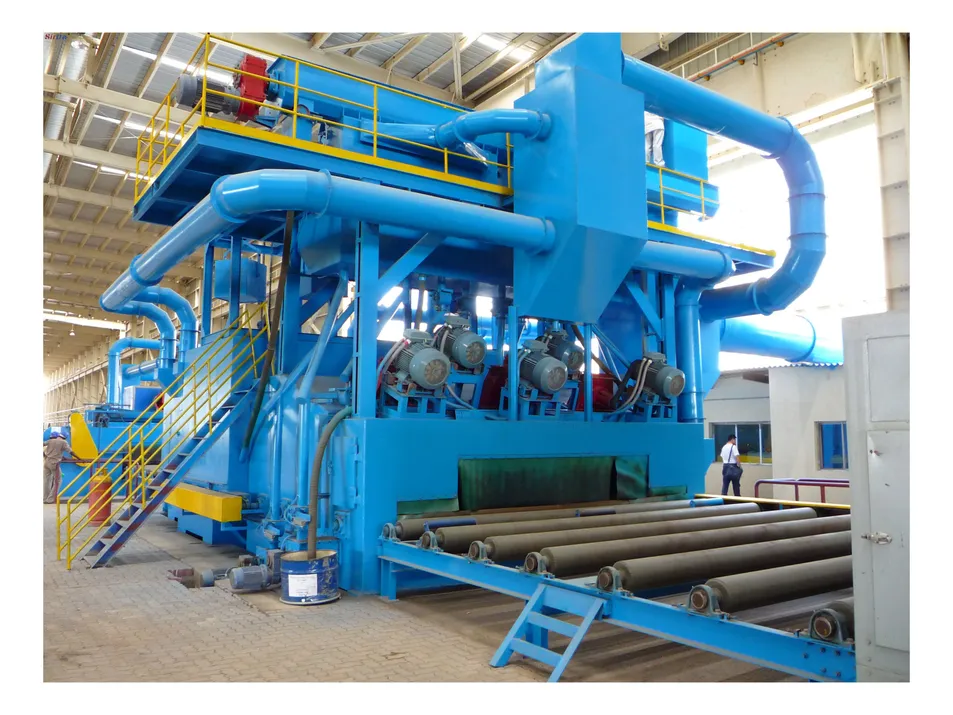

Shot Blast Cabinet & Roller System
Shot Blast Cabinet

Roller Conveyor Details:

  • Load Capacity: 2 tons/meter
  • Roller Spacing: 1 meter
  • Roller Speed: 0.5–4 meters/minute
  • Drive: Variable-speed reducer
  • Protection: Special alloy sleeves (Service life > 4,000 hours)

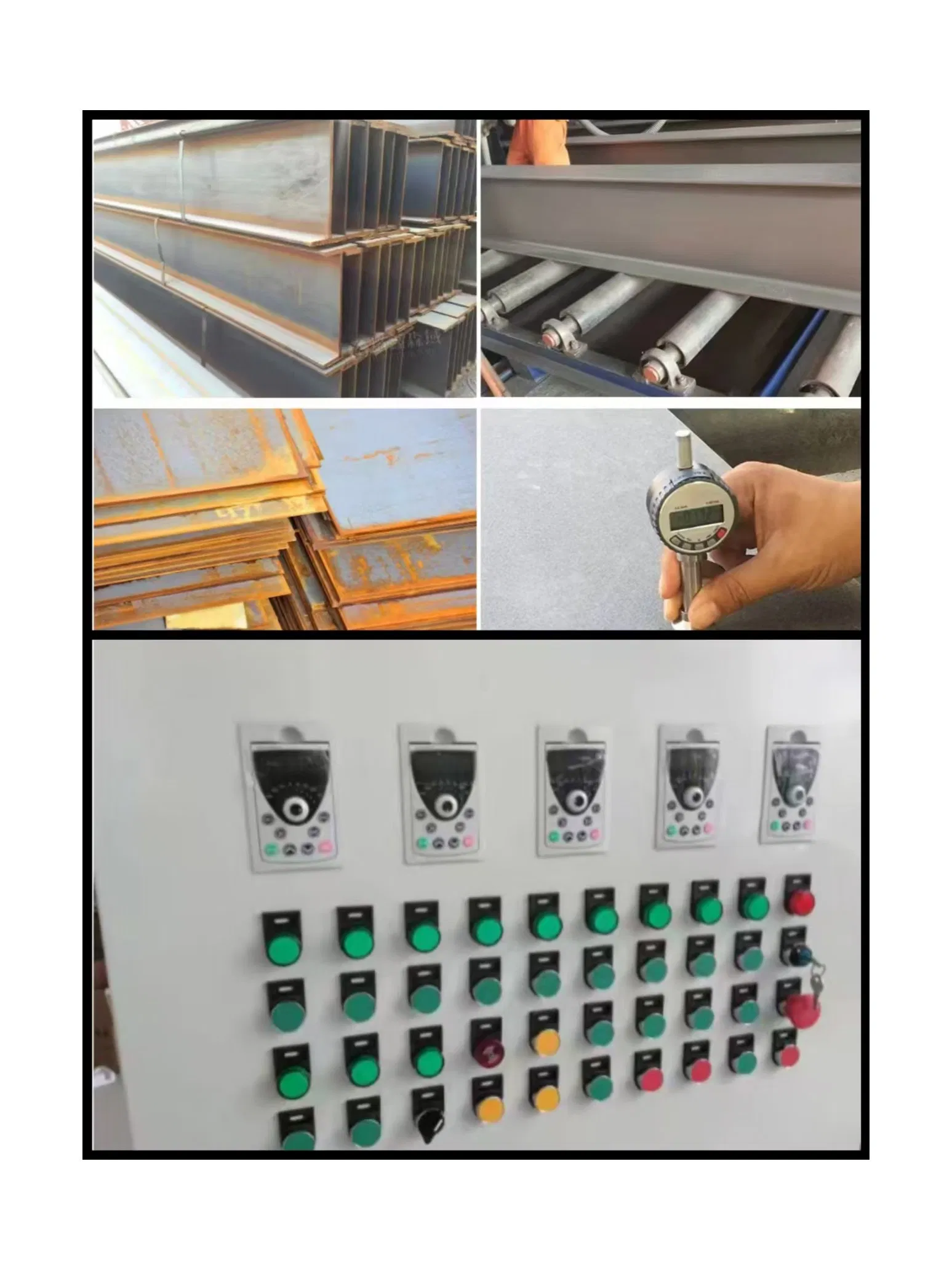

Blast Chamber & Electrical Control
Blast Chamber

Chamber Construction:

  • Composition: Main chamber + two auxiliary chambers.
  • Lining: SPMn13 material and 65Mn protective lining.
  • Control: Siemens/Omron PLC units.
  • Safety: Emergency stops on panel and conveyor.

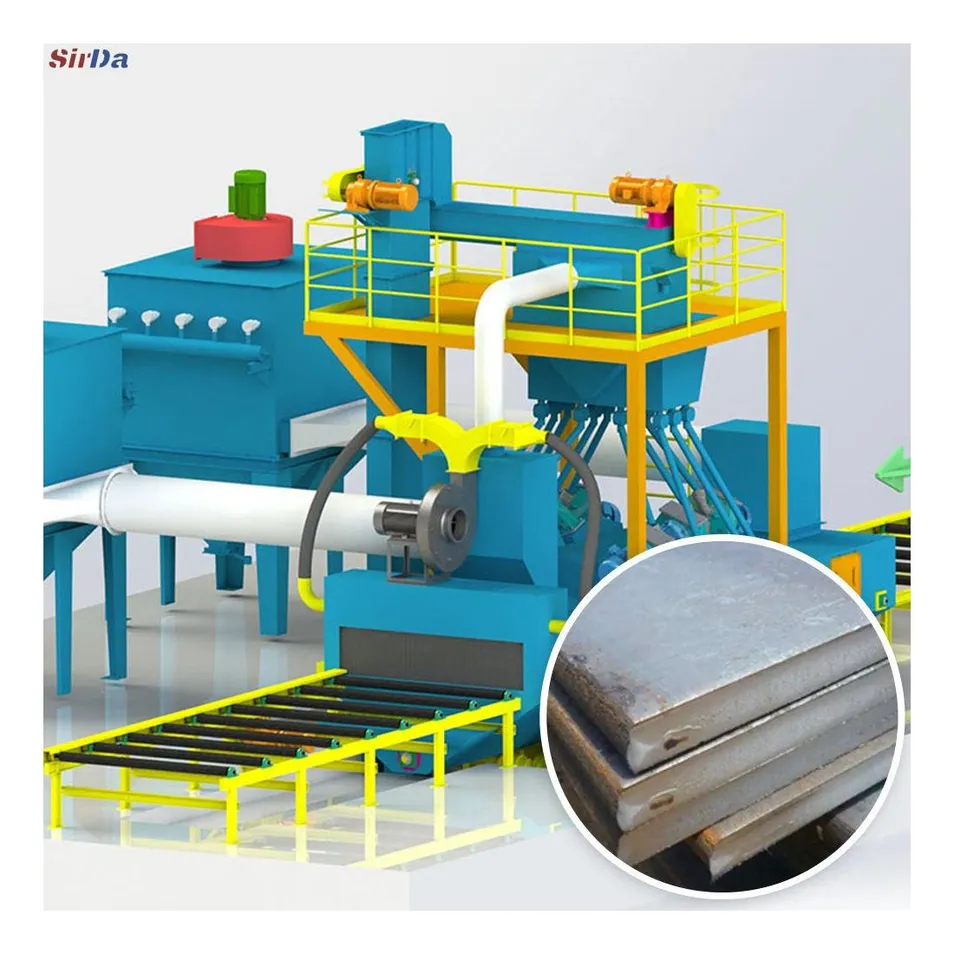

Abrasive Removal Unit
Abrasive Removal Unit

Uses a rotating brush with interchangeable segments to clean spent media. A screw conveyor returns media to circulation. High-pressure ventilators ensure complete media removal.

🌟 Key Advantages
Customizable Equipment

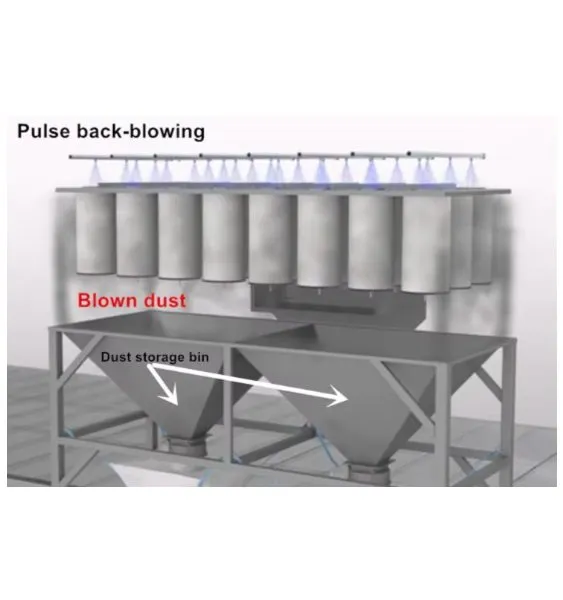

Dust Removal System
  • Customizable: Design and manufacture based on your specific steel dimensions.
  • Eco-Friendly: Dust emission reduced to 80 grams per cubic meter with 30 kW fan power.
  • Stability: Mature technology with low failure rates and high efficiency.
  • Quality: Uses internationally recognized electrical brands and CE certified standards.
  • Experience: Over 13 years of production expertise.
📊 Product Parameters & Certifications

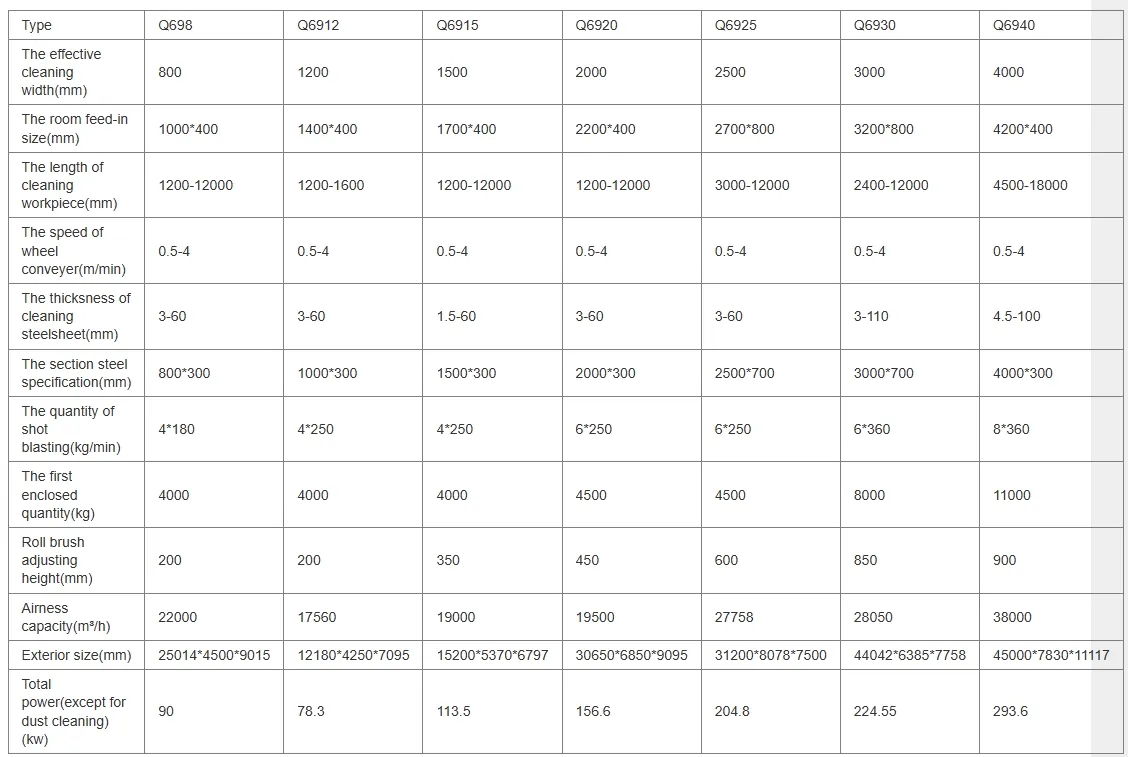

Product Parameters
Certification 1
Certification 2
🚢 Packaging & Shipping

Packaging Details: 40'HQ container

Departure Port: ShangHai

Lead Time: Around 30 days

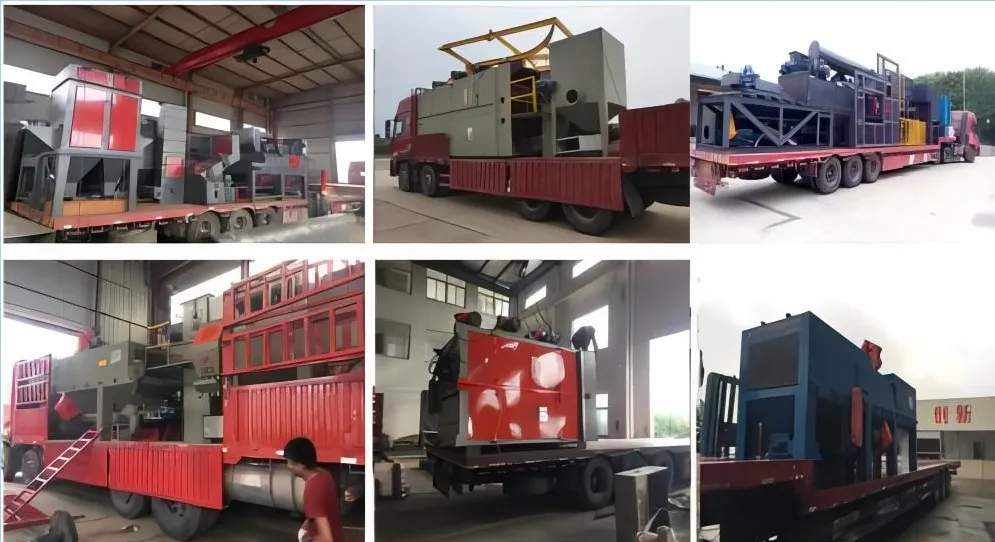

Shipping Image
FAQ
How long does it take to produce this machine?
Standard machines in stock can be delivered immediately. Customized designs typically require 30 to 50 days from engineering to completion.
What are your quality control procedures?
We prioritize quality control throughout the entire process. Every machine is fully assembled and rigorously tested before shipment.
What is the warranty period for the equipment?
We provide a one-year quality guarantee. We use world-famous brand components to ensure long-term perfect working conditions.
Do you offer overseas installation and training?
Yes, we provide overseas service. We send technicians for installation and commissioning. Small machines take about 5 days, while large systems may take 20-60 days.
What documentation is provided with the machine?
We provide full English documentation, including foundation drawings, manuals, electric wiring diagrams, and maintenance books.
Can the machine be customized for specific dimensions?
Absolutely. We specialize in designing and manufacturing non-standard equipment tailored to your specific workpiece dimensions and requirements.
