Nickel Plated Radiator Manifold Water Mixing System for Underfloor Heating

Customization:	Available
Name:	Brass Water Mixer Kit
Material:	Foged Brass

i

Basic Information

Model NO.

HB-16402

Surface

Sand Blast & Nickel Plated

Max. Working Pressure

1MPa

Water Inlet Temp

0-95℃

Output Temp

35-55℃

Accuracy

±2℃

Key Words

Auto Water Mix Group

Connection End

Threaded

Use Area

200m²

Head Lift

6m

Max Power

100W

Production Capacity

8000 PCS/Day

📷

Detailed Photos

📝

Product Description

Automatic Control System of Brass Water Mixer Kit with CE Certificate

This system is a brass mixing water unit designed for household applications, integrating a water pump and pressure gauge. It is suitable for cold/hot water mixing, constant-temperature water supply, and underfloor heating mixing systems. The system is constructed with high-precision brass casting, offering corrosion resistance, durability, and customization options for flow rate, pressure, and connection sizes based on user requirements.

⚙️

Technical Parameters

Parameter	Value
Medium	Water
Water inlet temperature	0-95ºC
Output temperature	35-55ºC
Use area	200m²
Temperature control accuracy	±2ºC
Head lift	6m
Maximum working pressure	1Mpa
Max power	100W

📏

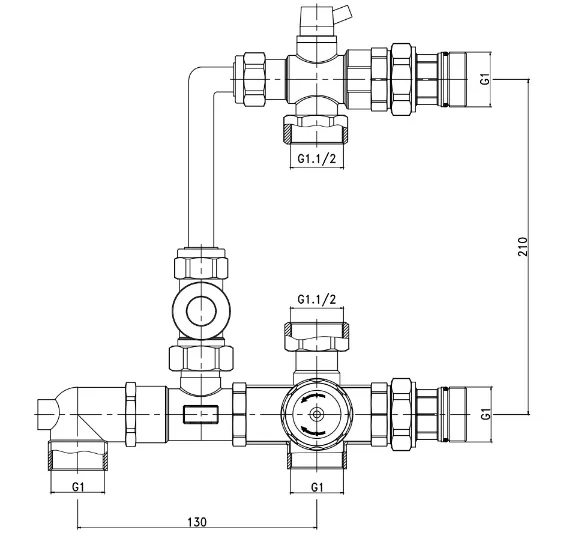

Dimensions & Specification

DN	SIZE	L(mm)	H(mm)	D(mm)
25	1''	60	210	1'' ,1-1/2'', 1-1/4

🏭

Production Process

🔥

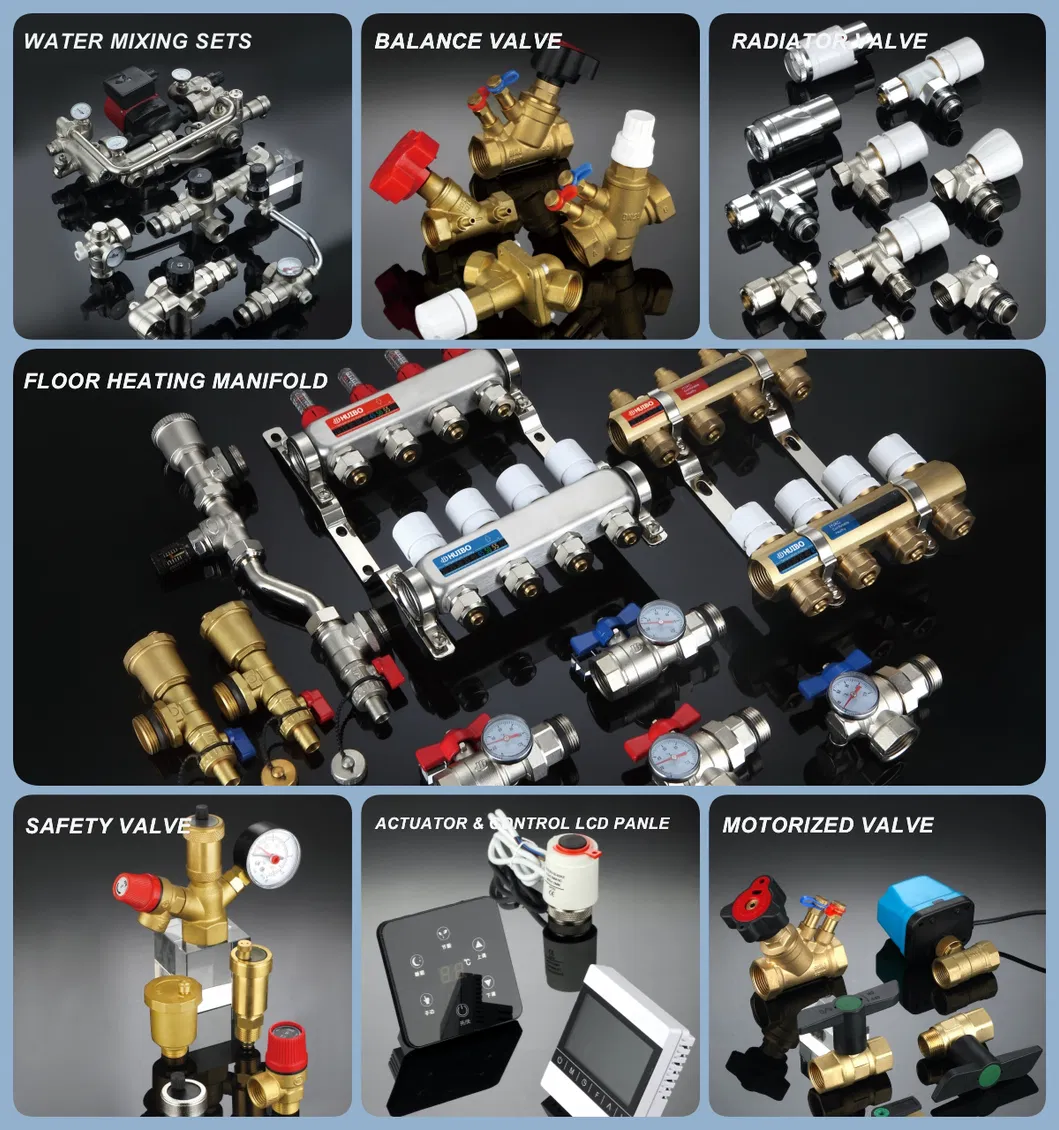

Hot Sale Series

📜

Certifications

🏢

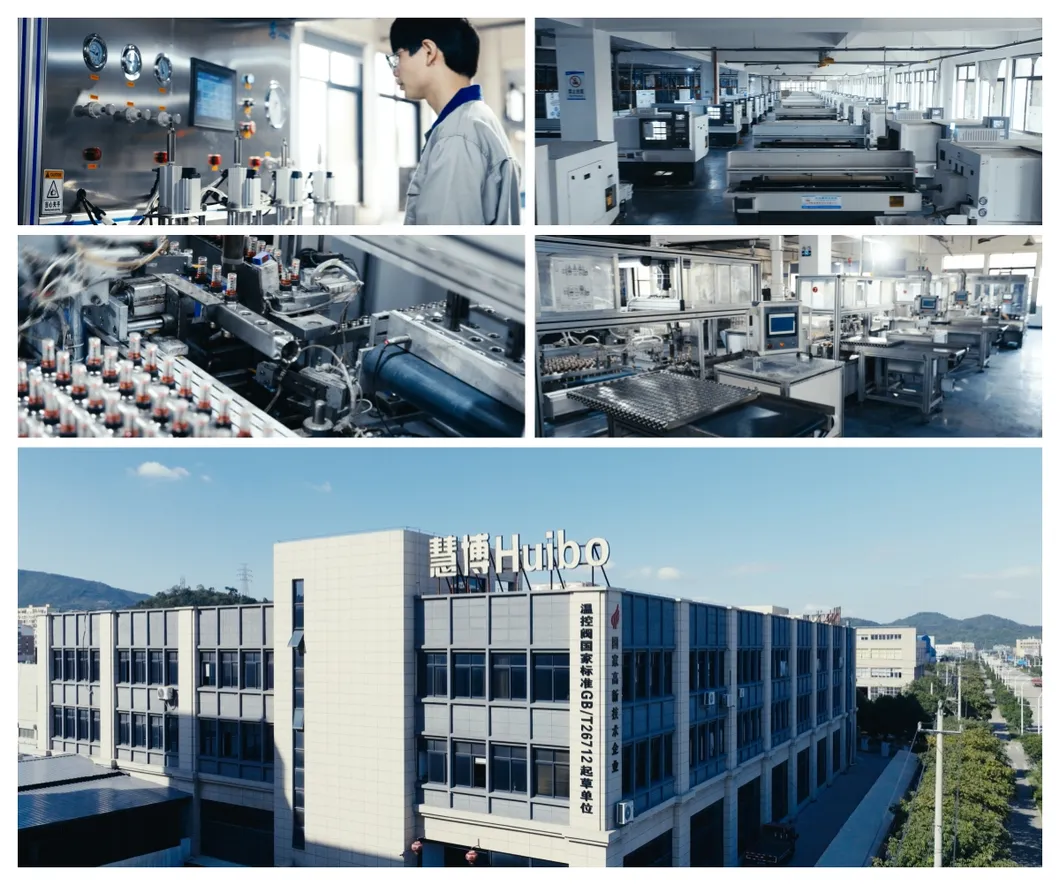

Professional Profile

We are a leading manufacturer in the valve industry with over 25 years of experience, specializing in HVAC system parts and brass valve fields. With a dedicated manufacturing facility, we leverage industry-wide resources to maintain a strong competitive edge in quality and innovation.

Our comprehensive product range includes brass manifolds, thermostatic radiator valves, manual radiator valves, motorized valves, ball valves, gate valves, gas valves, check valves, and brass fittings, covering over 40 series and 2,000 varieties.

?

Frequently Asked Questions

Q1: Can I request a sample before placing a bulk order? A: Yes, we provide samples for testing and quality verification purposes prior to formal purchasing.

Q2: What is the Minimum Order Quantity (MOQ)? A: The MOQ is 100pcs for manifolds and 1000-3000pcs for standard products. If a new mold is required, the MOQ is 5000pcs.

Q3: What is the standard order procedure? A: The process includes: 1. Requirements & application analysis; 2. Quotation; 3. Sample confirmation; 4. Order detail confirmation; 5. Production after deposit.

Q4: Are the products covered by a warranty? A: Yes, we provide a 3-year guarantee on our valves to ensure long-term reliability.

Q5: What certifications do your products hold? A: Our products are certified by SGS, ISO9001, ISO14001, and hold CE certification for international quality standards.

Q6: Can specifications like flow rate and connection size be customized? A: Yes, we offer customization options for flow rate, pressure settings, and connection sizes based on specific user requirements.
