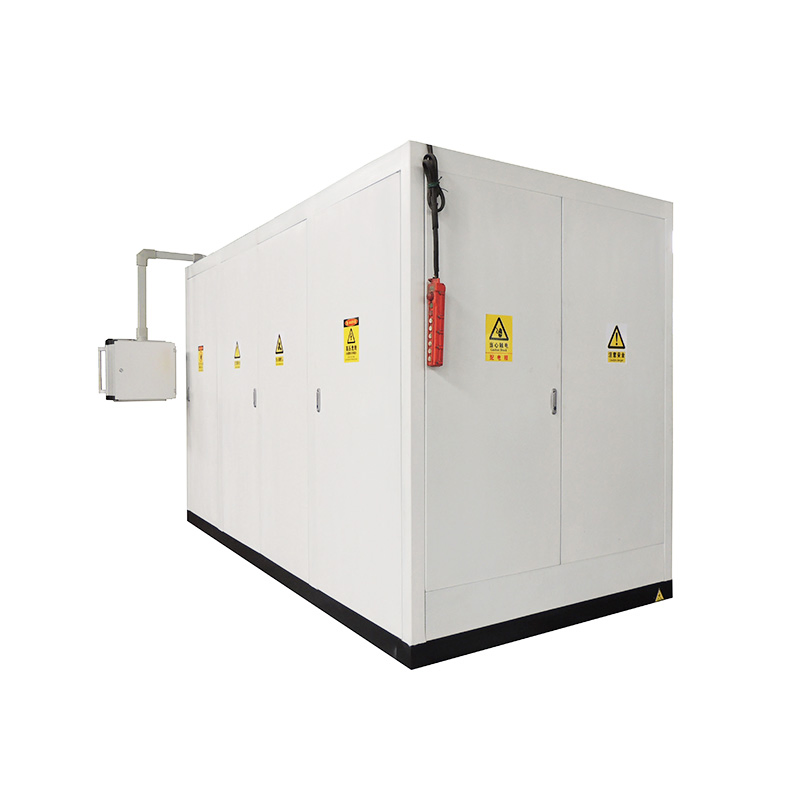

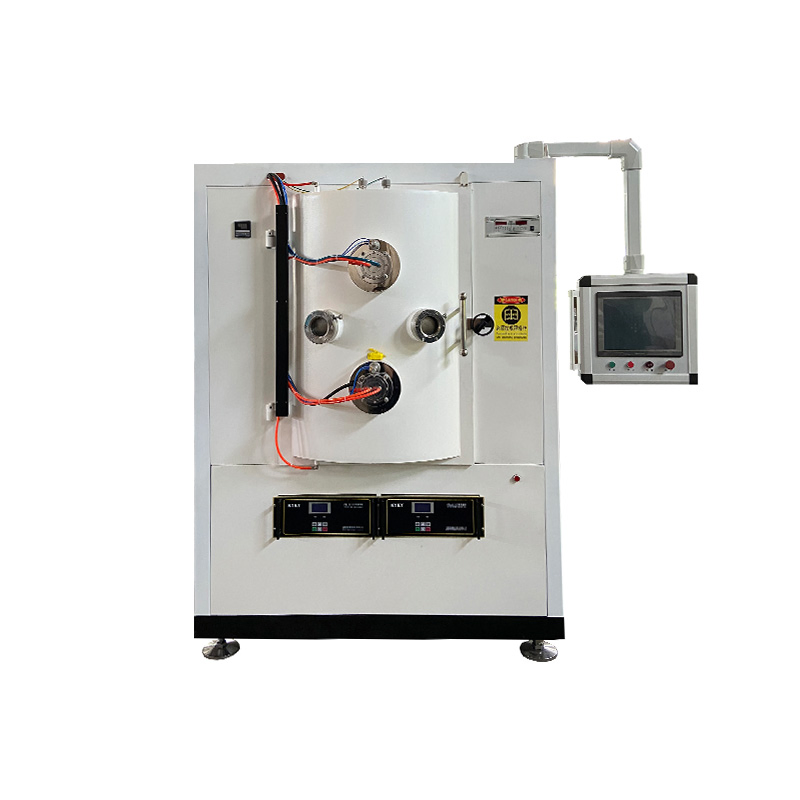

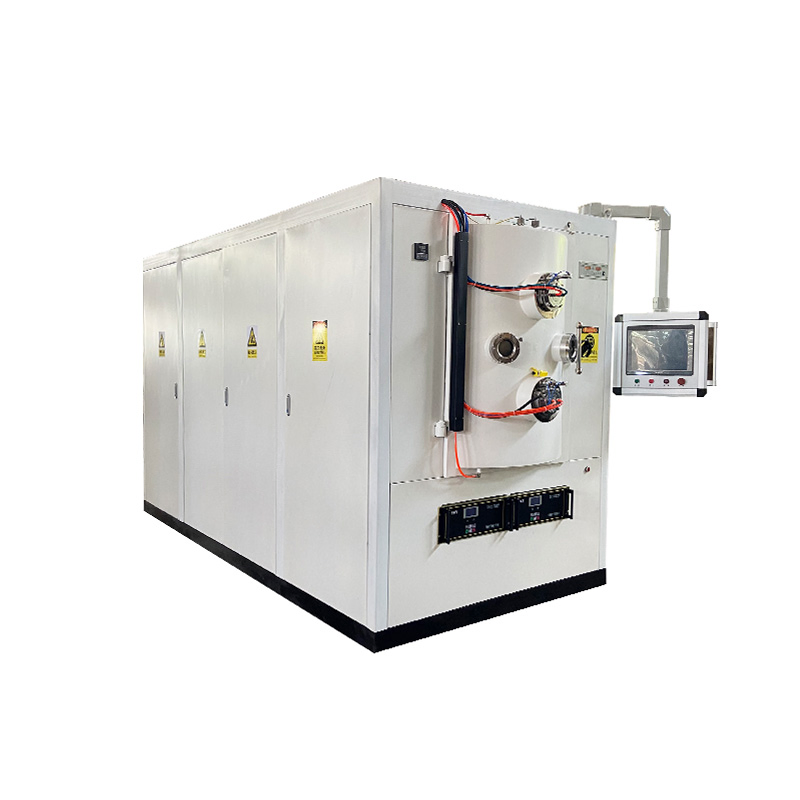

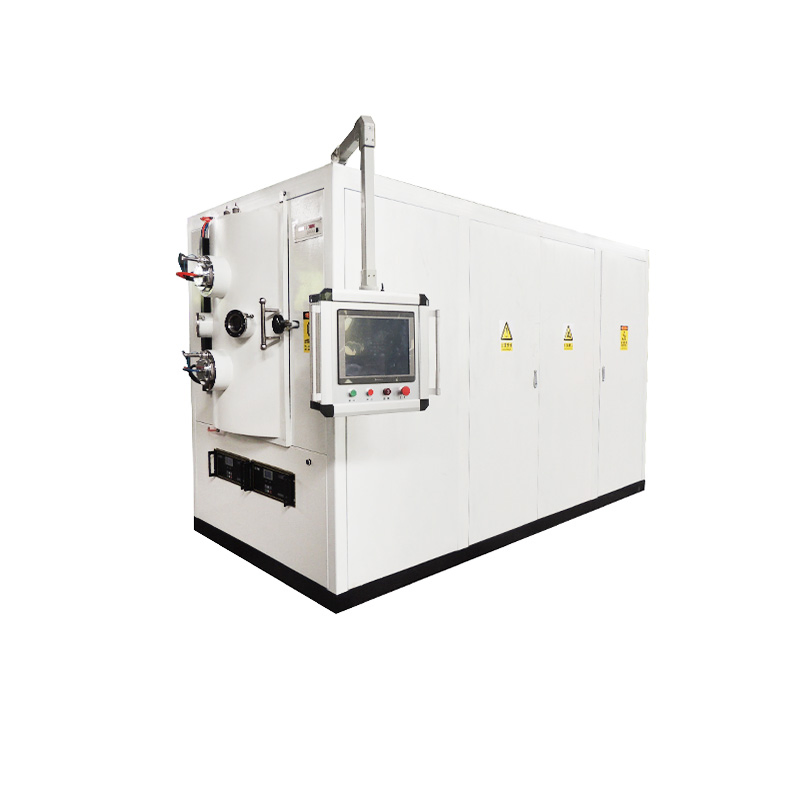

Hondson VAC Plasma Coating Machine Titanium Nitride Coating Equipment PVD Multi-Arc Ion Plating System
Hondson VAC Plasma Coating Machine Titanium Nitride Coating Equipment PVD Multi-Arc Ion Plating System
Hondson VAC Plasma Coating Machine Titanium Nitride Coating Equipment PVD Multi-Arc Ion Plating System
Hondson VAC Plasma Coating Machine Titanium Nitride Coating Equipment PVD Multi-Arc Ion Plating System
Hondson VAC Plasma Coating Machine Titanium Nitride Coating Equipment PVD Multi-Arc Ion Plating System
1 / 5
Hondson VAC Plasma Coating Machine Titanium Nitride Coating Equipment PVD Multi-Arc Ion Plating System
Hondson VAC Plasma Coating Machine Titanium Nitride Coating Equipment PVD Multi-Arc Ion Plating System
Hondson VAC Plasma Coating Machine Titanium Nitride Coating Equipment PVD Multi-Arc Ion Plating System
Hondson VAC Plasma Coating Machine Titanium Nitride Coating Equipment PVD Multi-Arc Ion Plating System
Hondson VAC Plasma Coating Machine Titanium Nitride Coating Equipment PVD Multi-Arc Ion Plating System

Hondson VAC Plasma Coating Machine Titanium Nitride Coating Equipment PVD Multi-Arc Ion Plating System

Customization: Available
After-sales Service: Engineers Can Be Sent to The Worksite
Warranty: 1 Year
Send Inquiry

Product Description

📋
Basic Information
Type
Coating Production Line
Coating
Vacuum Coating
Substrate
Steel
Certification
CE
Condition
New
Key Selling Points
Long Service Life
Voltage
Customers Local Voltage
Machinery Test
Provided
Raw Material
Chrome, Titanium, Silver, etc
Applicable Industries
Manufacturing Plant, PVD Coating Service Provider
Application
Surface Treatment / Functional PVD Hard Coatings
Coating Technology
Magnetron Sputtering + Arc Deposition
💎
Titanium Nitride Coating Equipment

Plasma Coating Machine Titanium Nitride Coating Equipment PVD Multi-Arc Ion Plating System

This high-tech environmental friendly product is designed for metal, glass, and surface coating. Implementing this system significantly improves workpieces' hardness, wear resistance, and durability. Widely utilized across various industries including watchmaking, ceramics, hardware, architecture, precision molds, and automotive components.

Titanium Nitride Coating Equipment

The ARC series, based on arc deposition technology, is the most suitable coating system for producing PVD hard coatings on metal tools, molds, and dies.

✔️
Technical Features
  • Chamber size: φ 600mm-φ1800mm (Fully Customizable)
  • 3-point vacuum level measuring and 2-point temperature measuring
  • High power ion source achieving uniformed, large-area ion deposition distribution
  • Multi-arc sources allow for different metal and alloy layer deposition
  • Auto-deposition control system for fully automated processes
  • Selection of center-driving or planetary substrate dome
  • Advanced pumping system: Diffusion or Turbo molecular pumps plus mechanical pumps
📊
Specifications & Performance
System Parameters
ModelARC series
Vacuum ChamberSUS304, φ600mm-1200×600-1200mm (H)
Substrate Dome Rotation10 rpm to 50 rpm (Variable)
Arc Evaporation Source2 to 16 sets
Ultimate Pressure5.0×10⁻⁴ Pa or lower
Pump Down Rate25 minutes (Atm. to 5.0×10⁻³ Pa)
Substrate HeaterUp to 550°C
Gross WeightApprox. 8500kg
🚀
Applications & Samples

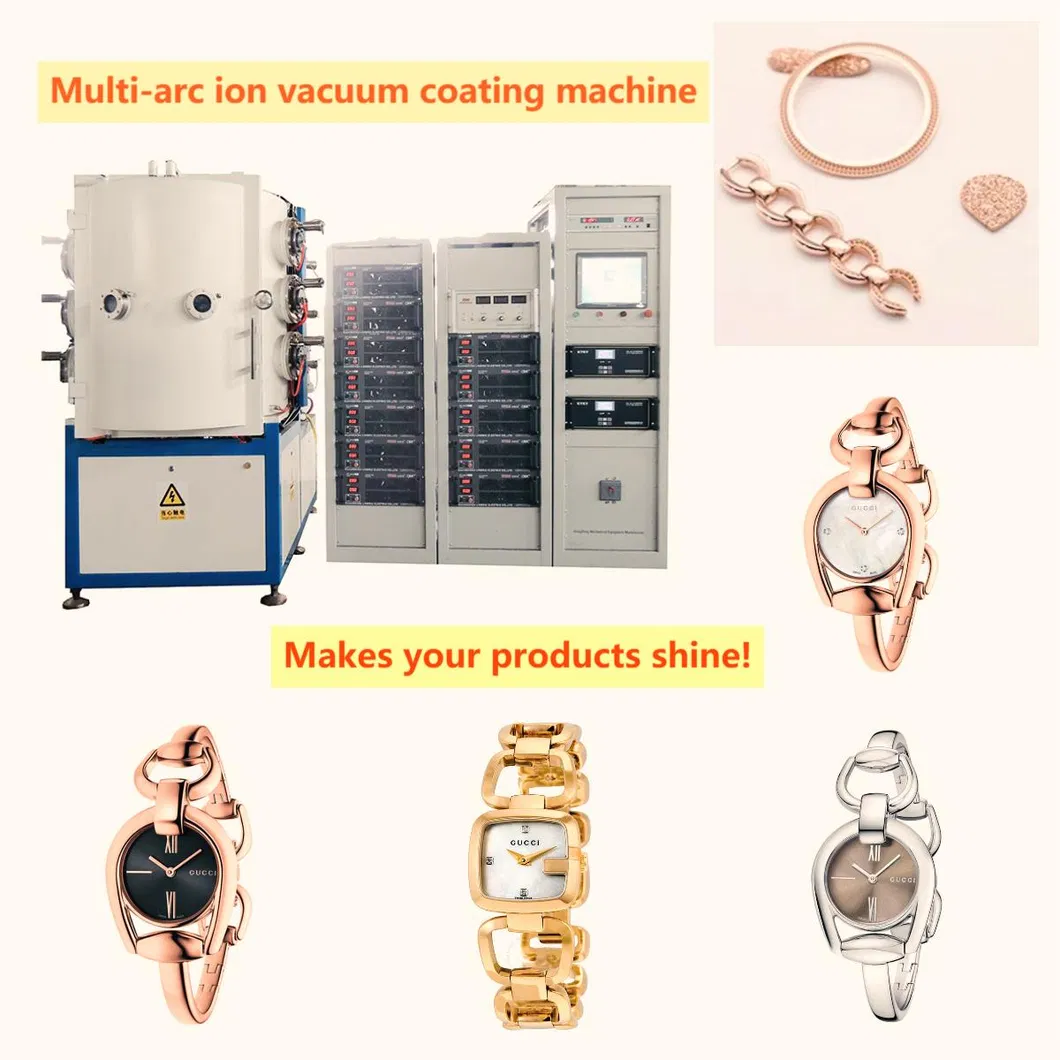

Application 1
Application 2

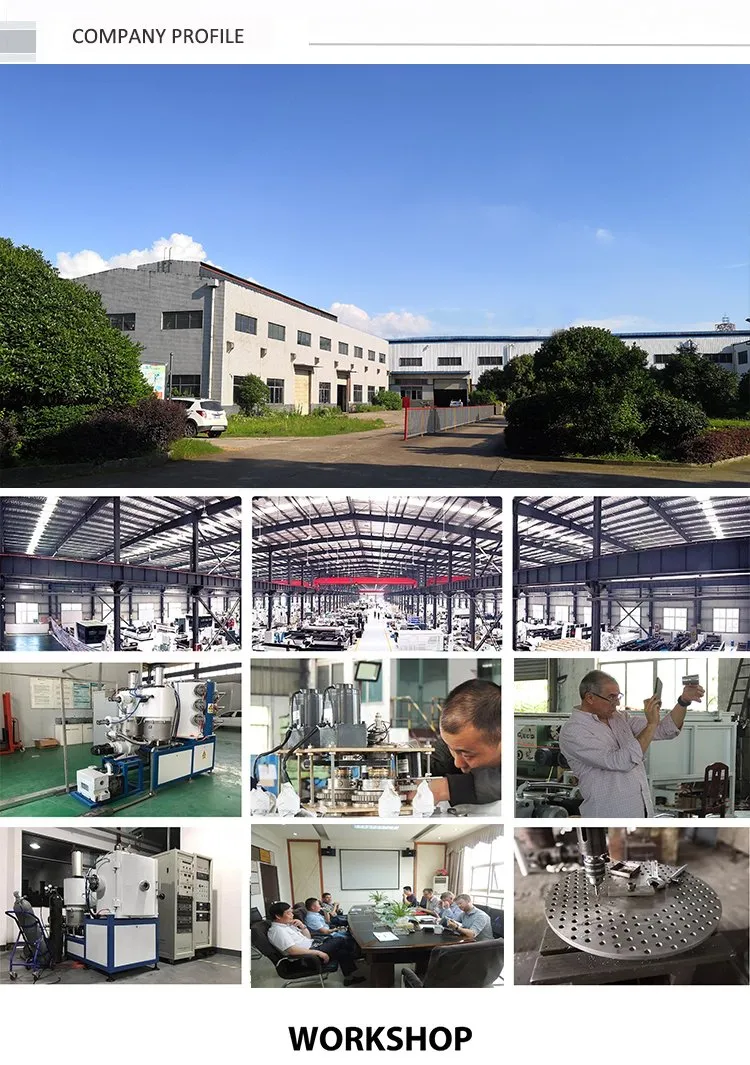

Application 3
Application 4
Application 5
Frequently Asked Questions
What materials can be coated with the ARC series equipment?
The system is designed for high-quality surface coating on metals (stainless steel, carbide, alloys), glass, and ceramics.
What are the primary benefits of Titanium Nitride (TiN) coating?
TiN coating significantly increases surface hardness, provides excellent wear resistance, reduces friction, and enhances the aesthetic appearance of the product.
Is the vacuum chamber size customizable?
Yes, we offer customizable chamber sizes ranging from φ 600mm to φ 1800mm to accommodate different workpiece dimensions.
How long does the pumping process take?
The system features a high-efficiency pumping rate, reaching 5.0×10⁻³ Pa from atmospheric pressure in approximately 25 minutes.
Does the machine support automated operation?
Absolutely. It includes an auto-deposition control system that manages the entire coating process automatically for consistency and ease of use.
What information is needed for a tailored quote?
Please provide your product type, maximum dimensions, the material of the substrate, and your required daily production capacity.
