| Model NO. | PD-GM-04 |
|---|---|
| Certification | CE |
| Application | Commercial |
| Material | Steel |
| Type | Ground Bracket |
| Wind Speed | 60m/S |
| Snow Load | 1.4kn/M2 |
| Lead Time | 7-15 Days |
| Surface Treatment | Magnesium Aluminum Zinc |
| Standard | AS/NZS1170/Jisc8955:2017 |
| Transport Package | Items Packed in Cartons/Pallets |
Magnesium Aluminum Zinc Ground Mounting Systems For Solar Panels:
This solar ground mounting bracket is strictly designed according to the maximum wind speed, maximum snow load, and solar panel specifications. While ensuring sufficient strength, installation efficiency and labor costs are optimized. The system ensures long service life with various foundation options: straight into the ground, ground screws, and cement piers.
The double column design can utilize ground bolts or piling columns. Ground screw posts allow for precise height adjustments, while piling columns offer higher strength for specific installation requirements.

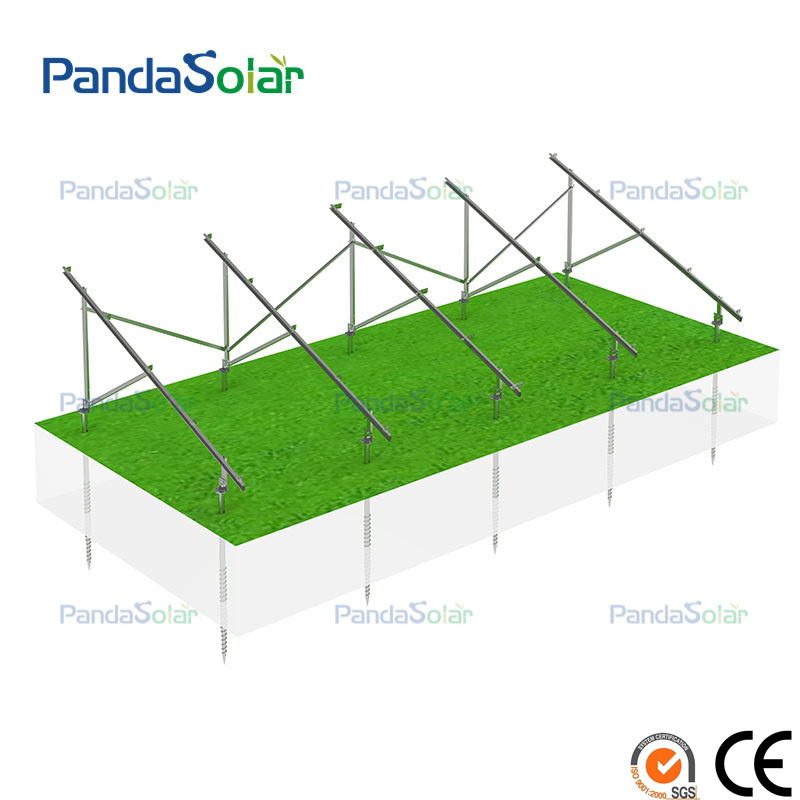

Step 1: Installing Ground Screws
Anchor the support structure to the ground using specialized equipment. The depth depends on soil type to ensure stability for the entire system.

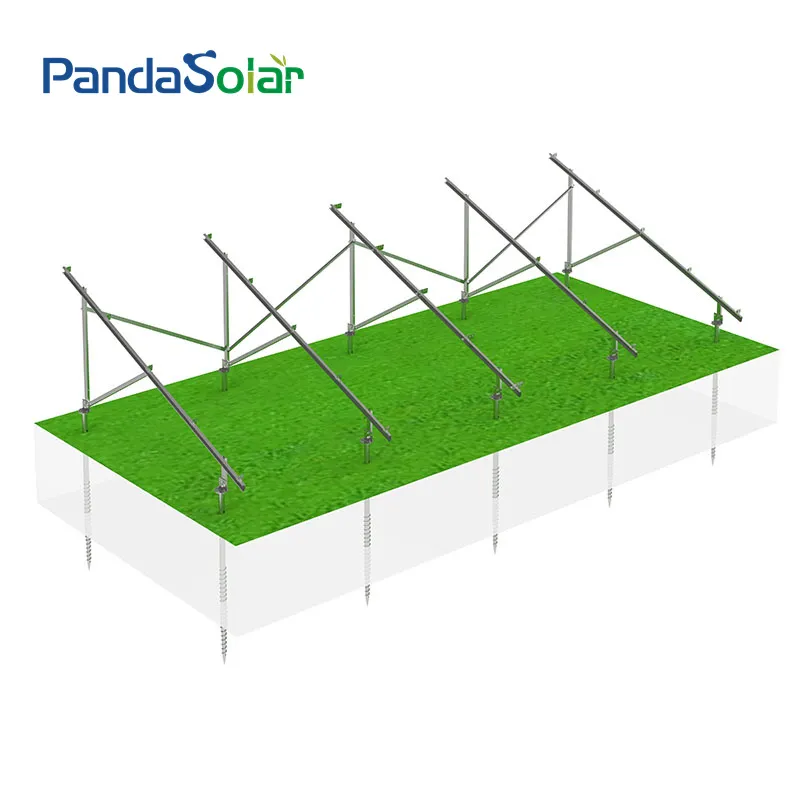

Step 2: Install the Beams
Connect the diagonal support pole to the top of the pole using bolts and nuts after the foundation is ready.

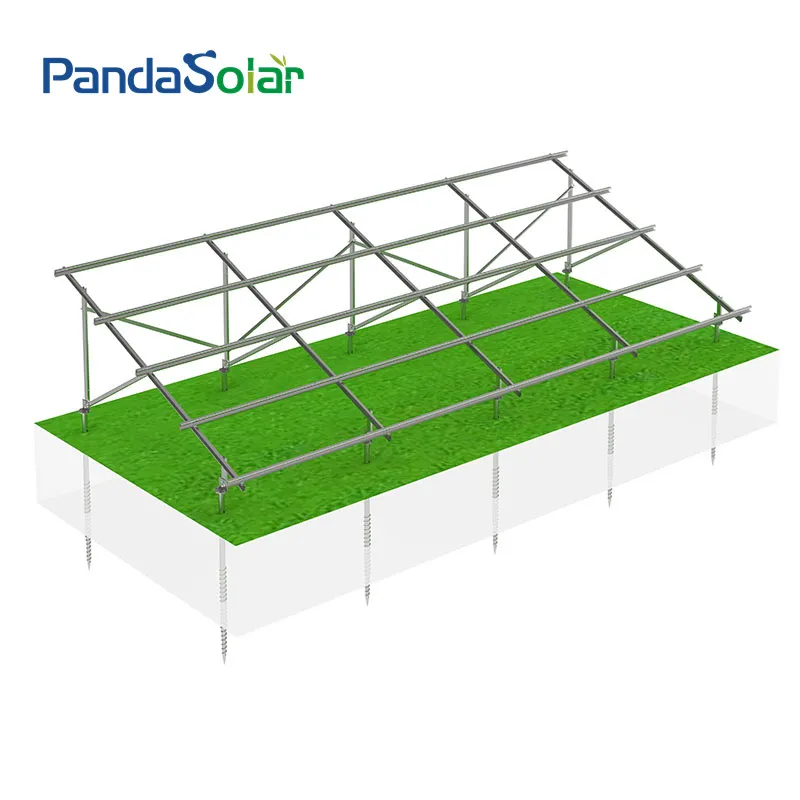

Step 3: Installing Rails
Attach the rails that support the solar panels to the beams using brackets. Ensure the rails are perfectly level.

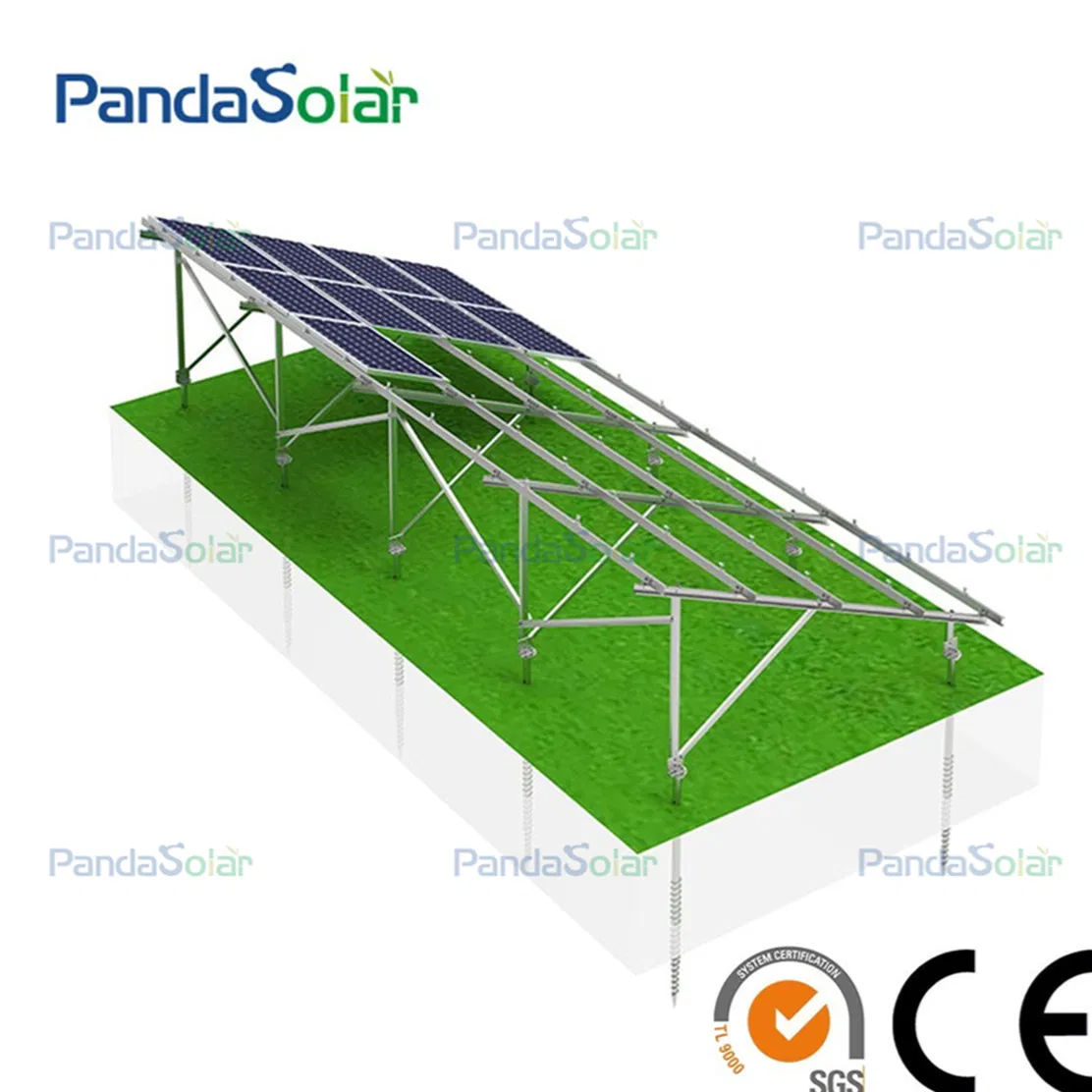

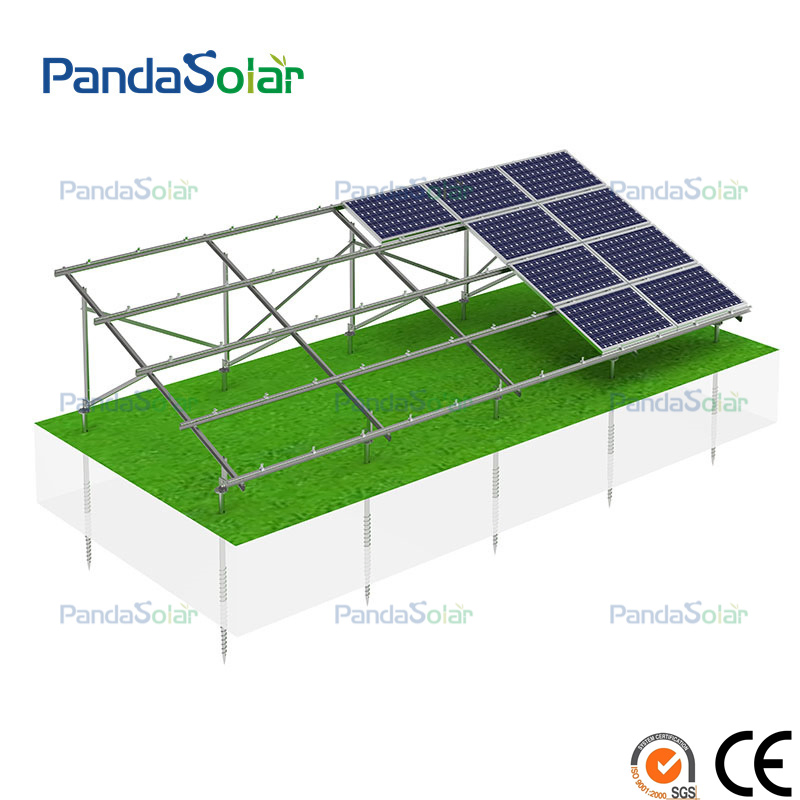

Step 4: Installing Solar Panels
Securely fasten each solar panel to the rails using high-quality mounting hardware.
| Material | Structure: Mg-Al-Zn & AL-6005-T5 (Anodized) Components: SUS304 & AI6005-5 (Anodized) |
|---|---|
| Application | Commercial and Residential installation |
| Tilt Angle | 0-60° |
| Wind Speed | 0-60 m/s |
| Snow Load | 0-150cm |
| Ground Clearance | 0-1m |
| Design Standard | AS/NZS 1170, DIN 1055, JIS C8955: 2017, IBC 2009 |
| Warranty | 12 years |
Equipped with professional design and sales teams, we are committed to developing clean energy mounting systems, including ground, greenhouse, roof, carport, and fence solutions. Our products are widely utilized across Europe, Southeast Asia, the Middle East, Africa, and Latin America.

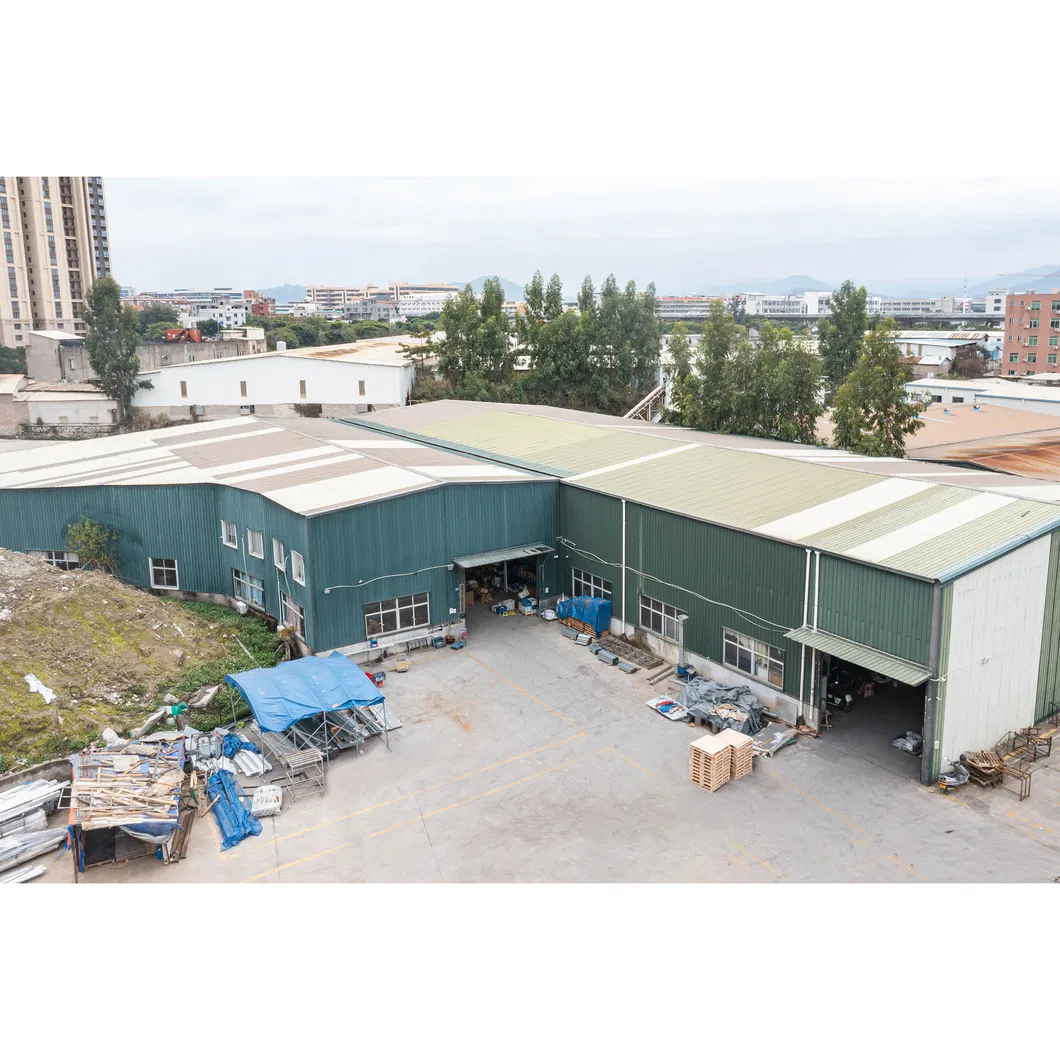

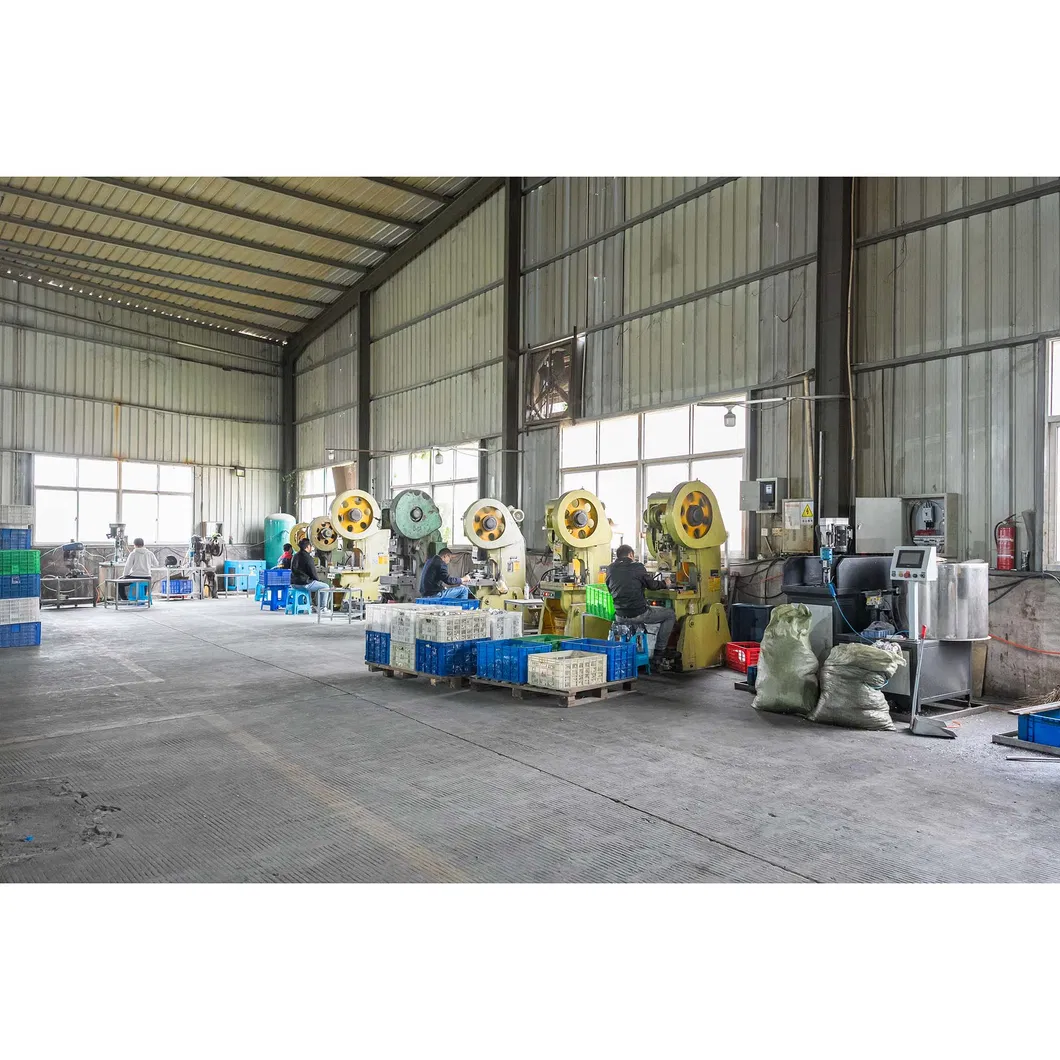

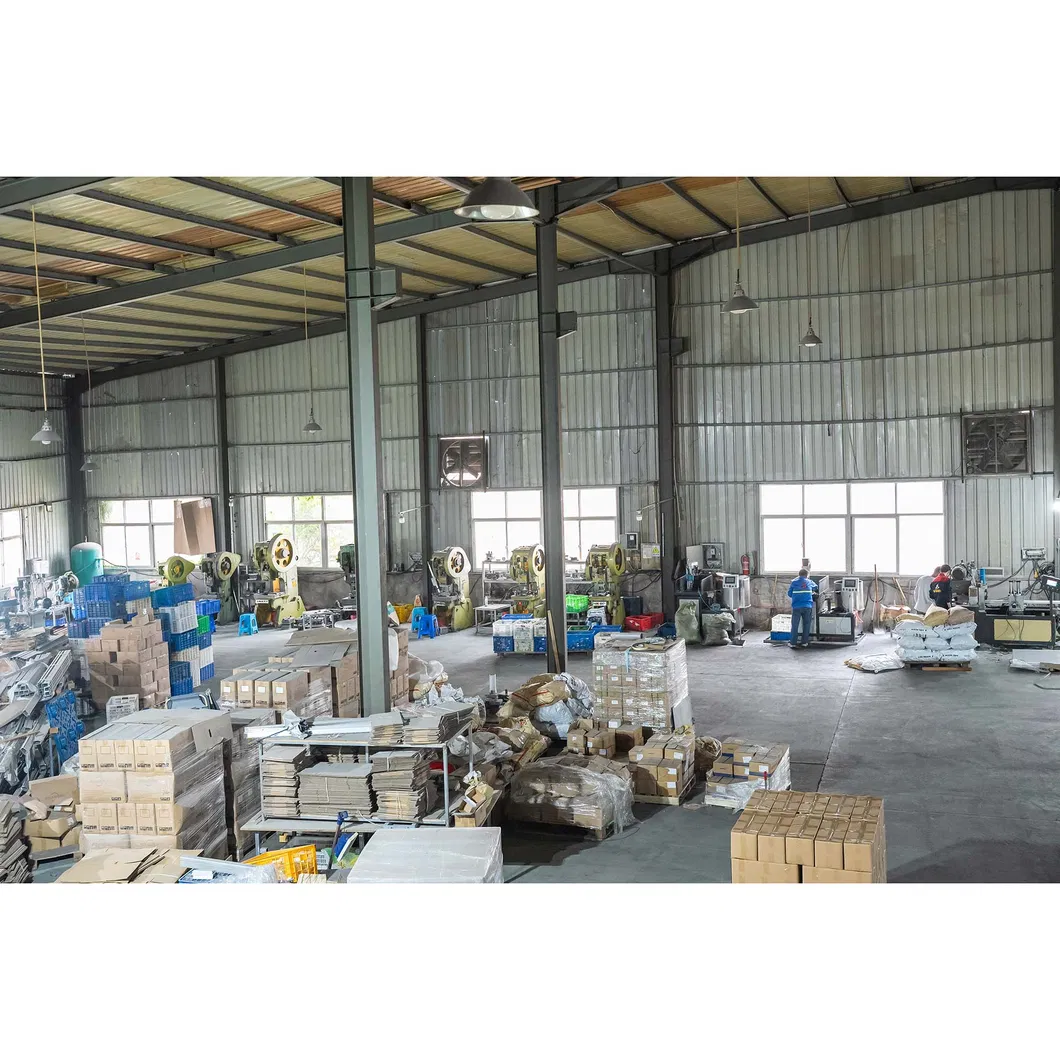

Aluminum Material Workshop: Features independent processing for cutting, drilling, stamping, and forging. The team handles high-precision customization requirements with ease.
Steel Material Workshop: Specialized in Magnesium Aluminum Zinc processing with 6 production lines. Monthly productivity reaches 40-50MW, ensuring timely delivery for large-scale projects.
