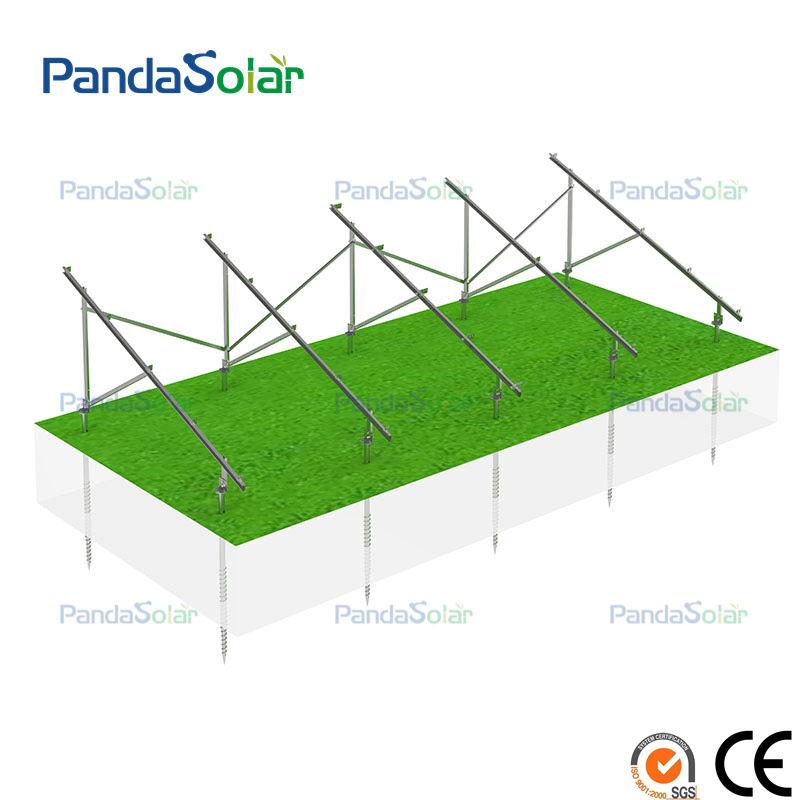

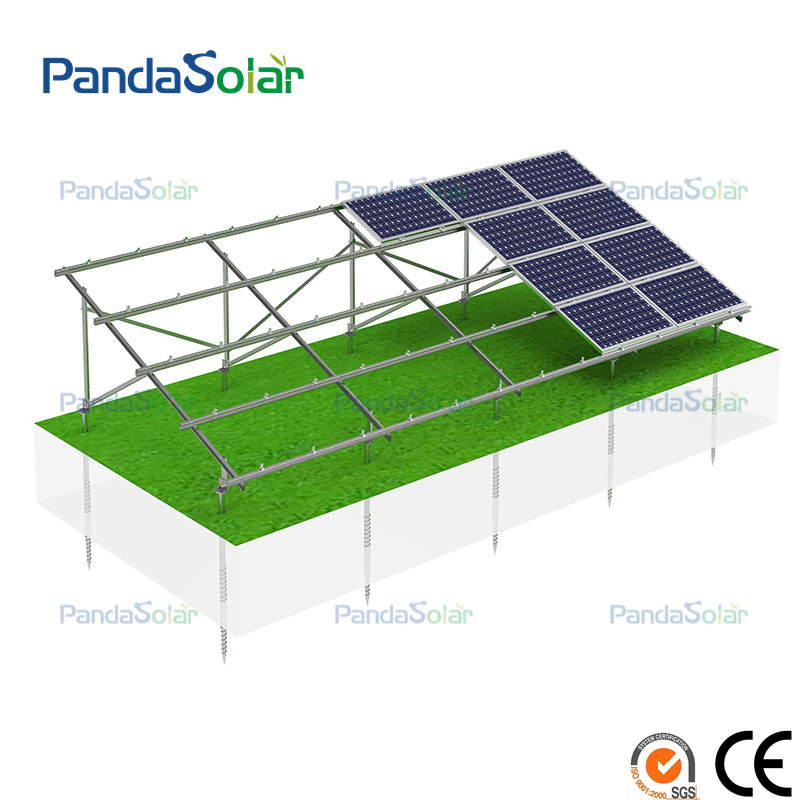

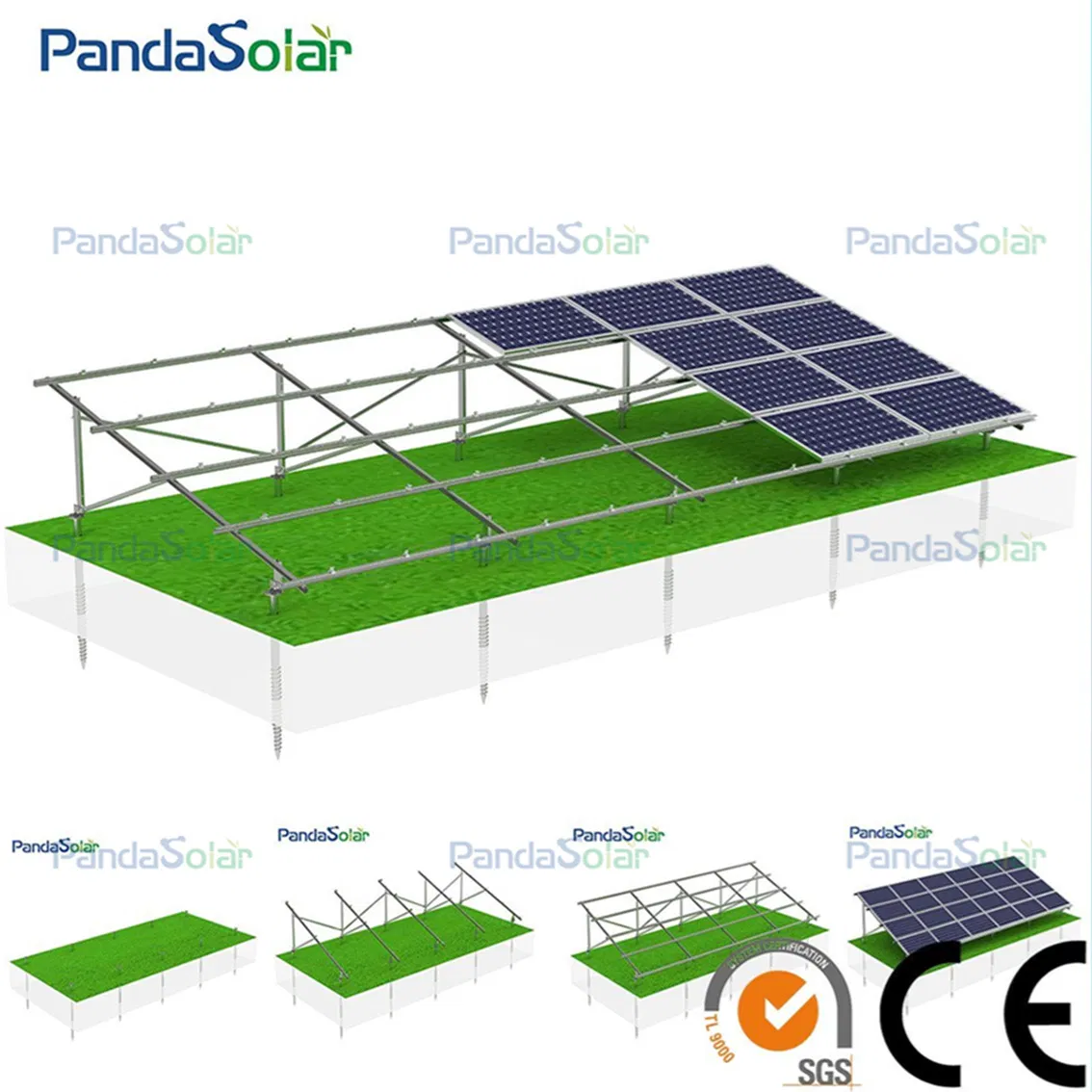

OEM Pandasolar GM4 Mg-Al-Zn High Strength Plating Solar Panel Ground Mounting System Structure Supplier
OEM Pandasolar GM4 Mg-Al-Zn High Strength Plating Solar Panel Ground Mounting System Structure Supplier
OEM Pandasolar GM4 Mg-Al-Zn High Strength Plating Solar Panel Ground Mounting System Structure Supplier
OEM Pandasolar GM4 Mg-Al-Zn High Strength Plating Solar Panel Ground Mounting System Structure Supplier
OEM Pandasolar GM4 Mg-Al-Zn High Strength Plating Solar Panel Ground Mounting System Structure Supplier
1 / 5
OEM Pandasolar GM4 Mg-Al-Zn High Strength Plating Solar Panel Ground Mounting System Structure Supplier
OEM Pandasolar GM4 Mg-Al-Zn High Strength Plating Solar Panel Ground Mounting System Structure Supplier
OEM Pandasolar GM4 Mg-Al-Zn High Strength Plating Solar Panel Ground Mounting System Structure Supplier
OEM Pandasolar GM4 Mg-Al-Zn High Strength Plating Solar Panel Ground Mounting System Structure Supplier
OEM Pandasolar GM4 Mg-Al-Zn High Strength Plating Solar Panel Ground Mounting System Structure Supplier

OEM Pandasolar GM4 Mg-Al-Zn High Strength Plating Solar Panel Ground Mounting System Structure Supplier

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Specifications

Model NO.
PD-GM-04
Certification
CE
Application
Commercial / Residential
Material
Steel / Mg-Al-Zn
Type
Ground Bracket
Wind Speed
60m/S
Snow Load
1.4kn/M2
Surface Treatment
Magnesium Aluminum Zinc
Standard
AS/NZS1170/Jisc8955:2017

Product Overview

High-strength Magnesium Aluminum Zinc Ground Mounting Systems are strictly designed according to maximum wind speed, snow load, and solar panel specifications. This system ensures structural integrity while optimizing installation efficiency and labor costs. Foundations options include direct ground piling, ground screws, and cement piers.

The double-column design allows for flexible height adjustments and offers superior durability for long-term outdoor use.

Installation Guide

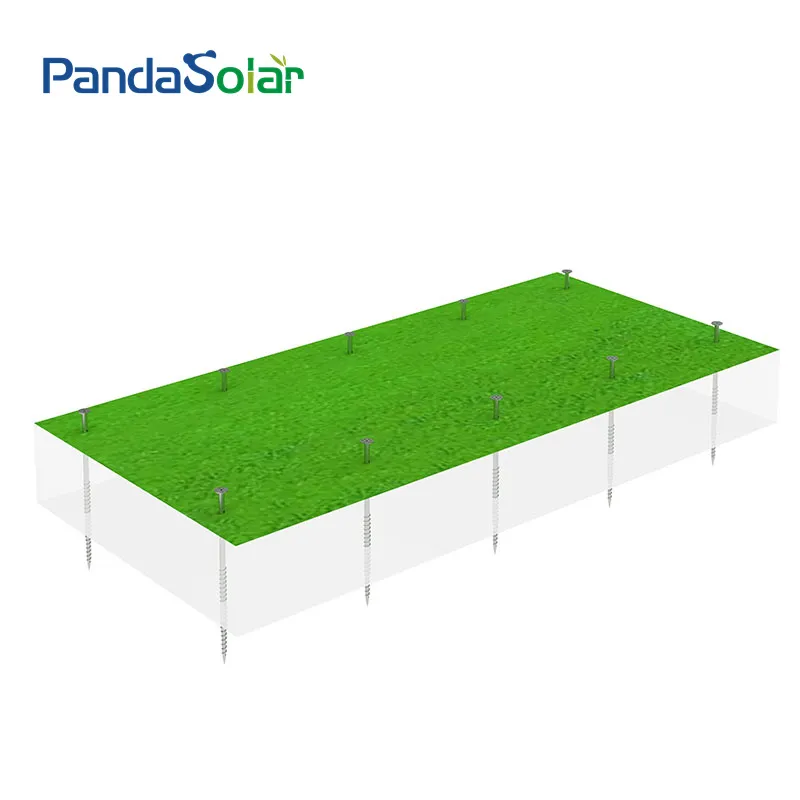

Installing Ground Screws

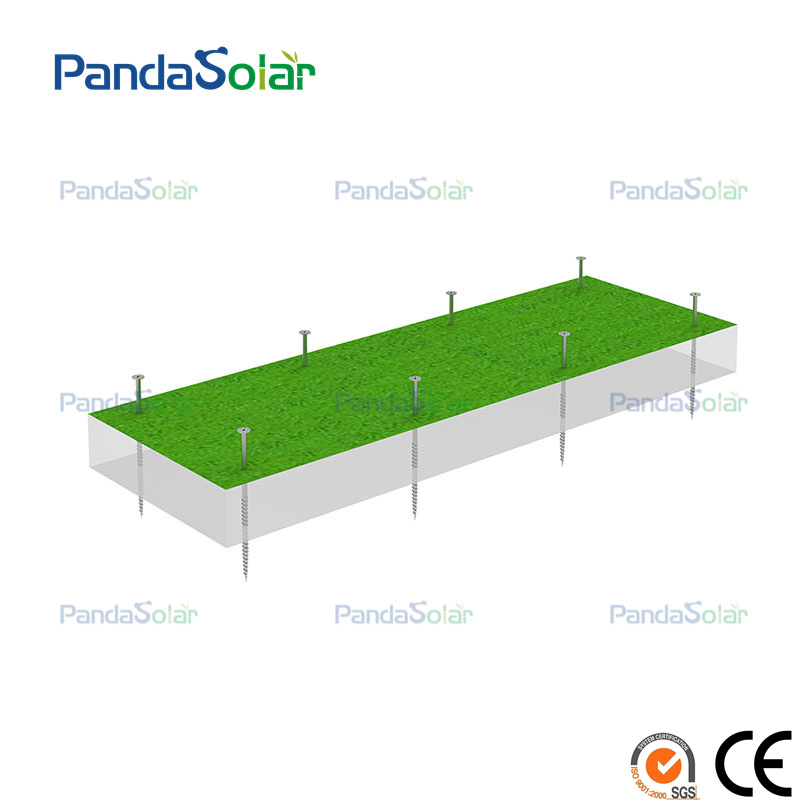

1. Installing Ground Screws The first step is anchoring the support structure. Specialized equipment drills these screws into the soil. Depth is adjusted based on soil type to support the full system weight.

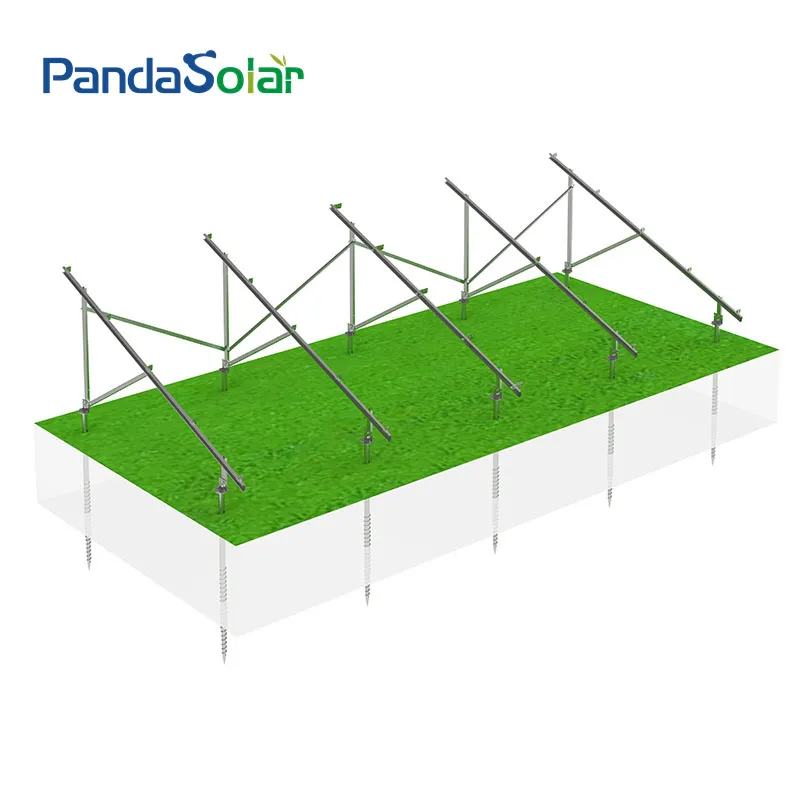

2. Install the Beams Once foundations are set, diagonal support poles are connected to the main vertical poles using high-strength bolts and nuts to create a stable frame.
Install the Beams

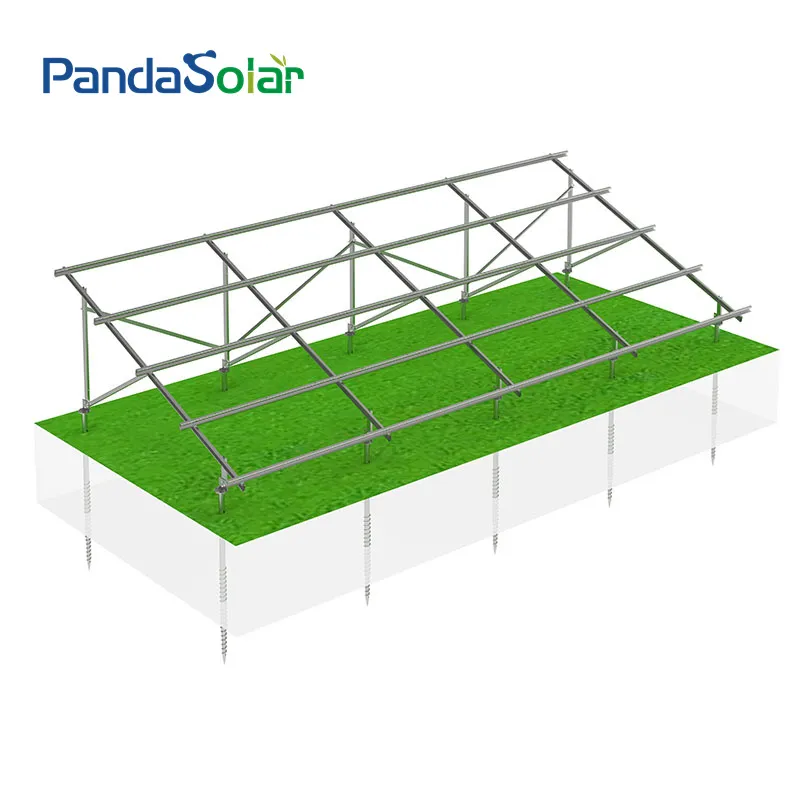

Installing Rails
3. Installing Rails Rails that support the solar panels are attached to the beams using specialized brackets. It is crucial to ensure all rails are level before proceeding.

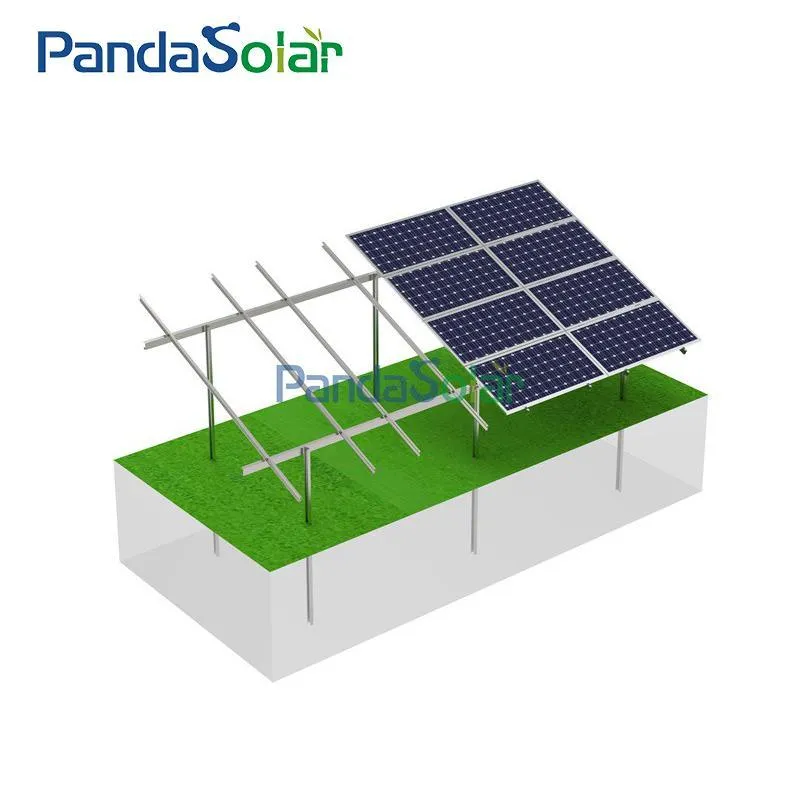

4. Mounting Solar Panels Finally, solar panels are securely fastened to the rails using industrial-grade mounting hardware, ensuring each panel is wind-resistant.
Installing Solar Panels

Technical Parameters

Feature Details
MaterialMg-Al-Zn & AL-6005-T5 (Anodized), SUS304 Components
ApplicationCommercial and Residential Installation
Tilt Angle0-60°
Wind Speed0-60 m/s
Snow Load0-150cm
Ground Clearance0-1m
Design StandardAS/NZS 1170, DIN 1055, JIS C8955: 2017, IBC 2009
Warranty12 Years

Structural Features & Advantages

  • Simple double-column structure
  • High mechanical strength
  • Superior self-healing properties
  • Cost-effective solar solution
  • Aesthetic and functional design
  • Highly pre-assembled for fast setup
  • Great flexibility for different terrains
  • Extended service life in harsh environments
  • OEM customization available
  • Easy maintenance and installation

Production Facilities

Workshop Overview

Our professional processing workshops handle aluminum alloy, steel, and Magnesium-Aluminum-Zinc materials independently. With over 6 production lines, we provide cutting, drilling, stamping, and forging with a monthly capacity of 40-50MW.

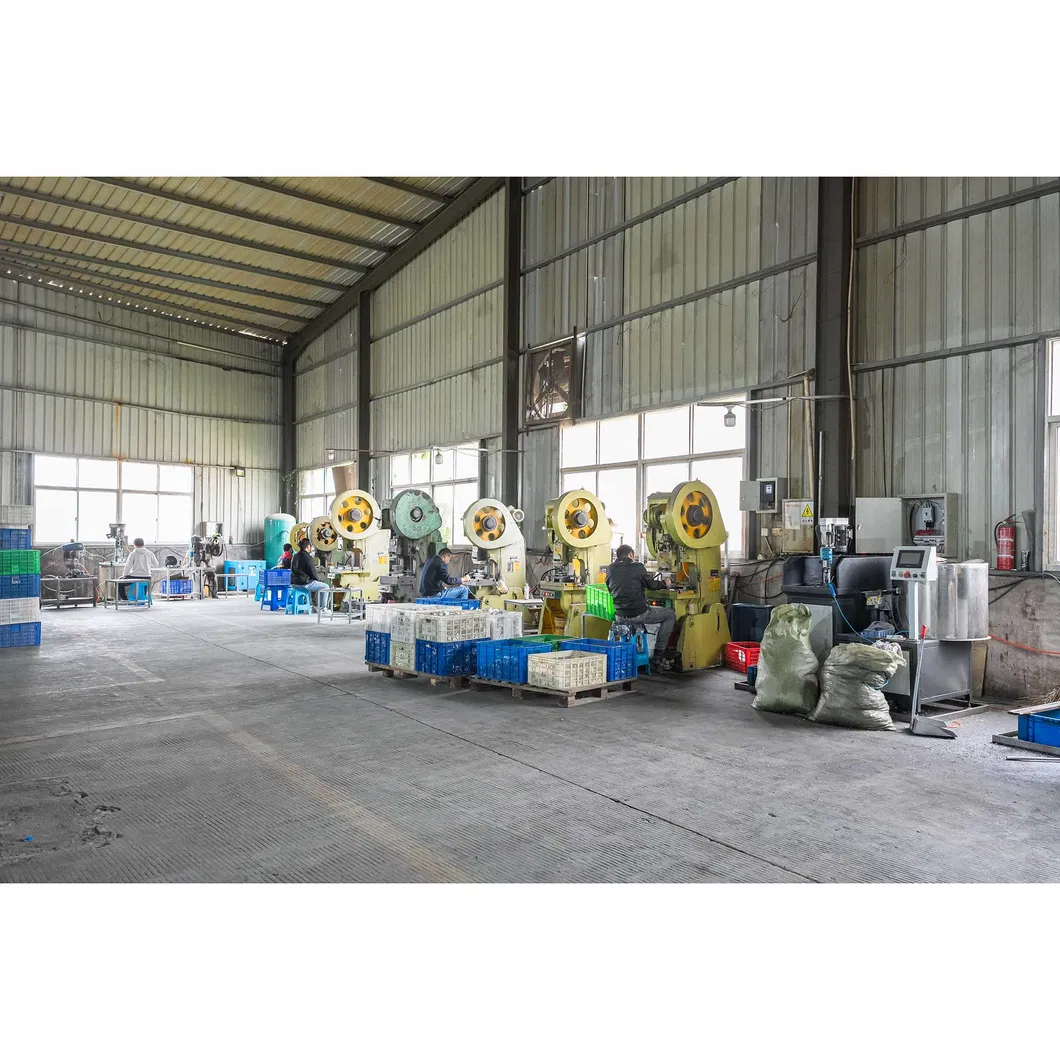

Factory 1

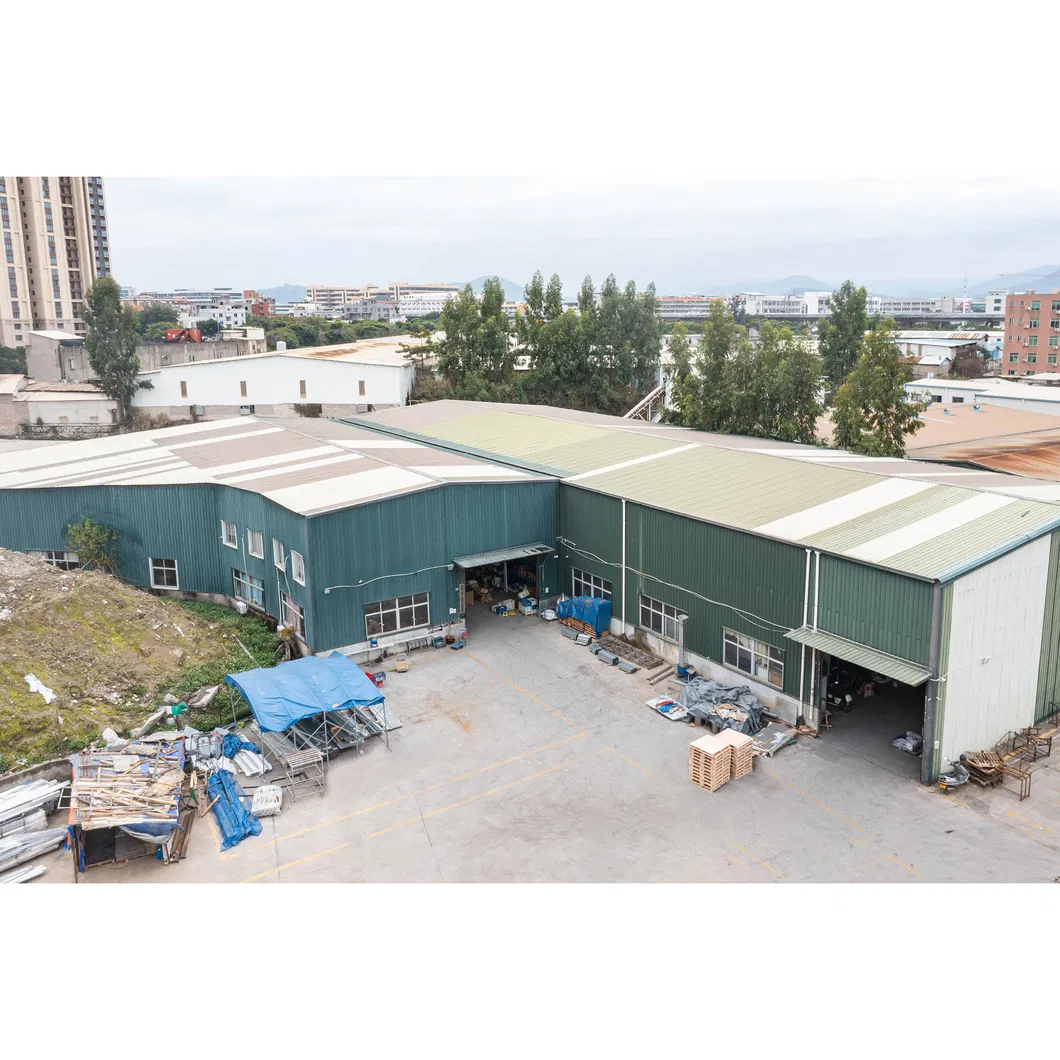

Factory 2

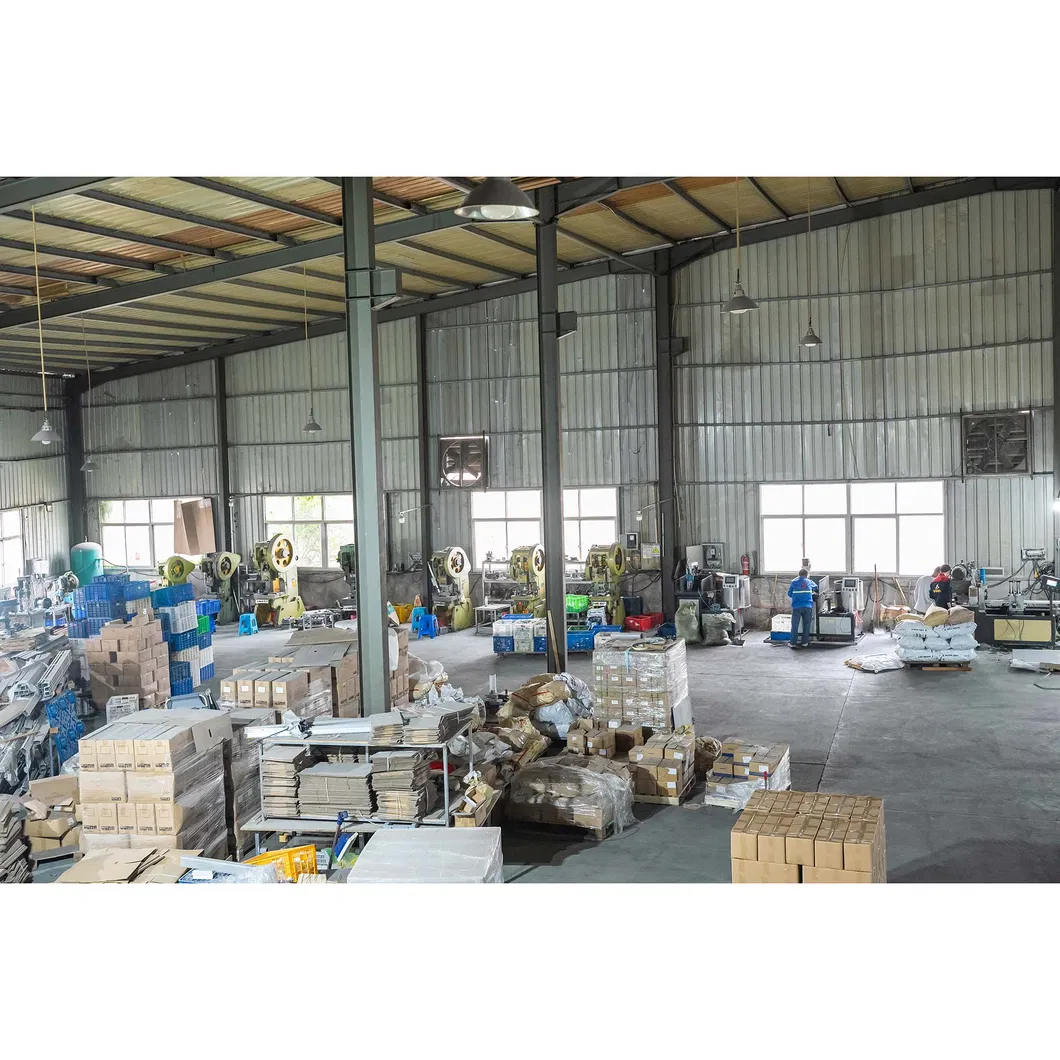

Factory 3

Related Solar Solutions

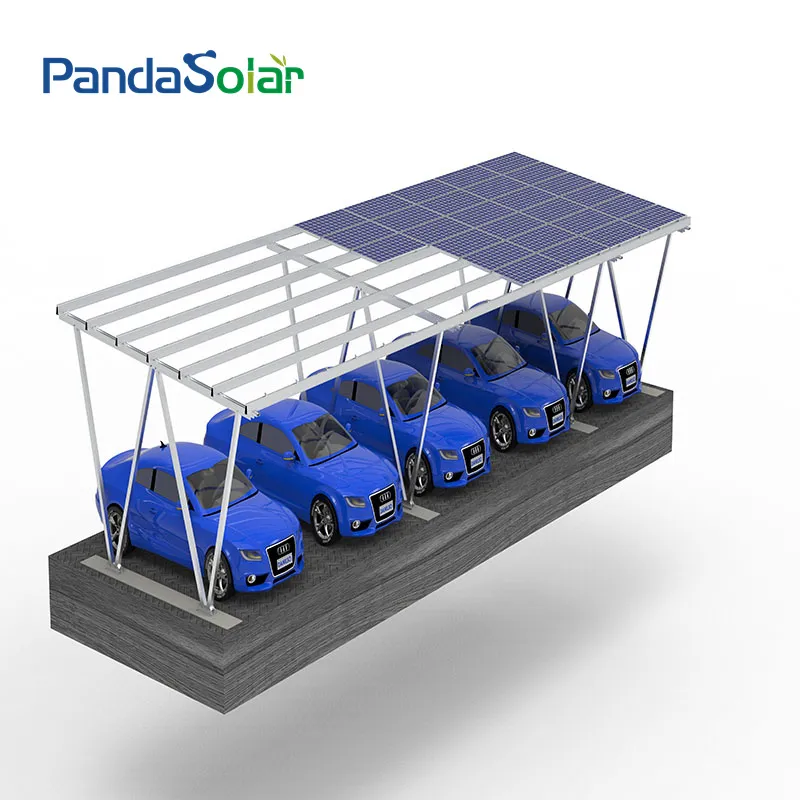

Solar Carport

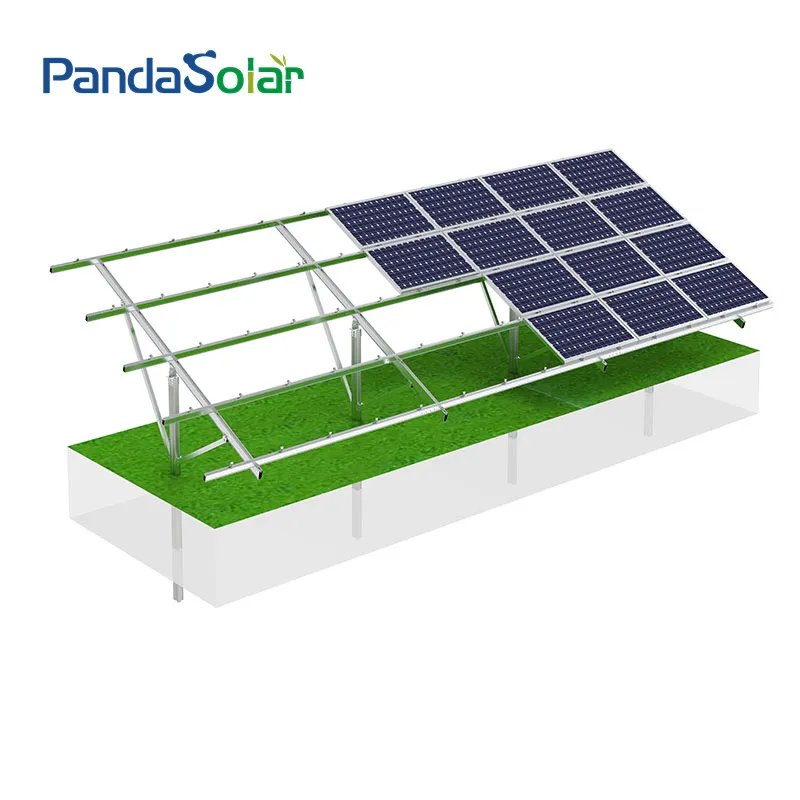

One Pole System

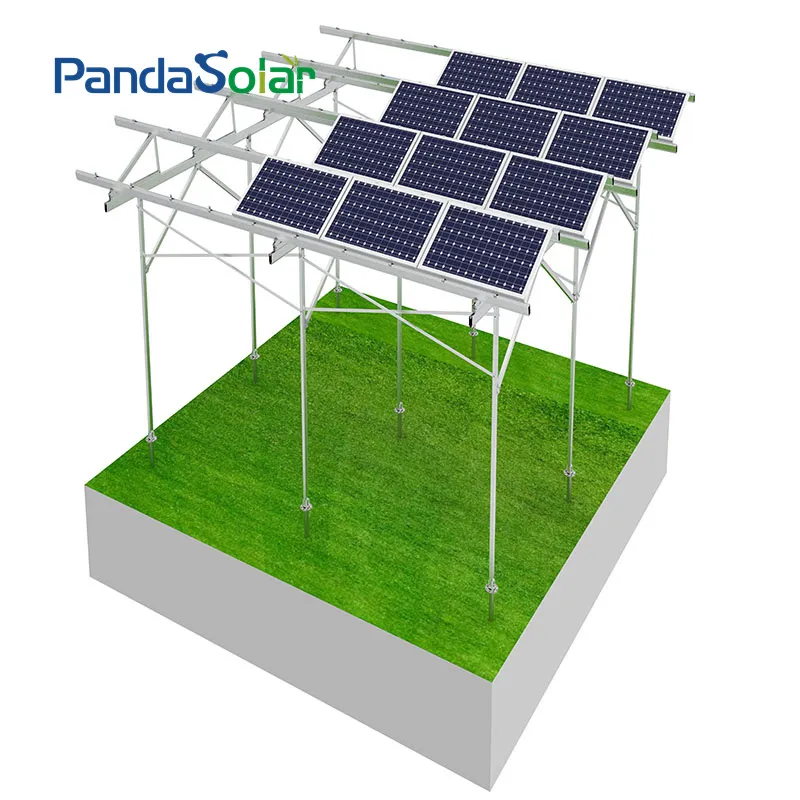

Greenhouse Kits

Quality Certifications

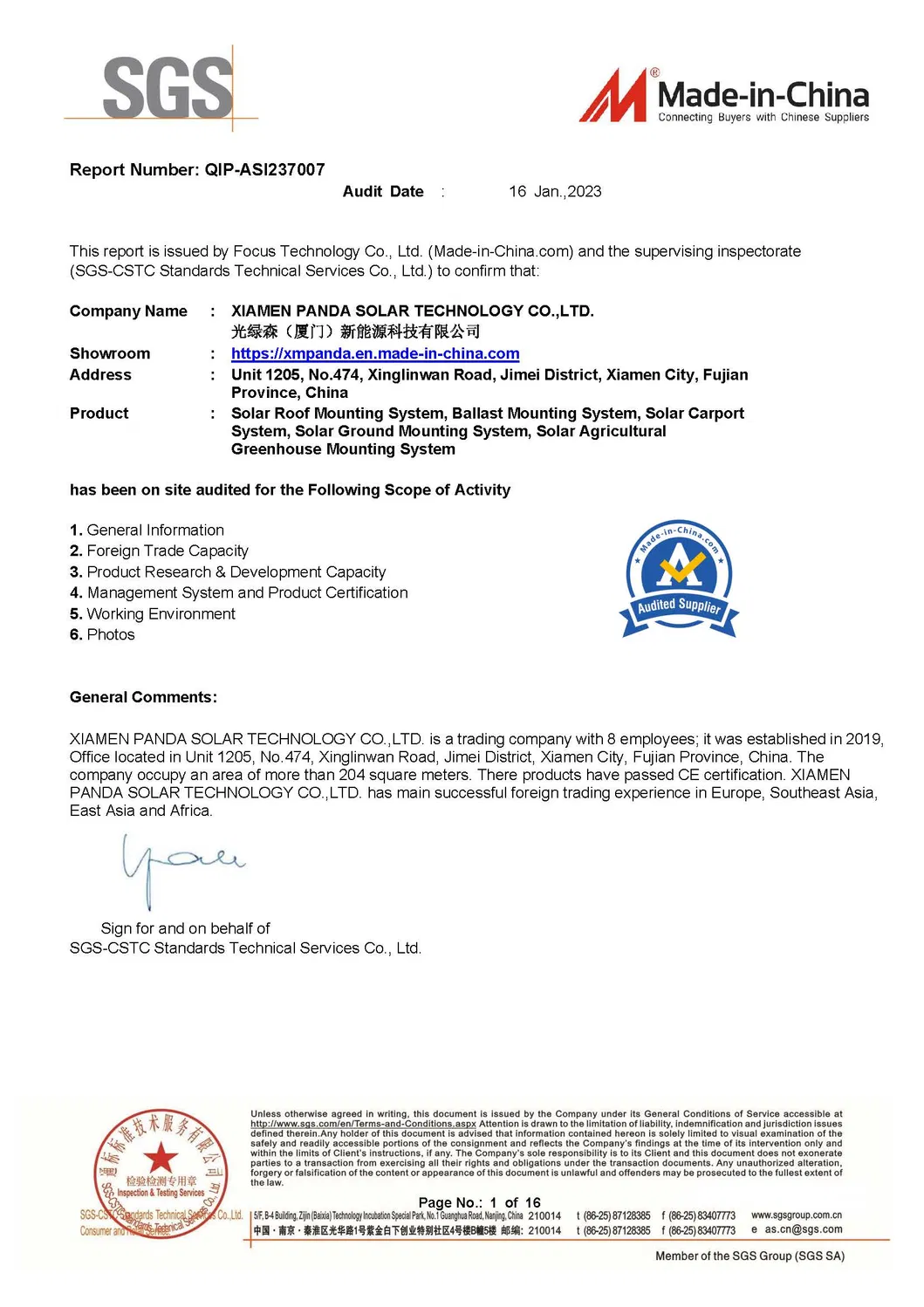

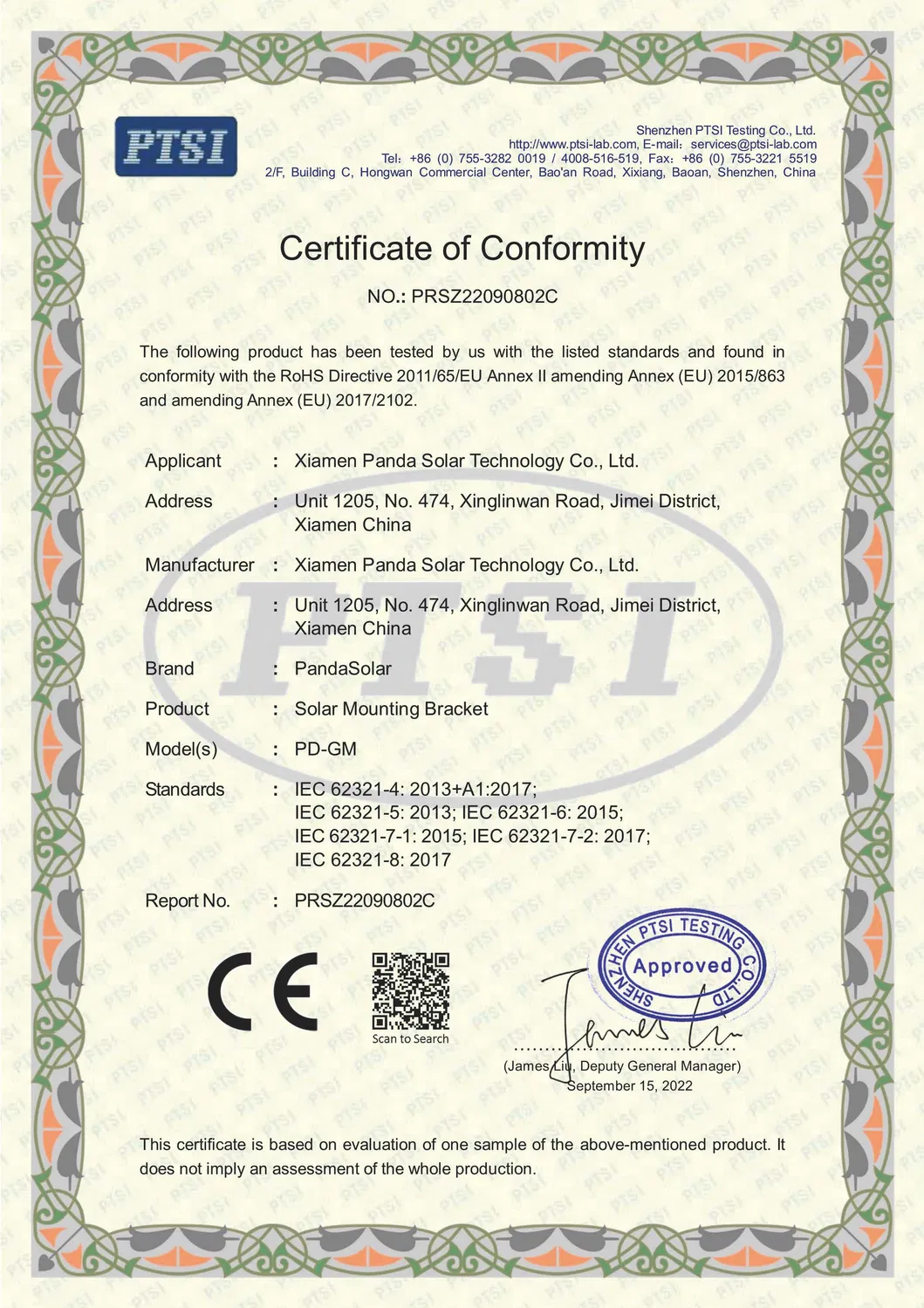

Certificate 1
Certificate 2
Certificate 3

Frequently Asked Questions

What is the typical delivery lead time?
Our standard delivery time is approximately 7-15 days depending on the project scale and customization requirements.
Are free samples available for testing?
Yes, we can provide free samples of components for quality testing and design verification.
Do you offer OEM or custom design services?
Absolutely. We accept OEM services and can customize the mounting structures based on your specific wind speed, snow load, and panel dimensions.
How long is the service life of these mounting systems?
Our systems are designed for a service life of over 25 years, with a standard product warranty of 12 years.
What materials are used for superior corrosion resistance?
We utilize Magnesium Aluminum Zinc and Anodized Aluminum AL-6005-T5, which offer excellent resistance to salt spray and harsh environmental conditions.
Are your mounting systems compliant with international standards?
Yes, our designs strictly follow standards such as AS/NZS 1170, JIS C8955:2017, and the International Building Code (IBC).
