Sete Orthopedic Implants
Sete Orthopedic Implants

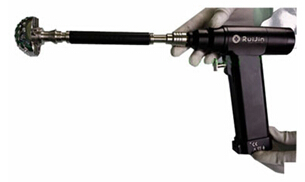

Medical Drill Tools Equipment for Orthopedic Total Arthroplasty Replacement
Medical instruments and devices are broadly applied in traumatic surgery, joint surgery, orthopedic surgery, and neurosurgery operations. These units are suitable for K-wires, intermediary interlocking nail surgery, or arthroscopic surgery. The whole unit is autoclavable, featuring an imported motor to ensure low noise, high speed, and long service life. The machine can adopt various flexible reamers and chucks easily during the surgical process.
| Working Voltage | 14.4V |
| Output Power | 130W |
| Unit Rise in Temp | ≤ 25ºC |
| Input Voltage | AC 220V, 50Hz |
| Charging Time | 3 Hours |
| Speed | 300r/min |
| Non-loaded Noise | 63dB(A) |
| Torque | 33000gcm |

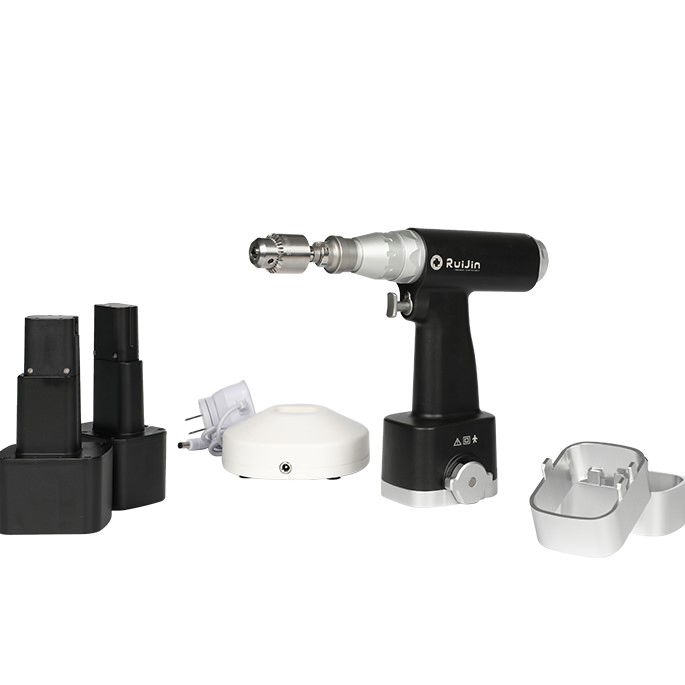

Standard Configuration: Handpiece, Charger, Two Batteries, Sterilizing Channel, Drill Chuck, Aluminum Alloy Box.

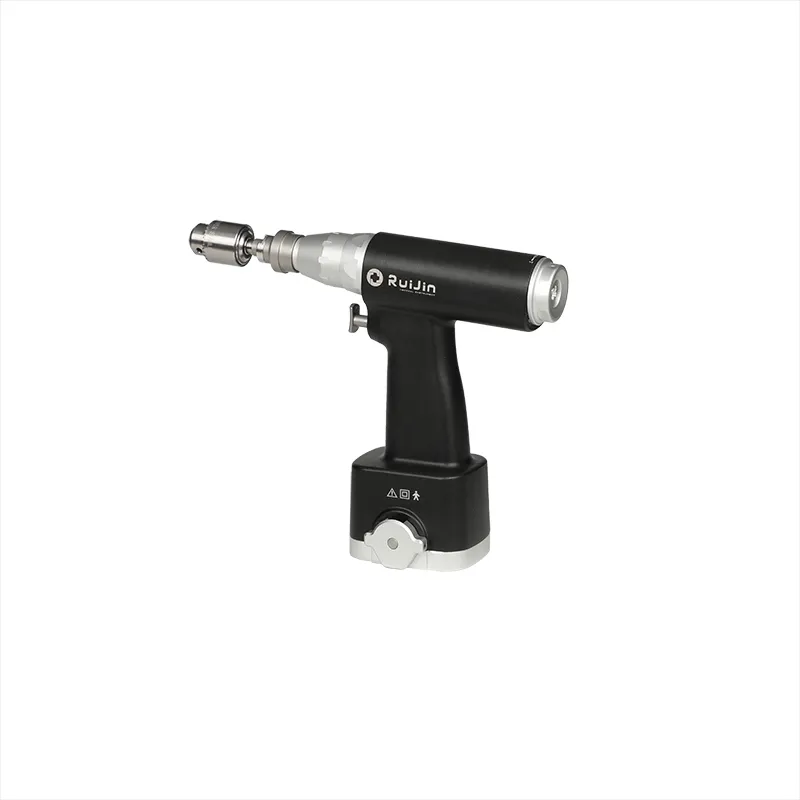

Hip joint drill with various adaptors

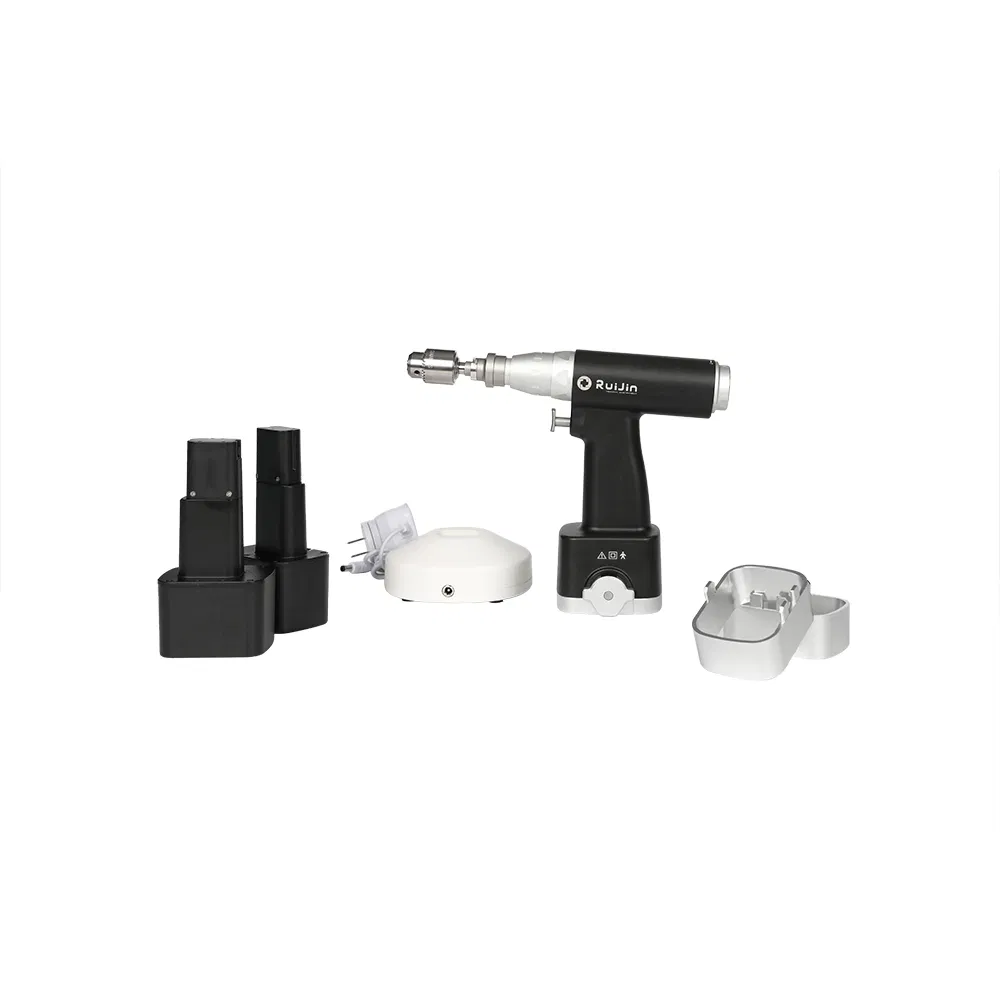

Standard 2pcs batteries included

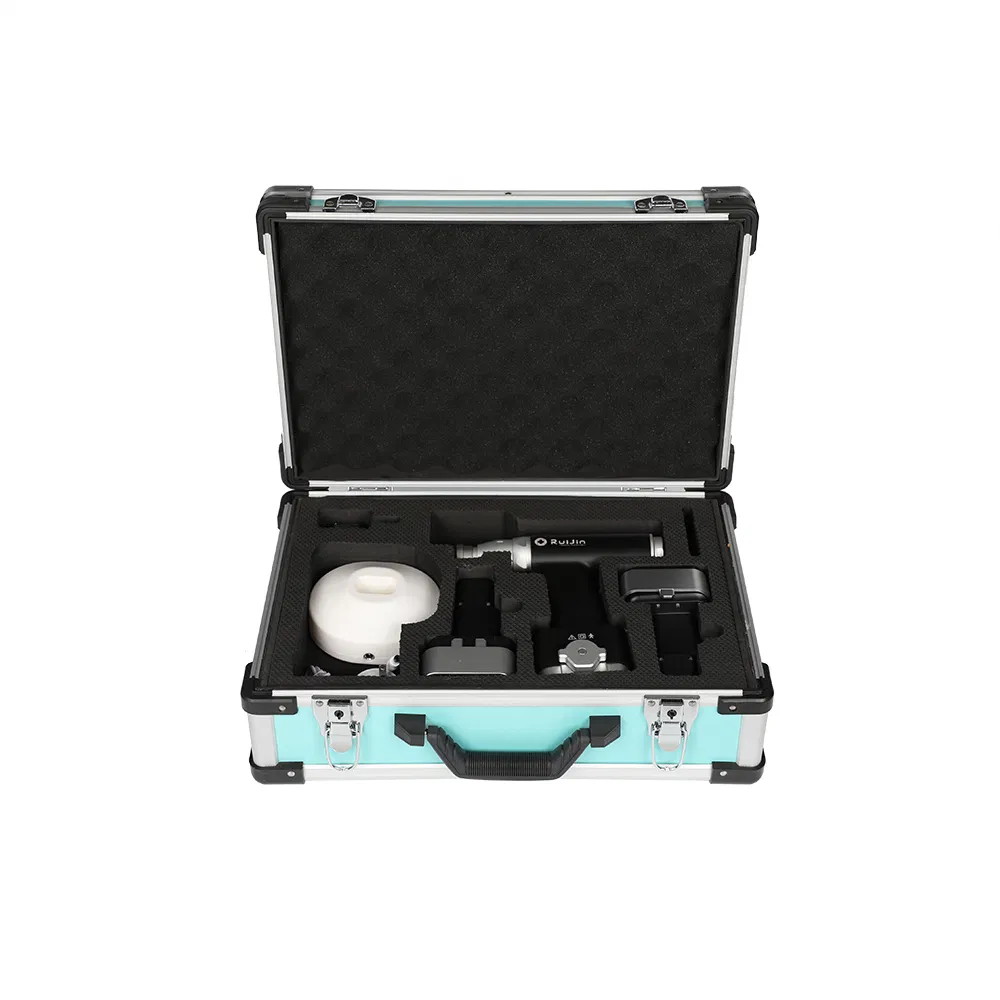

Protective aluminum case for shipping

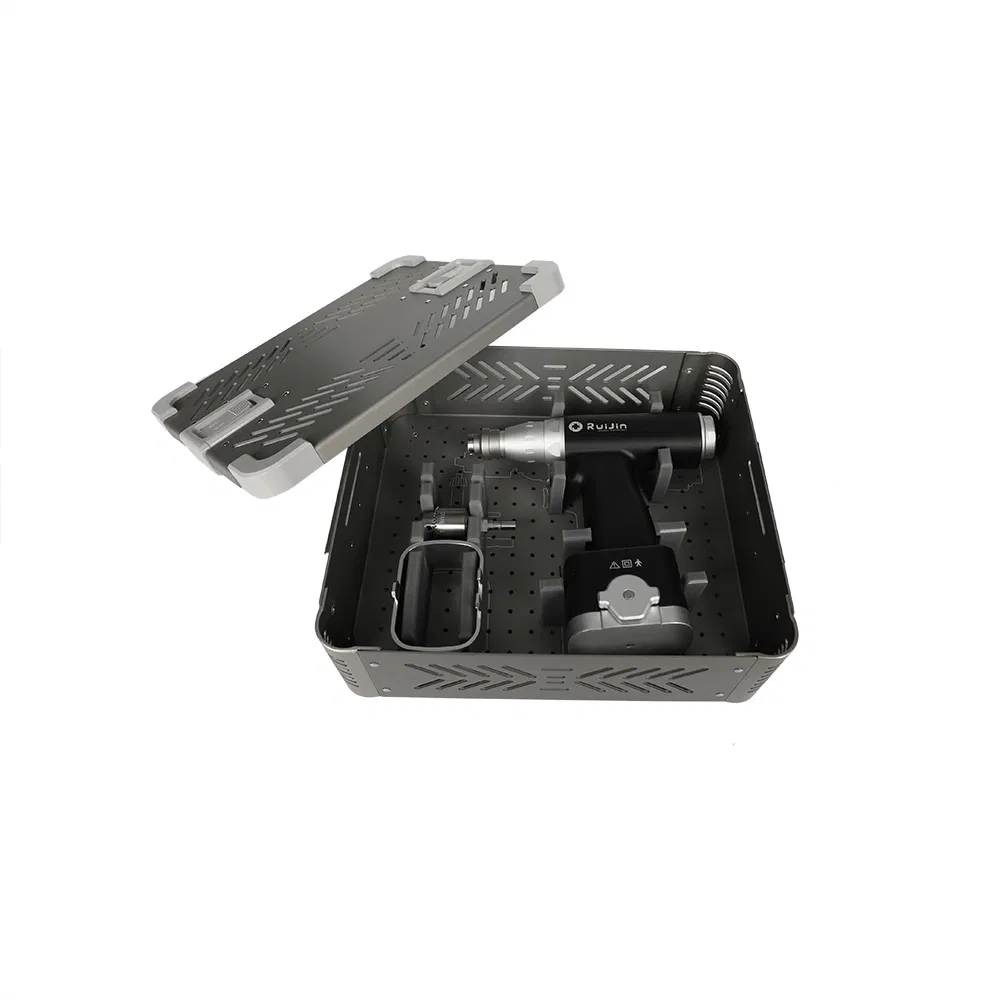

Optional sterilization tray
The manufacturing facility was established in 2007, integrating R&D, production, and sales. The product line focuses on medical drill series and micro medical electric drills, including multifunctional cannulated drills, oscillating saws, and reciprocating saws for trauma and veterinary orthopedic surgery.
1. The sterilization temperature must be lower than 135°C; exceeding this will damage the motor.
2. Batteries must be removed from the handpiece when not in use to prevent automatic discharge.
3. The battery cannot be disinfected. Ensure the battery compartment is dry after sterilization.
4. Clean saw blades and drill bits with a purifier and keep them dry after operation.
