Sete Orthopedic Implants
Sete Orthopedic Implants

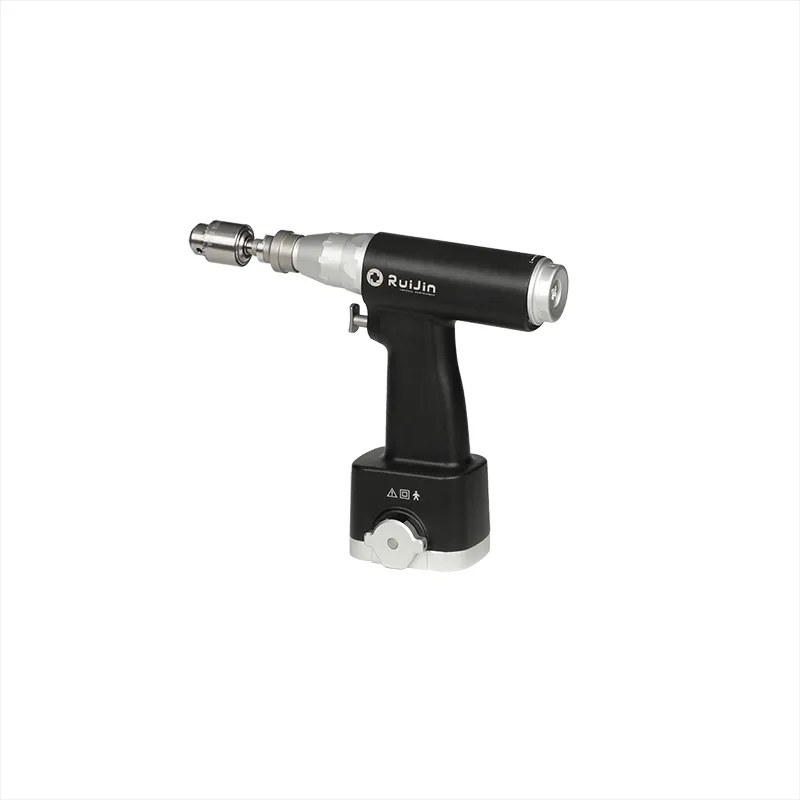

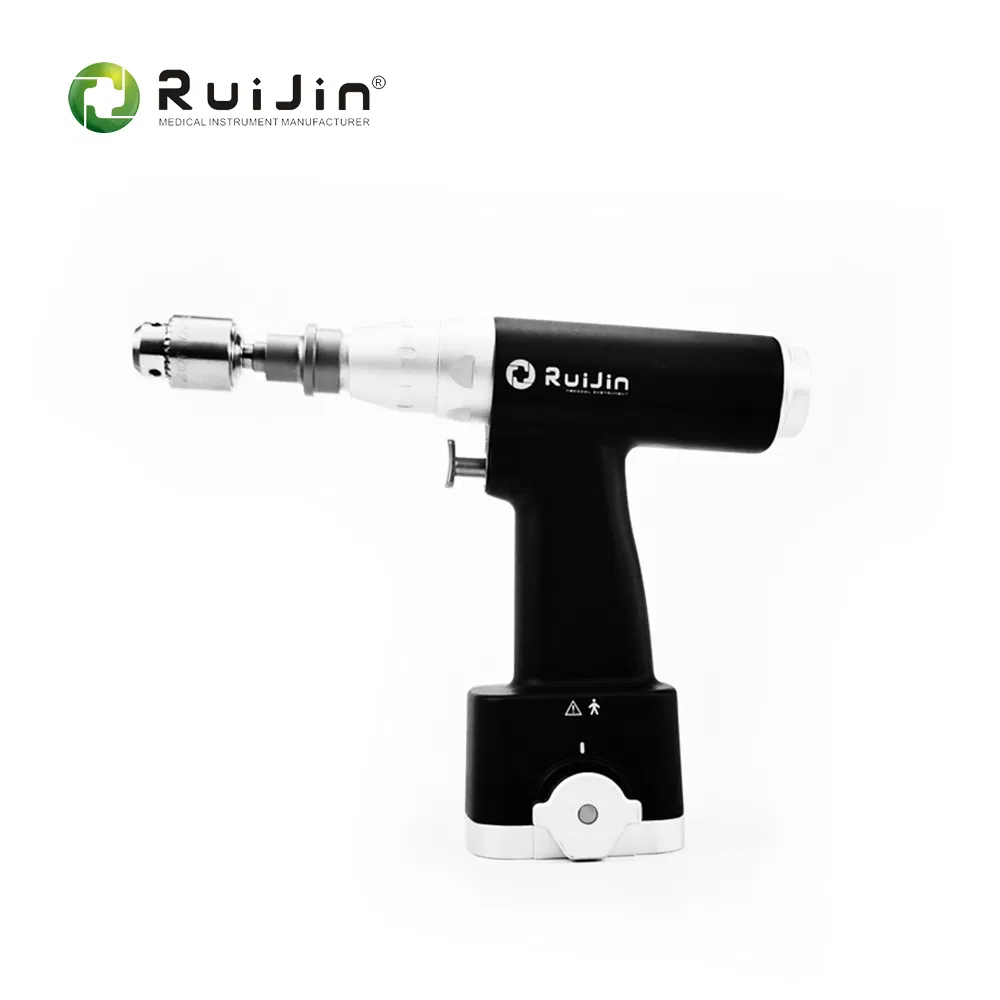

This professional medical equipment for orthopedic surgery features an autoclavable German motor, specifically designed for total hip replacement procedures. These medical instruments are broadly applied in traumatic surgery, joint surgery, neurosurgery, and intermediary interlocking nail or arthroscopic operations.
| Working Voltage | 14.4V | Output Power | 130W |
| Unit rise in Temperature | ≤ 25ºC | Input Voltage | AC 220V, 50Hz |
| Charging time | 3 hours | Speed | 300r/min |
| Non-loaded noise | 63dB(A) | Torque | 33000gcm |
| 1. The device must not be dismantled by non-professionals. |
| 2. Compatible with 110V/60Hz - 220V/50Hz power sources. |
| 3. Remove batteries when not in use to prevent discharge and prolong life. |
| 4. Batteries cannot be disinfected; ensure the battery compartment is dry after sterilization. |
| 5. Sterilization temperature must not exceed 135°C to prevent motor damage. |

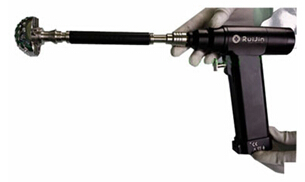

It is primarily designed for Total Hip Replacement but is also widely used in Trauma Surgery, Joint Surgery, Neurosurgery, and Veterinary Orthopedic Surgery.
Yes, the main unit is fully autoclavable at high temperatures and pressures up to 135°C. However, please note that batteries cannot be disinfected.

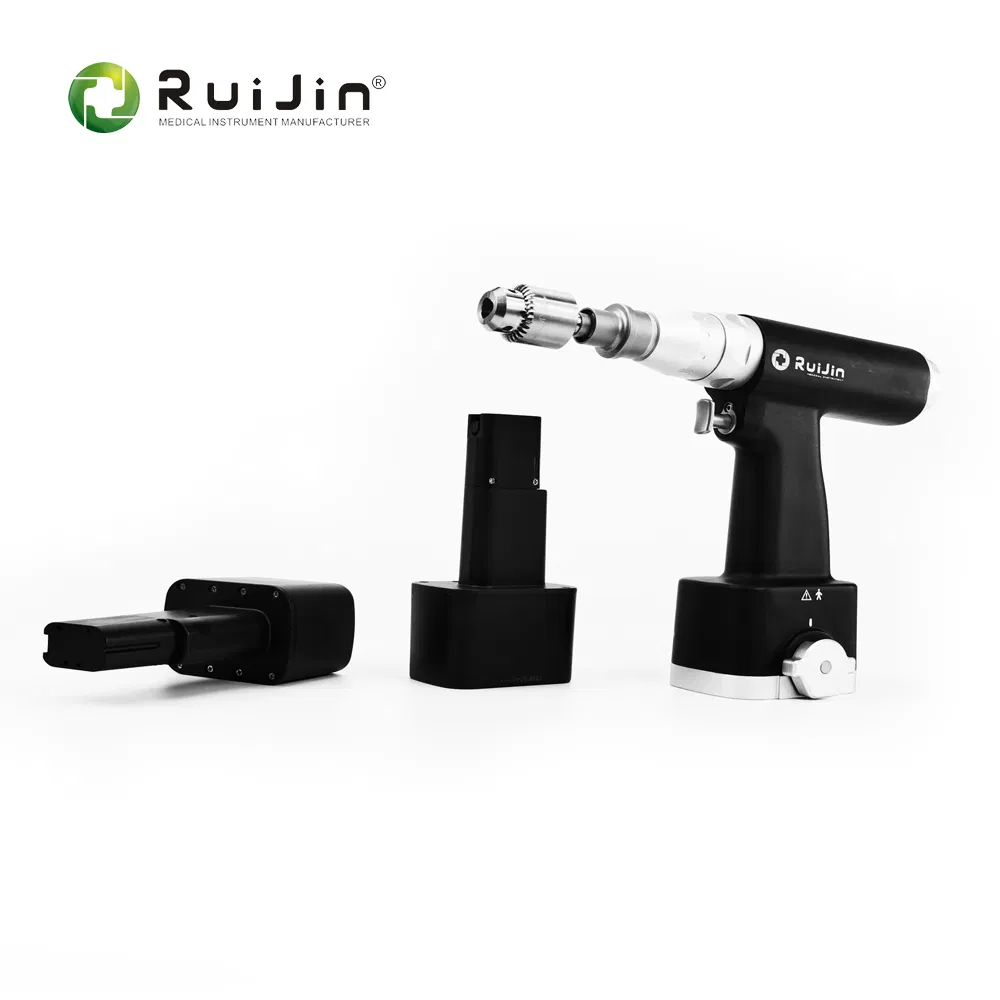

The standard charging time is approximately 3 hours. Each set includes two batteries to ensure uninterrupted surgical operations.
The brushless motor provides high torque at low speeds, low noise (63dB), reduced vibration, and a longer service life compared to traditional motors.
Yes, the hip joint drill can be fitted with various optional adaptors including Stryker, AO, Hudson, and Synthes types.

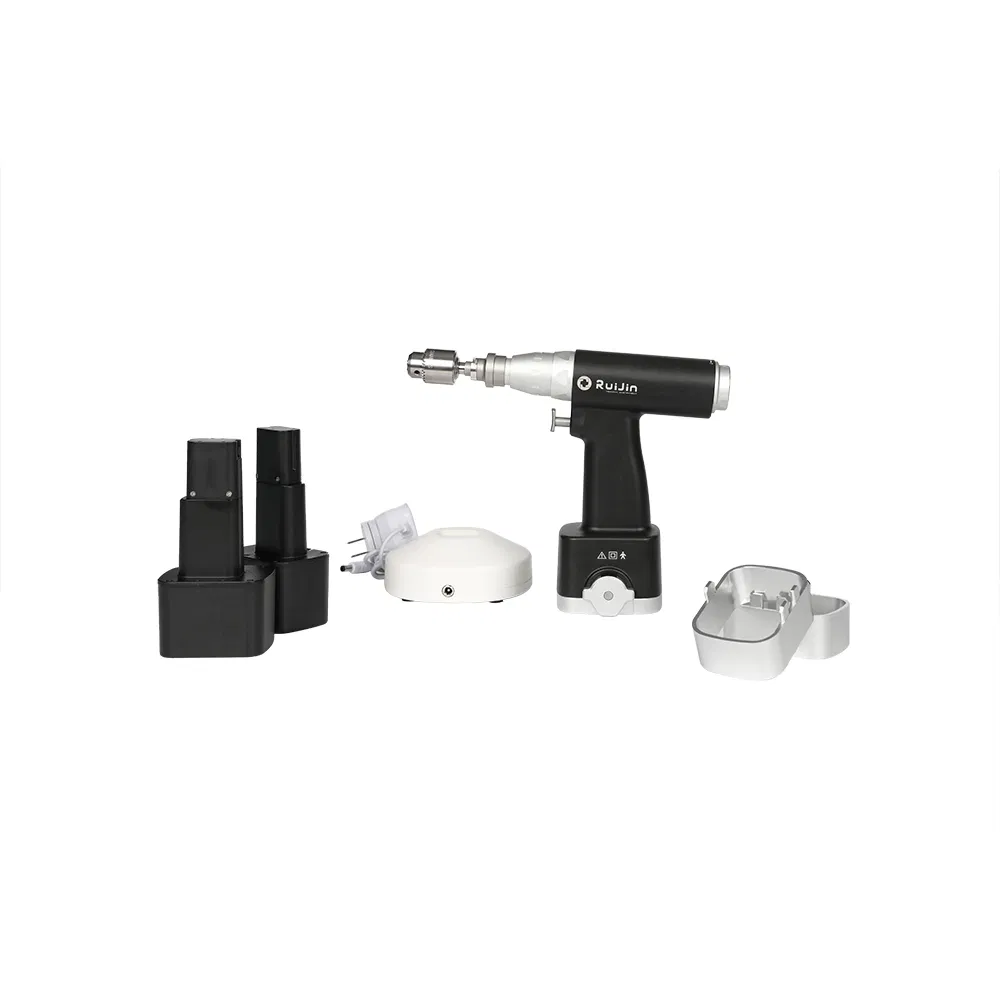

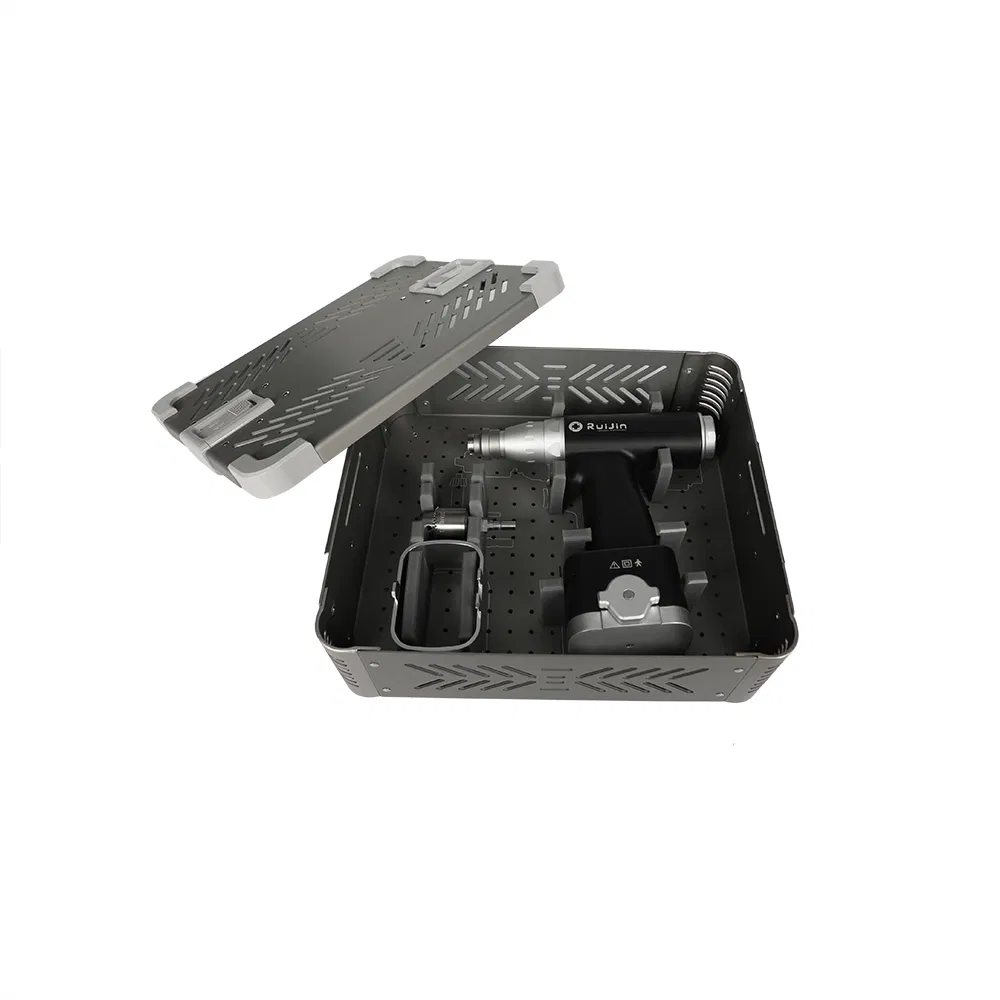

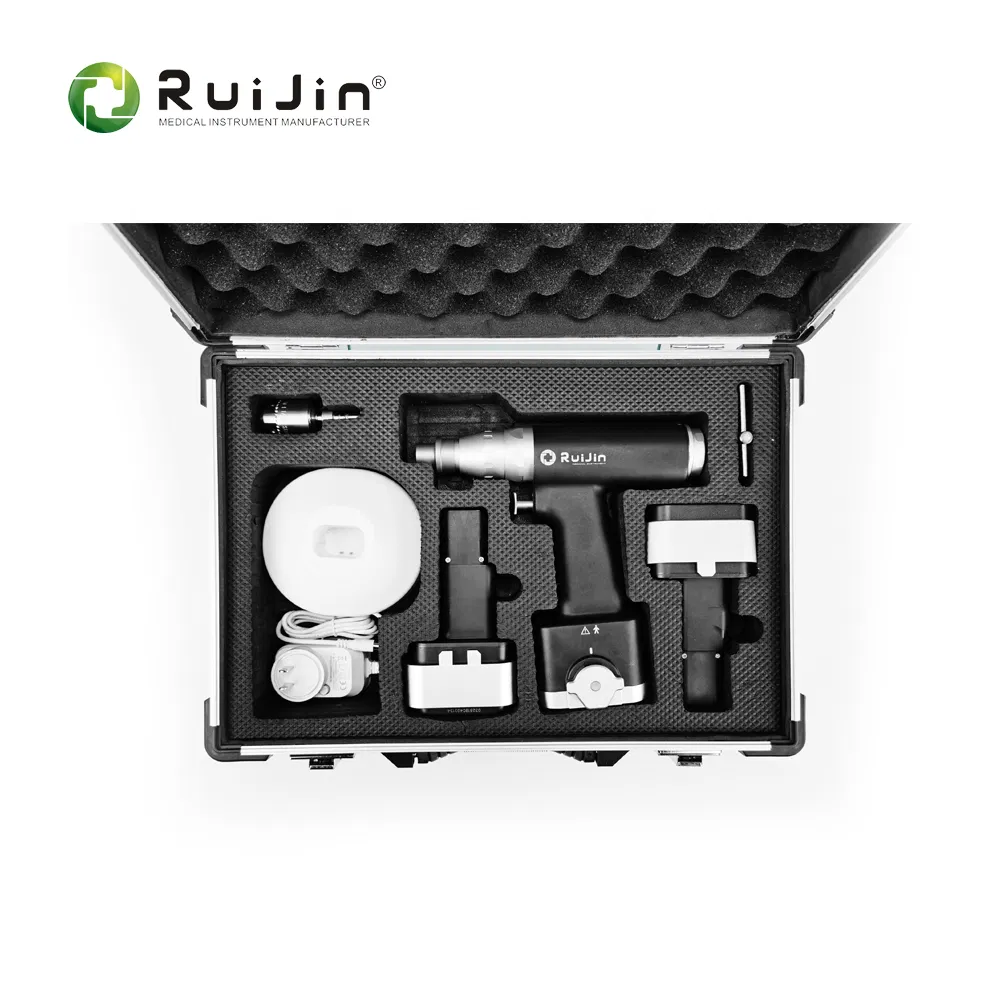

The standard set includes one handpiece, one charger, two batteries, one sterilizing channel, one drill chuck, and a protective aluminum alloy box.
