China Factory Nx Medical Orthopedic Trauma Implant Titanium Retrograde Tibial Intramedullary Nail

Still deciding? Get samples of $ !
Request Sample

Product Description

📋Product Overview & Basic Info
Model NO.:
NXGGK01
Sterilization:
Without Ethylene Oxide Sterilization
Guarantee Period:
Two Years
Group:
Adult
Certification:
ISO, CE
Usage:
Fracture Fixation
Using Site:
Tibia
Origin:
China
Capacity:
50000 PCS/Year

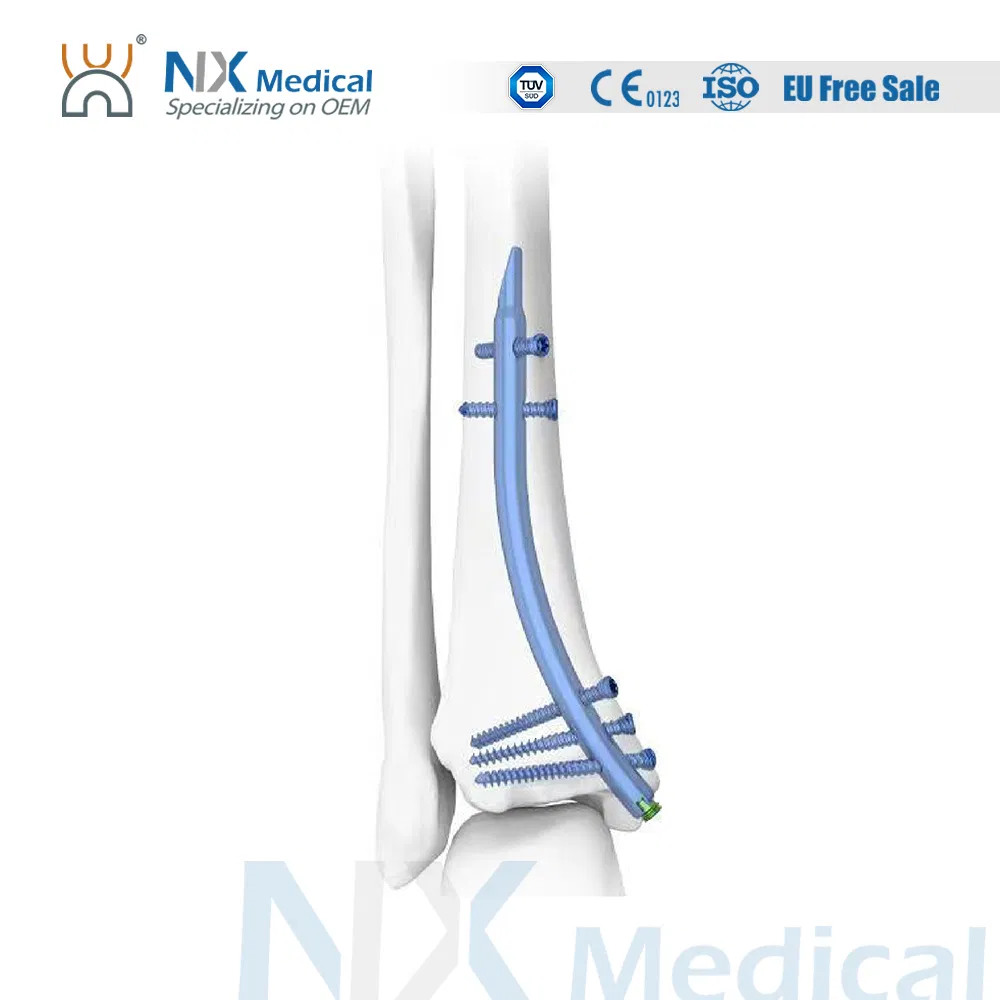

⚙️Retrograde Tibial Nail System

Key Features and Benefits:

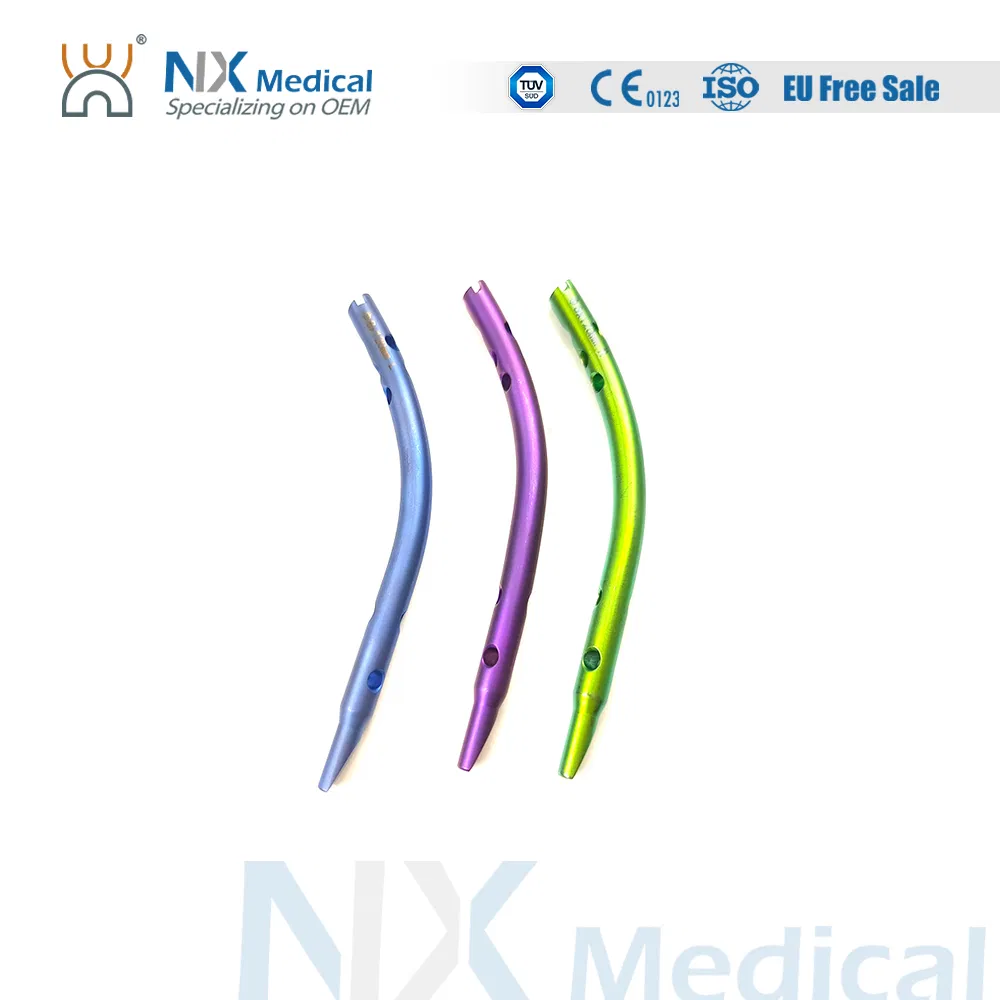

  • Colour coding to easily differentiate nail sizes
  • Proximal oblique cutting design of the nail reduces irritation to soft tissues of medial malleolus
  • Two proximal interlocking screws avoid fracture rotation and displacement
  • Distal flat cutting design of the nail avoides the insertion difficulties
  • Three distal divergent locking screws provides effective support/fixation
  • Advanced and friendly-using instruments facilitate nail insertion
  • Carbon fiber jigs facilite first distal screw insertion position preparation
📏Product Specifications

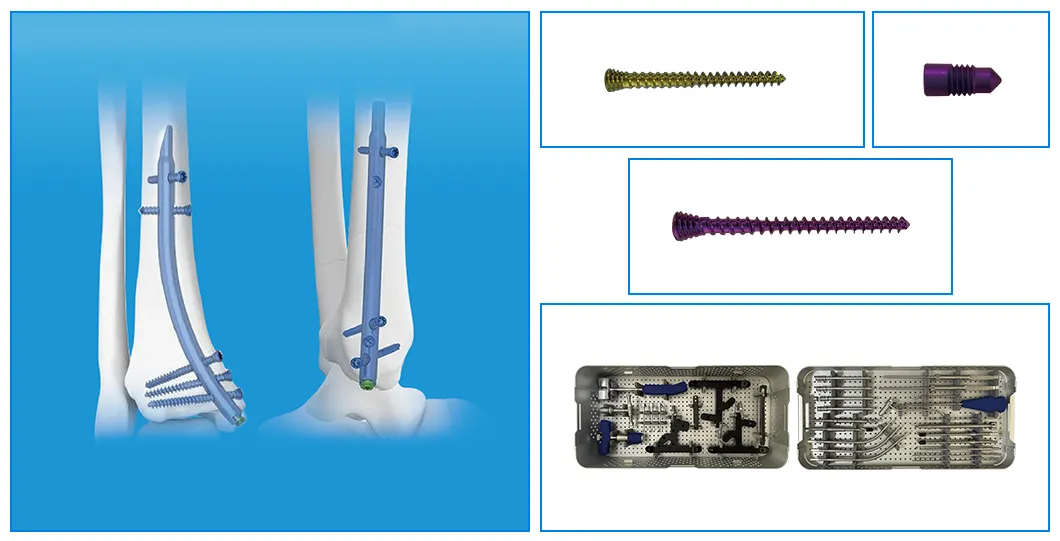

Product Size / Length (mm) Material

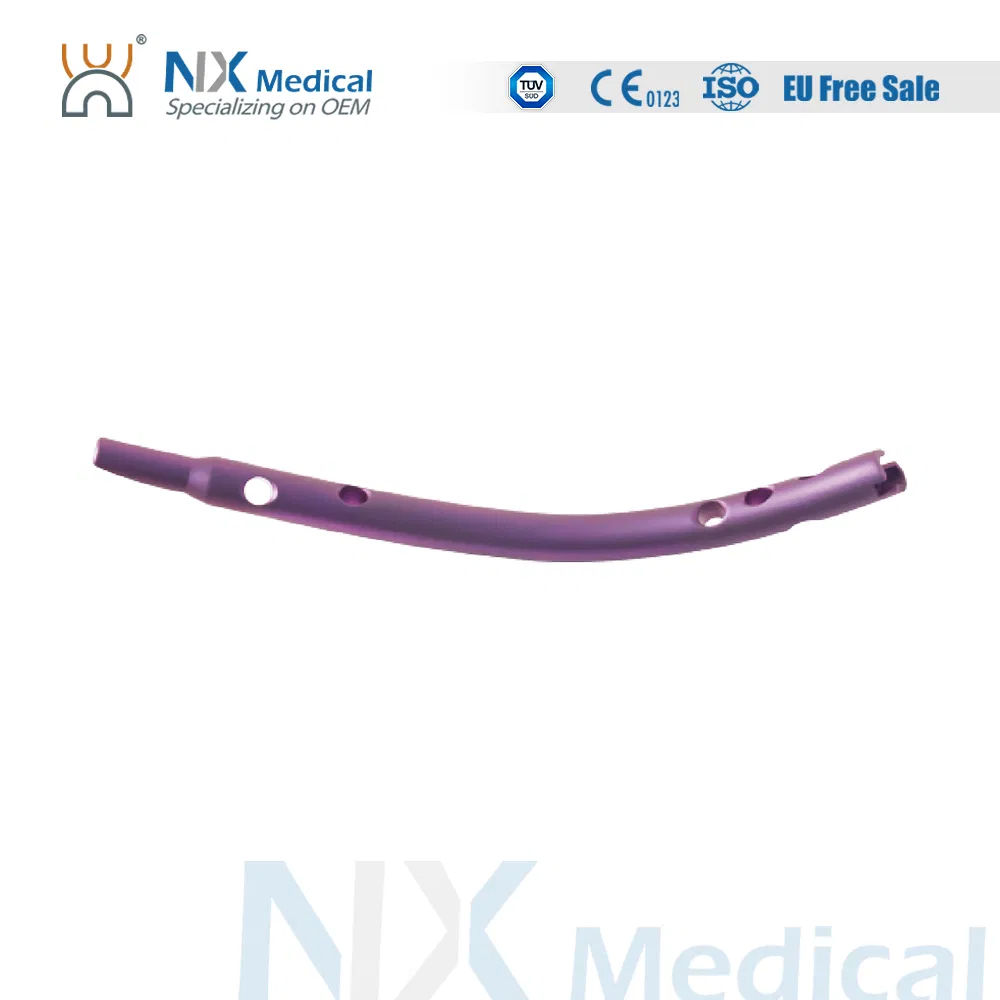

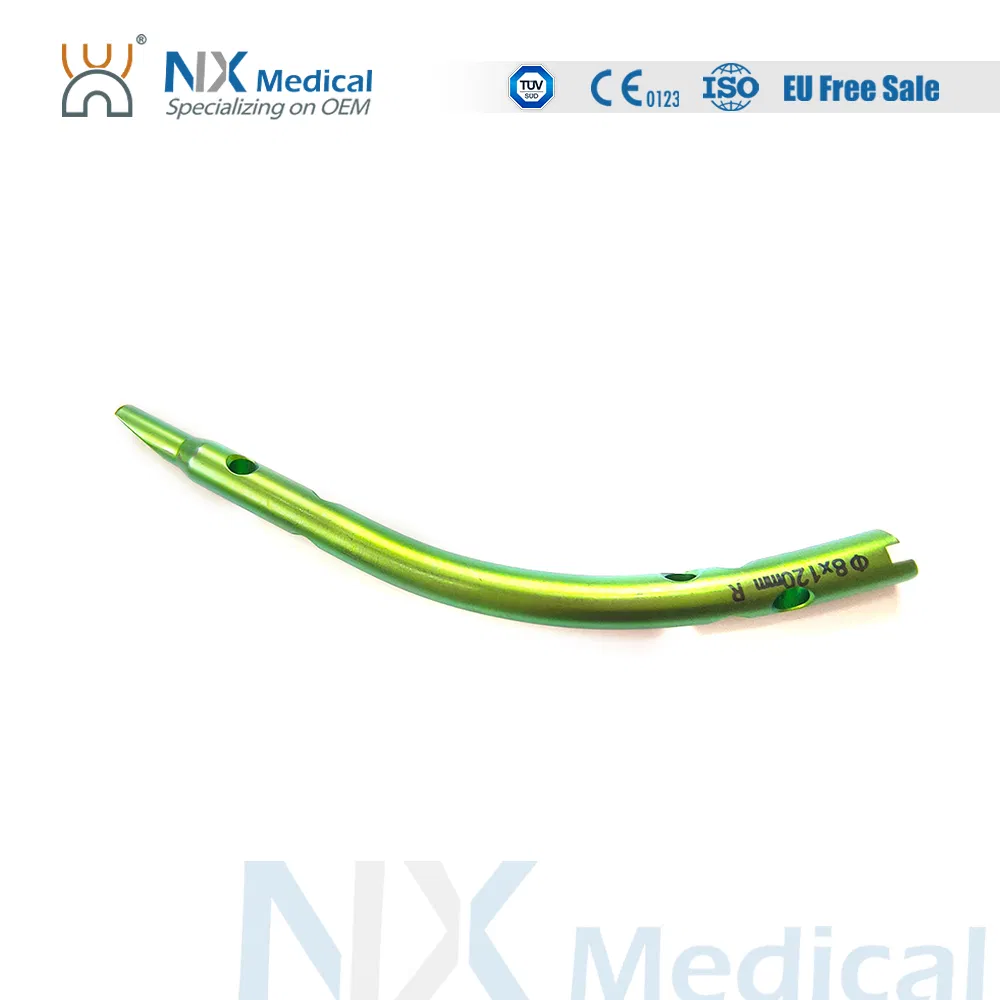

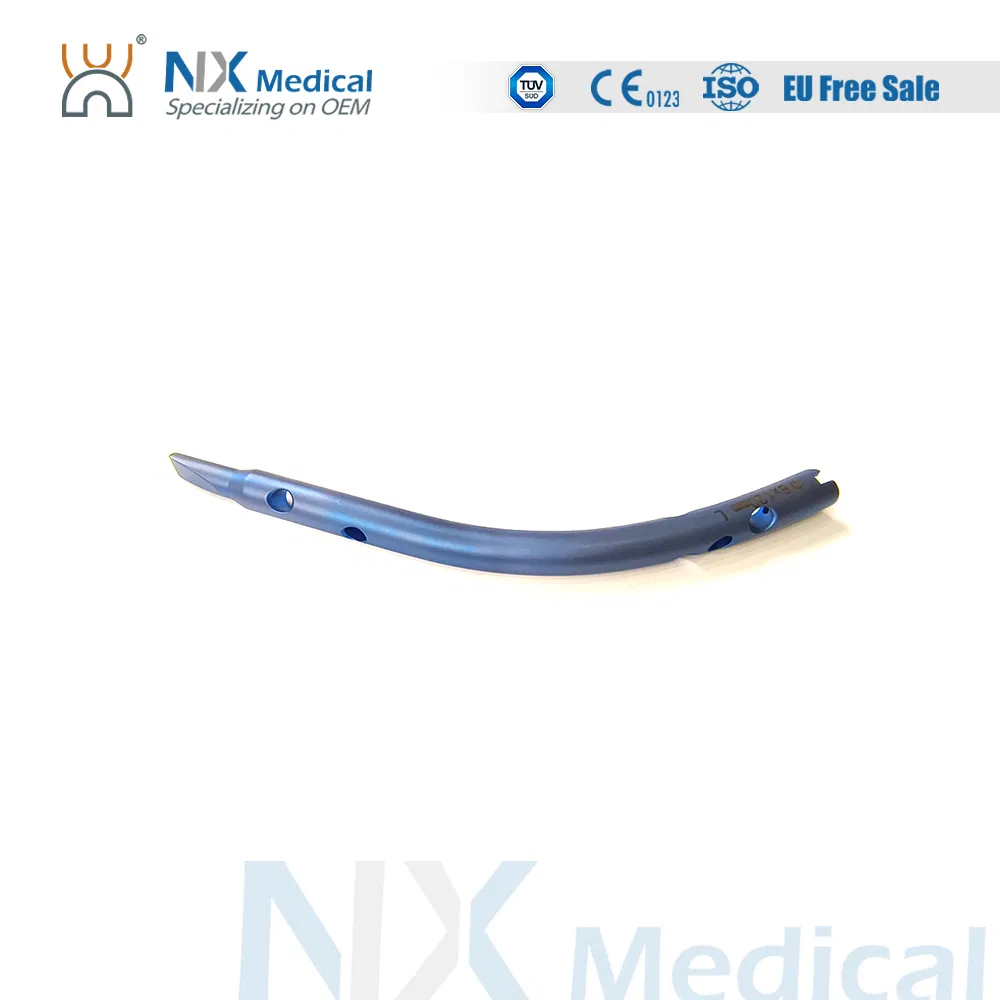

Retrograde Tibial Nail 7 x 110 / 8 x 120 / 8 x 140 TA (Titanium)
Interlocking Cancellous Screw (φ3.5mm) 30 - 52 (in 2mm increments) TA (Titanium)
Interlocking Cortical Screw (φ3.5mm) 18 / 20 / 22 / 24 / 26 / 28 TA (Titanium)
Interlocking Cortical Screw (φ4.0mm) 24 / 26 / 28 / 30 / 32 / 34 TA (Titanium)
End Cap Standard / 5mm TA (Titanium)

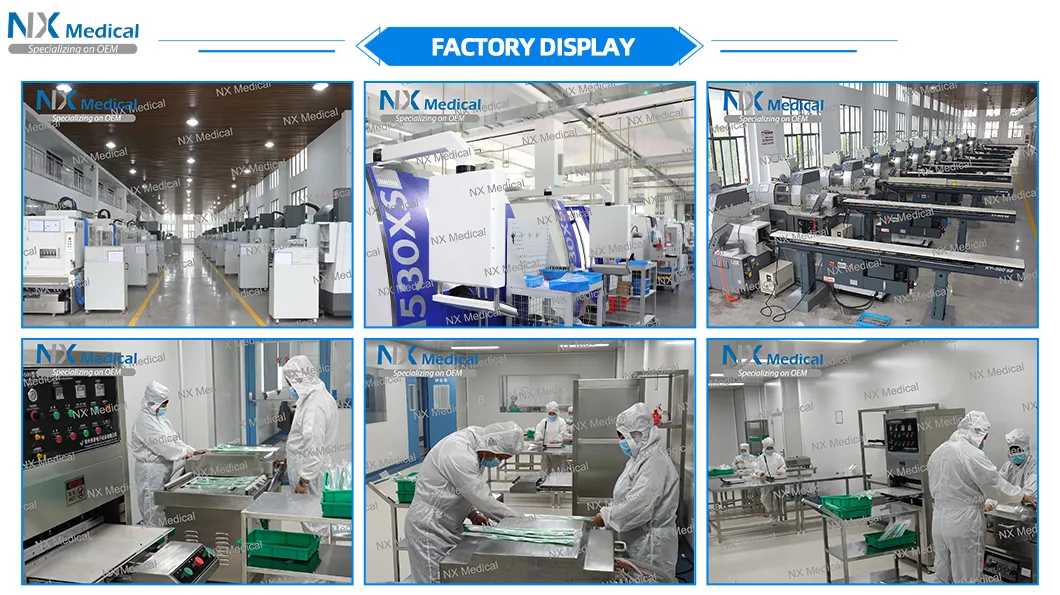

🏢About Our Manufacturing

We are one of the leading Orthopedic product manufacturers. We provide a comprehensive range of cost-effective surgical and reliable therapeutic solutions to Orthopedic surgeons and patients. We offer superior and various kinds of Orthopedic trauma implants, spinal implants and surgical instruments worldwide. We are committed to the global Orthopedic industry with continuous investment in R&D.

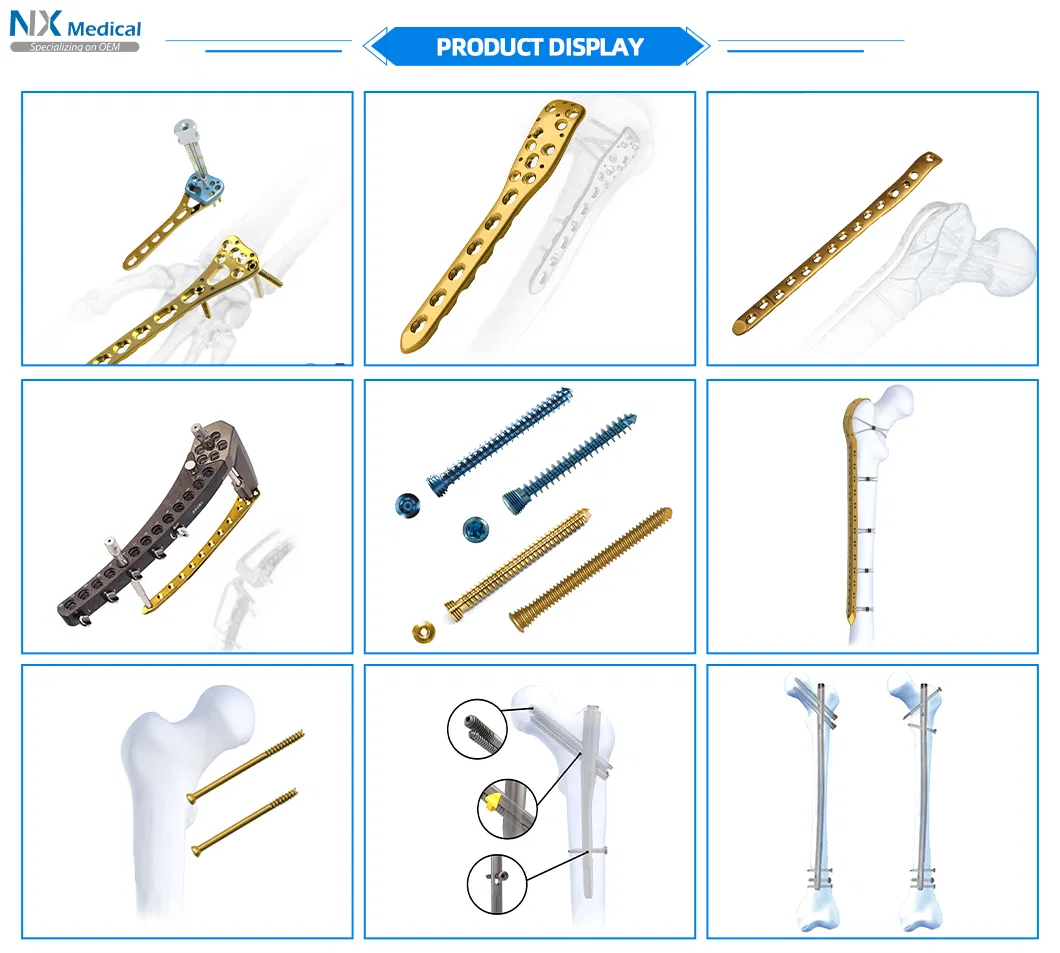

Our major categories include locking plates, Intramedullary nails, cannulated headless screws, and cable systems. For spinal systems, we offer cervical plates, pedicle screws, PEEK cages, and expandable cages. We have established a strict quality system and are in compliance with ISO13485, with products certified by TUV CE0123.

📜Certifications
Frequently Asked Questions
Q1: Can I request a sample order for quality testing?
A: Yes, we welcome sample orders to test and check quality. Mixed samples are also acceptable.
Q2: Do you offer customized medical device services?
A: Yes, we have a complete design and drawing department along with CNC machinery to provide high-precision customized services.
Q3: How is the ordering process handled?
A: First, let us know your requirements. Second, we provide a quote based on your needs. Third, once the sample is confirmed, a formal order is placed, and finally, we arrange production.
Q4: Can you provide products with custom branding or logos?
A: Yes, we can print your logo on both the products and the packaging, provided our minimum order quantity (MOQ) requirements are met.
Q5: How do you ensure the quality of the orthopedic implants?

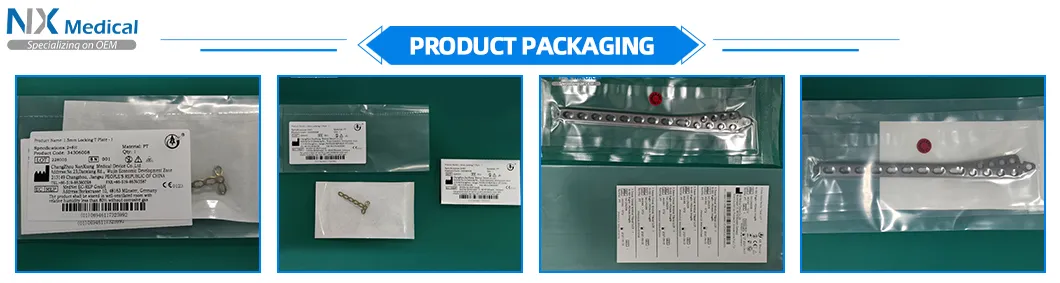

A: We conduct strict sampling inspections on all products before shipment and ensure that the product packaging remains intact to maintain sterilization standards.
Q6: What is the typical lead time for samples?
A: For existing items, samples are ready within 3 days. For OEM or customized products, the process typically takes approximately 2 weeks.
