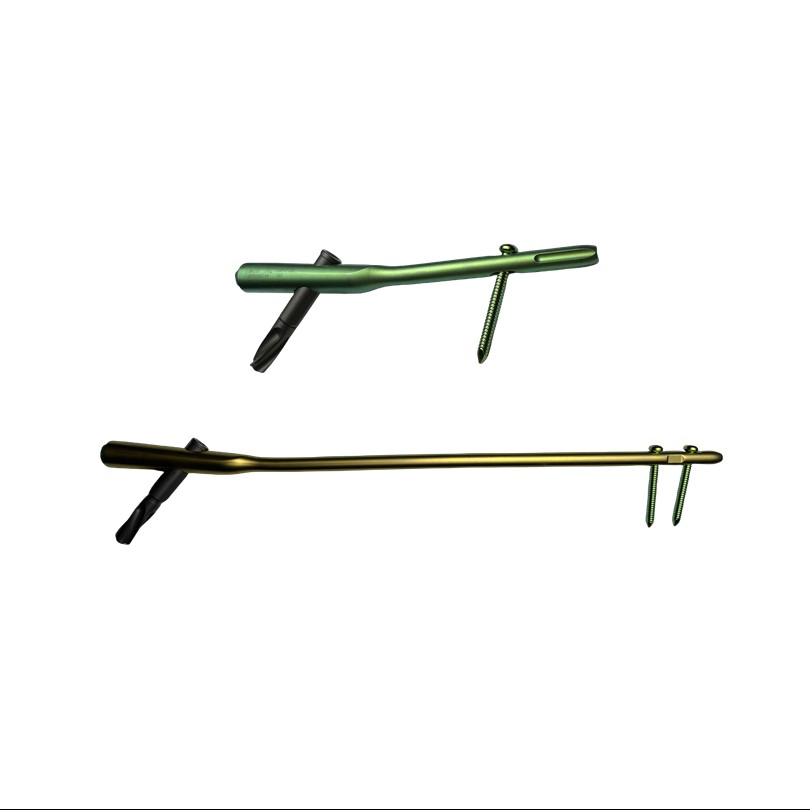

Orthopedic PFNA Femoral Implant PFN Proximal Femur Intramedullary Interlocking Nail
Orthopedic PFNA Femoral Implant PFN Proximal Femur Intramedullary Interlocking Nail
Orthopedic PFNA Femoral Implant PFN Proximal Femur Intramedullary Interlocking Nail
Orthopedic PFNA Femoral Implant PFN Proximal Femur Intramedullary Interlocking Nail
Orthopedic PFNA Femoral Implant PFN Proximal Femur Intramedullary Interlocking Nail
1 / 5
Orthopedic PFNA Femoral Implant PFN Proximal Femur Intramedullary Interlocking Nail
Orthopedic PFNA Femoral Implant PFN Proximal Femur Intramedullary Interlocking Nail
Orthopedic PFNA Femoral Implant PFN Proximal Femur Intramedullary Interlocking Nail
Orthopedic PFNA Femoral Implant PFN Proximal Femur Intramedullary Interlocking Nail
Orthopedic PFNA Femoral Implant PFN Proximal Femur Intramedullary Interlocking Nail

Orthopedic PFNA Femoral Implant PFN Proximal Femur Intramedullary Interlocking Nail

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information
Model NO.:SGM-IIK
Material:Titanium Alloy

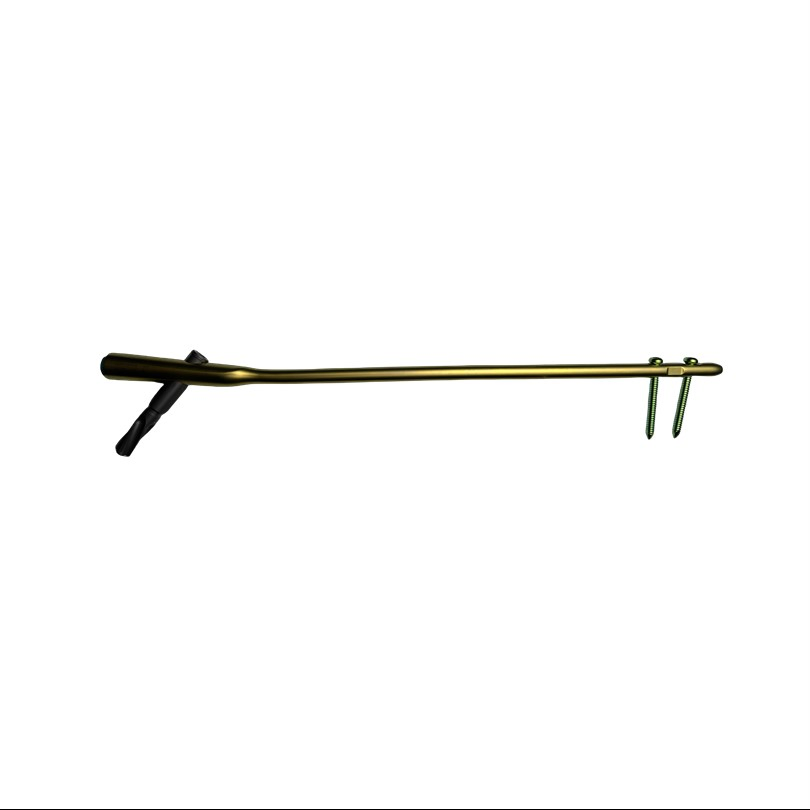

Product Name:Proximal Femoral Nail, Long
Diameter:9.0/10.0/11.0mm
Angle:130°
Direction:Left/Right
Length:320-420mm
Origin:China
HS Code:9021100000
Capacity:10,000 Sets/Year
Product Overview
Proximal Femoral Nail System

Model: SGM-IIK

Product Features:
Medial-lateral angle of 5°, allowed to be placed from the top of the greater trochanter.
The flattened proximal lateral design makes it easier for nail insertion.
Optimal stress distribution.
The elastic tip and groove design make it easier to insert the nail.
Avoid stress concentration at the far end.

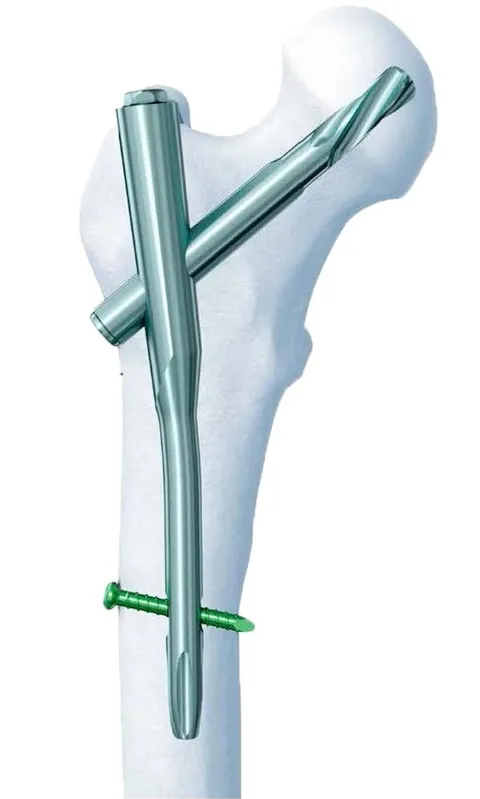

Proximal Femoral Nail System

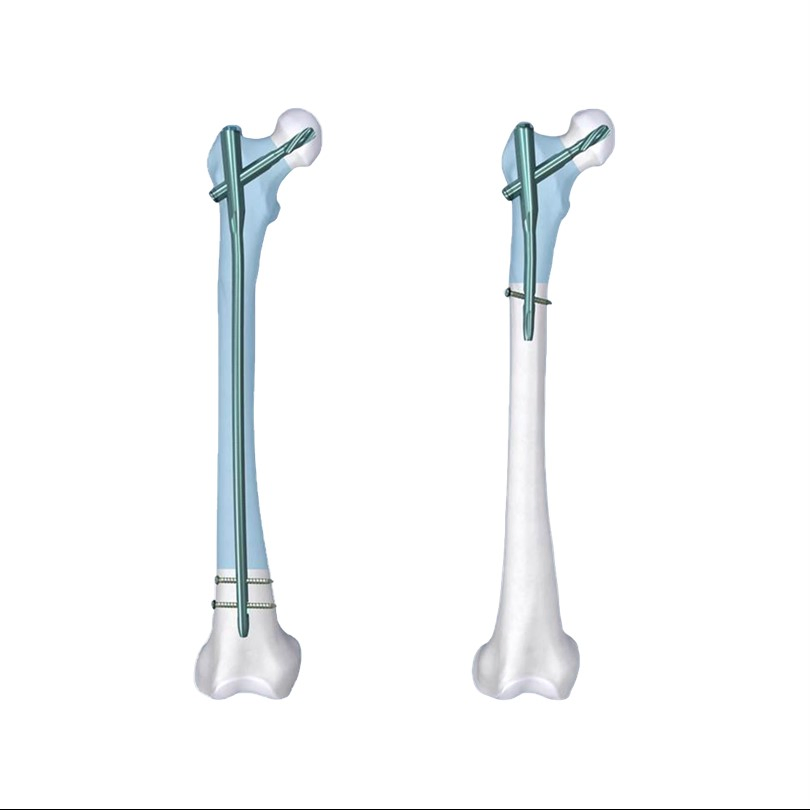

Clinical Indications

Standard PFNA:

  • Intertrochanteric fracture (31-A1, 31-A2)
  • Reverse intertrochanteric fracture (31-A3)
  • High position Subtrochanteric fracture

Long PFNA:

  • Low and extended subtrochanteric fractures
  • Ipsilateral trochanteric fracture
  • Multiple fractures in the proximal femur
  • Pathological fracture
Technical Specifications
Product Name Specification Details
Proximal Femoral Nail Diameter: 9.0/10.0/11.0/12.0mm | Angle: 130° | Length: 170-240mm

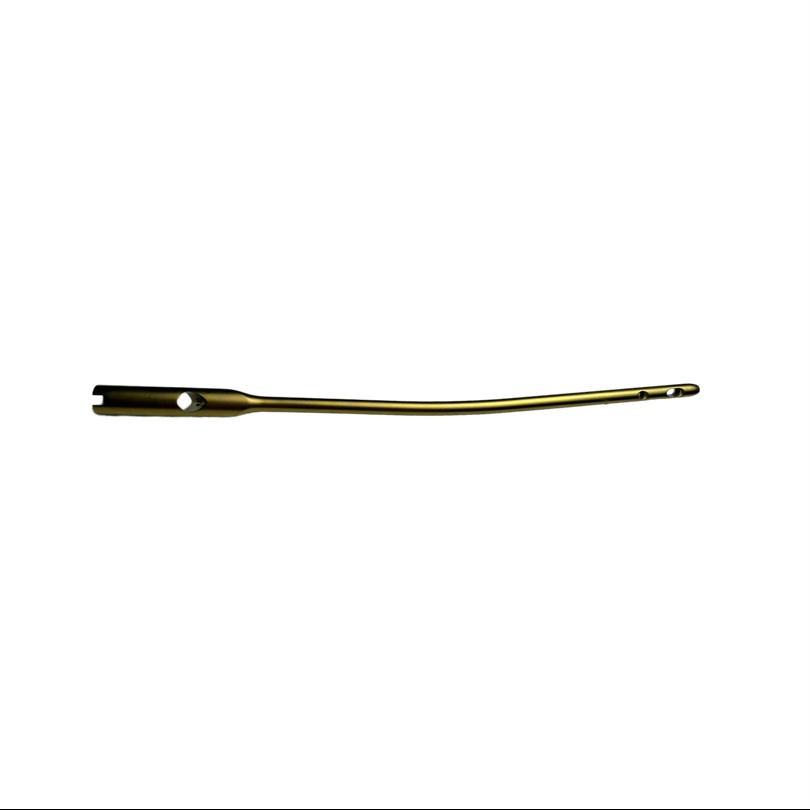

Proximal Femoral Nail, Long Diameter: 9.0/10.0/11.0mm | Angle: 130° | Left/Right | Length: 320-420mm

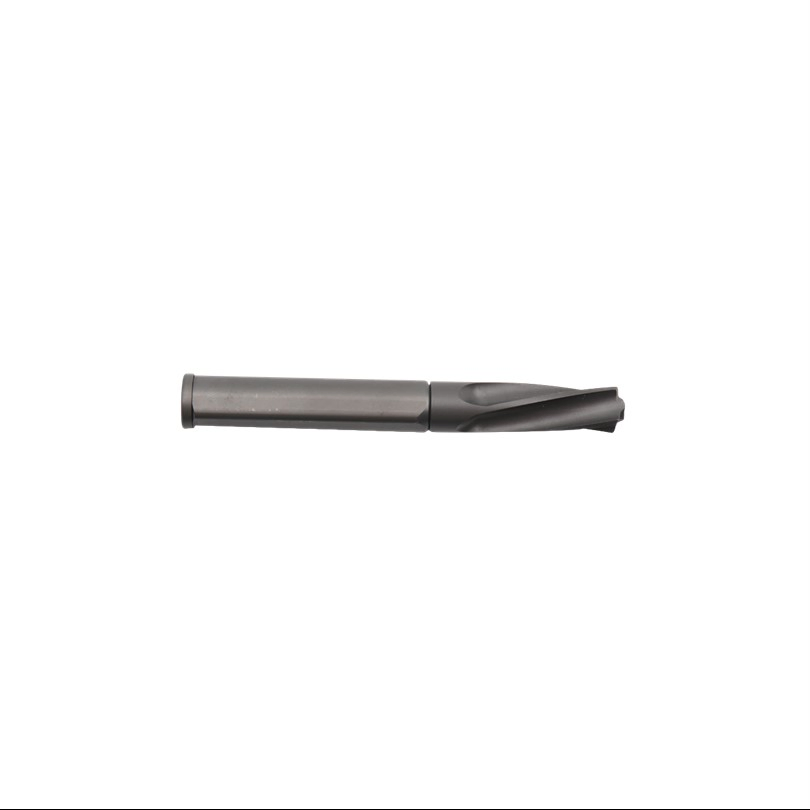

Helical Blade Diameter: 10.5mm | Length: 70-120mm
Locking Bolt Diameter: 4.9mm | Length: 30-72mm
End Cap Diameter: 10mm | Length: 15-35mm
Detailed Product Views

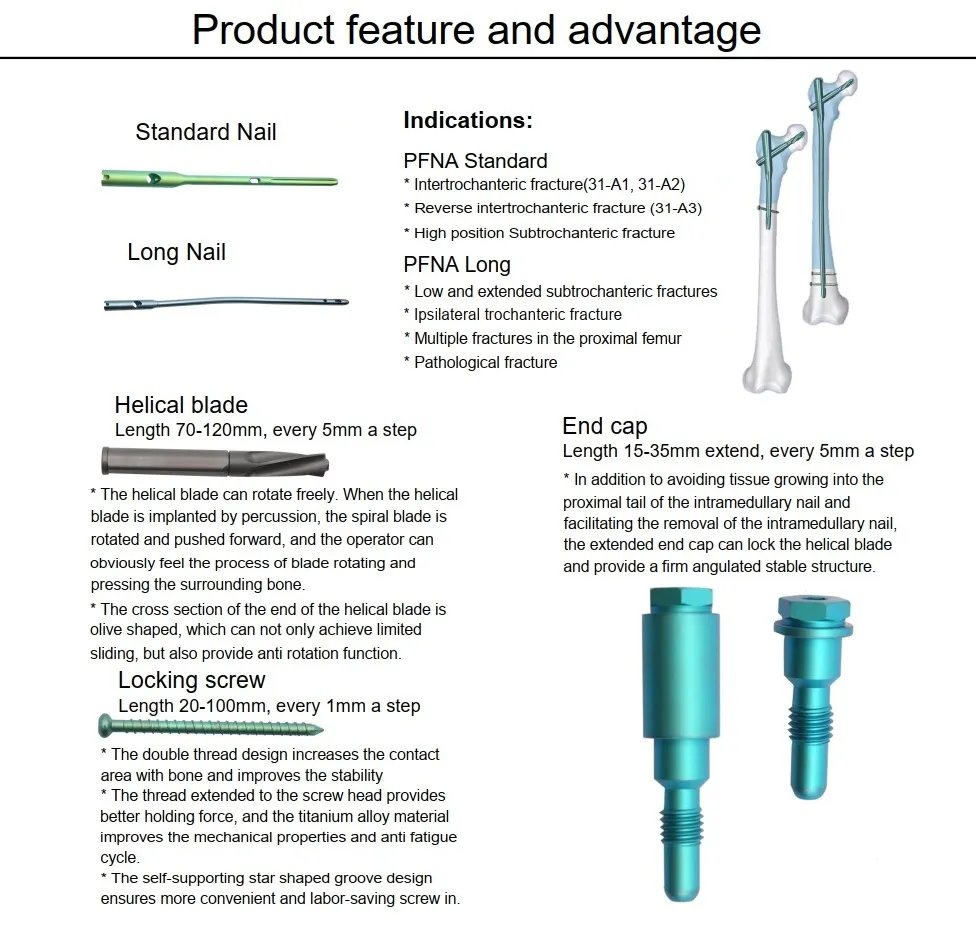

Product Detail 1

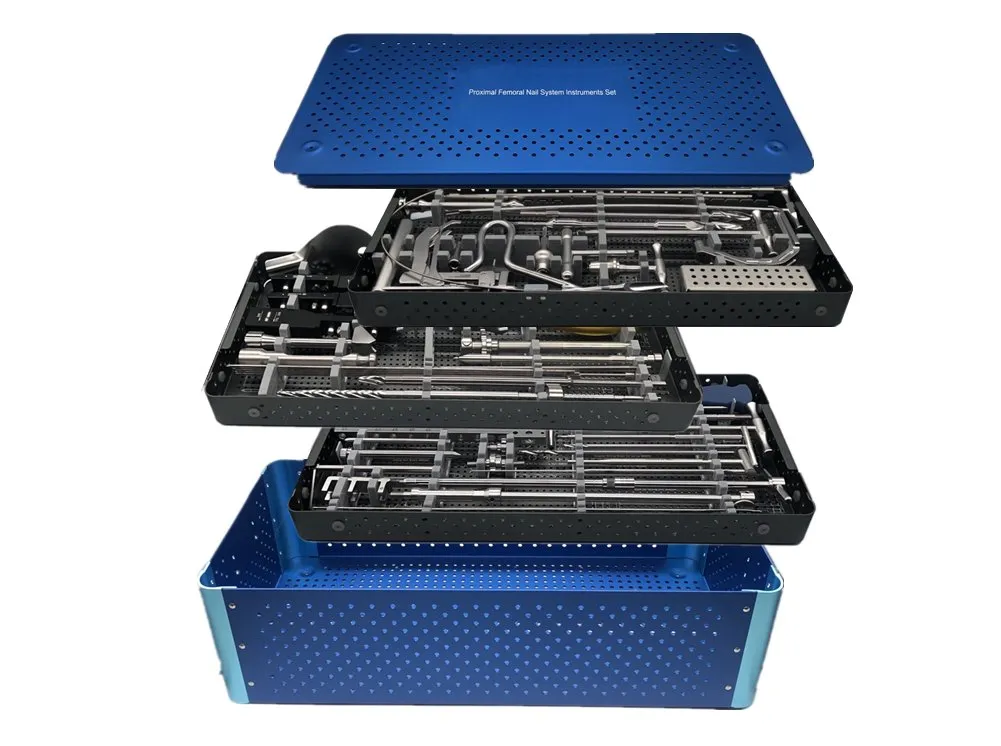

Product Detail 2
Packing & Delivery

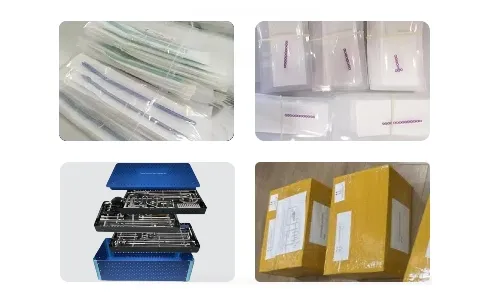

Packing Solution
Delivery Process

Packing Details:

- Implants: Inner plastic bag + outer carton box.
- Instruments Set: Inner instruments box + outer carton box.
- Customized packing design service also available.

Delivery Method:

- Global shipping via air, DHL, UPS, FedEx, etc.

Manufacturing Excellence

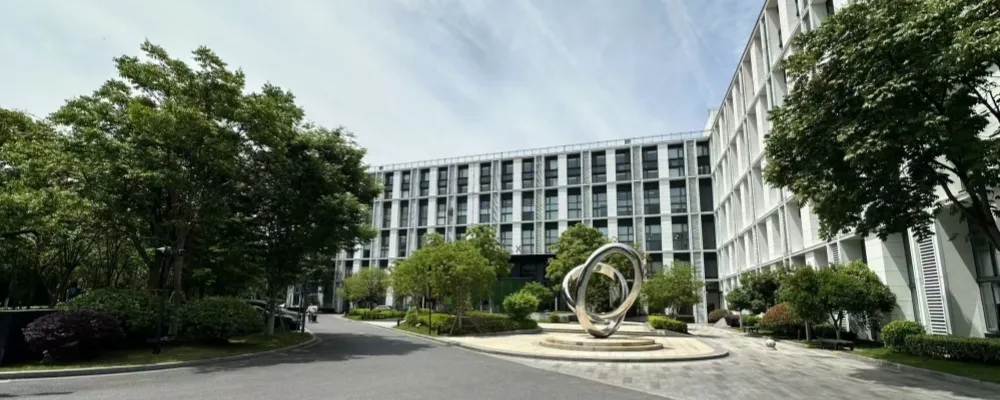

Production Facility

Professional Focus: One-stop orthopedic product solution provider since 2016.

Capacity: 10,000 units per month.

Global Reach: Exported to Southeast Asia, Middle East, Latin America, Africa, and Europe.

Factory Advantages:

  • Covers an area of 30,000 square meters.
  • High-end CNC machining equipment from the United States.
  • Advanced quality detection equipment from Japan.

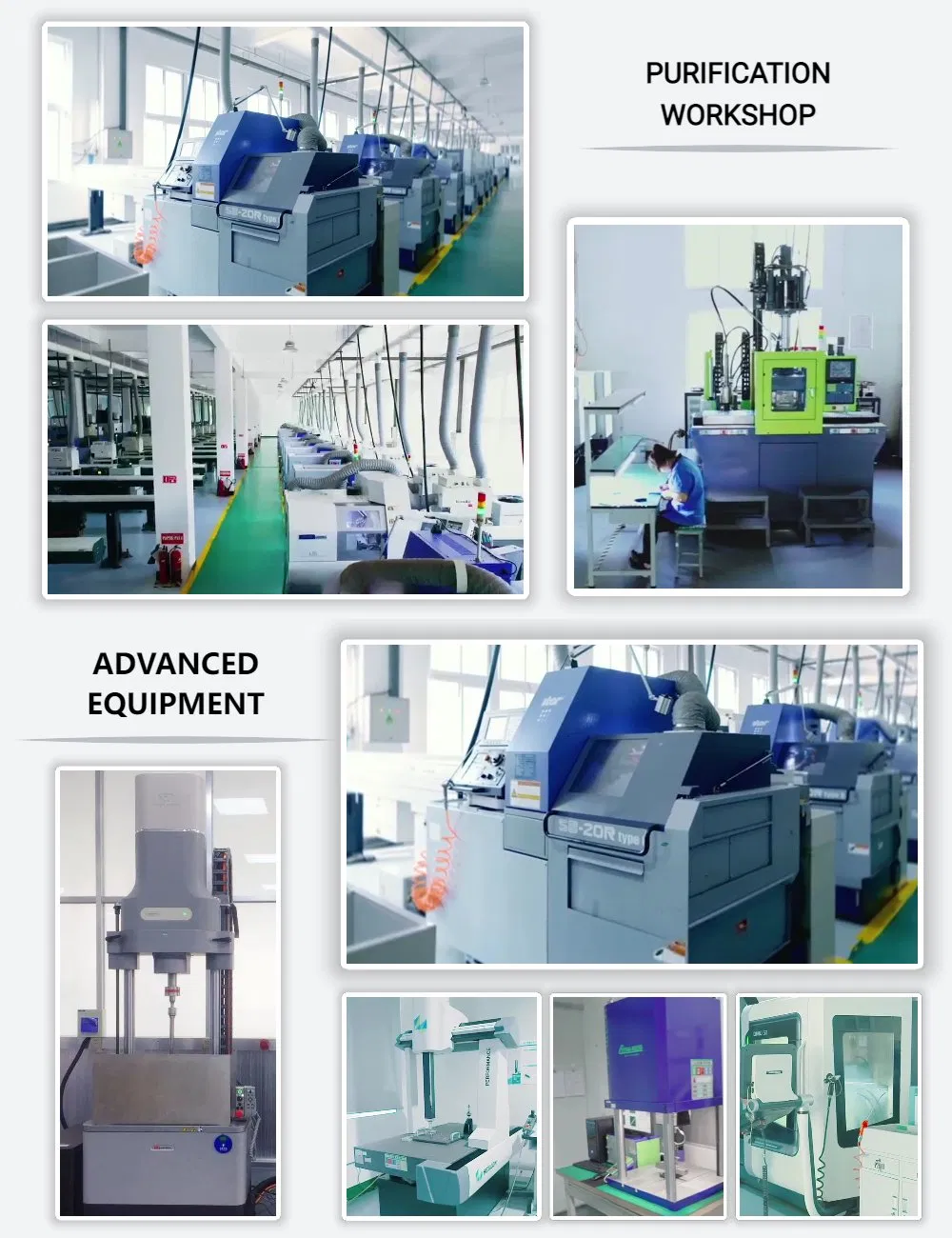

Manufacturing Process
Certifications & Exhibitions
Certifications Exhibitions
Frequently Asked Questions
Q1: Do you have ISO 9001 or ISO 13485 certifications?
A: Yes, we are an ISO 9001:2015 and EN ISO 13485:2016 Certified Company.
Q2: What are the shipping modes and charges?
A: Normally we send through DHL express or post upon request from clients. Charges depend on the destination and weight.
Q3: What is your standard delivery time?
A: Generally it is 15-30 days if the goods are in stock. For non-stock items, it takes 30-60 days depending on the quantity.
Q4: Do you provide product samples?
A: Yes, we could offer samples, though they are provided at an extra price.
Q5: What is the return policy for defective goods?
A: For defective goods, please send us clear pictures for confirmation, and we will provide a replacement.
Q6: Can you provide customized packing solutions?
A: Yes, we offer customized packing design services for both implants and instrument sets to meet client requirements.
